The Fusion ® is simple in design, yet advanced in its wastewater
treatment ability. The design has been refined over many years of
intense research and development in an effort to perfect this superior
treatment system. Fusion ® systems are 90% - 95% efficient at treating
wastewater. This is nearly twice as effective as a traditional septic tank,
which is approximately 50% efficient. This high degree of treatment
helps to protect both your personal property and the environment.
The Fusion ® utilizes a combination of anaerobic (without oxygen) and
aerobic (with oxygen) biological processes to treat wastewater. As
wastewater enters the Fusion ® , it is broken down and becomes food
for biological organisms operating within the unit. The first chamber
serves to separate some grease and large solids from the liquid. In
the second chamber, plastic media with large surface areas are used
to increase contact between water and beneficial bacteria to optimize
treatment. A small linear air blower is used to move air (oxygen) into
the third chamber for the aerobic process. The final effluent leaving the
system will have been treated to secondary quality effluent.
HOW A FUSION ® SERIES TREATMENT SYSTEM WORKS
Figure 2 - Schematic diagram of the Fusion ® Treatment System
Ｗ．Ｌ Ｗ．Ｌ Ｗ．Ｌ
Ｗ．Ｌ
INLET
3/4" AIRLINE ADAPTER
RECIRCULATION 1" AIRLINE ADAPTER
BACKWASH
2" RECIRCULATION
RETURN LINE
2" BACKWASH
RETURN LINE
OUTLET
28 * 21 *
* Risers not installed
TOP VIEW SIDE VIEW

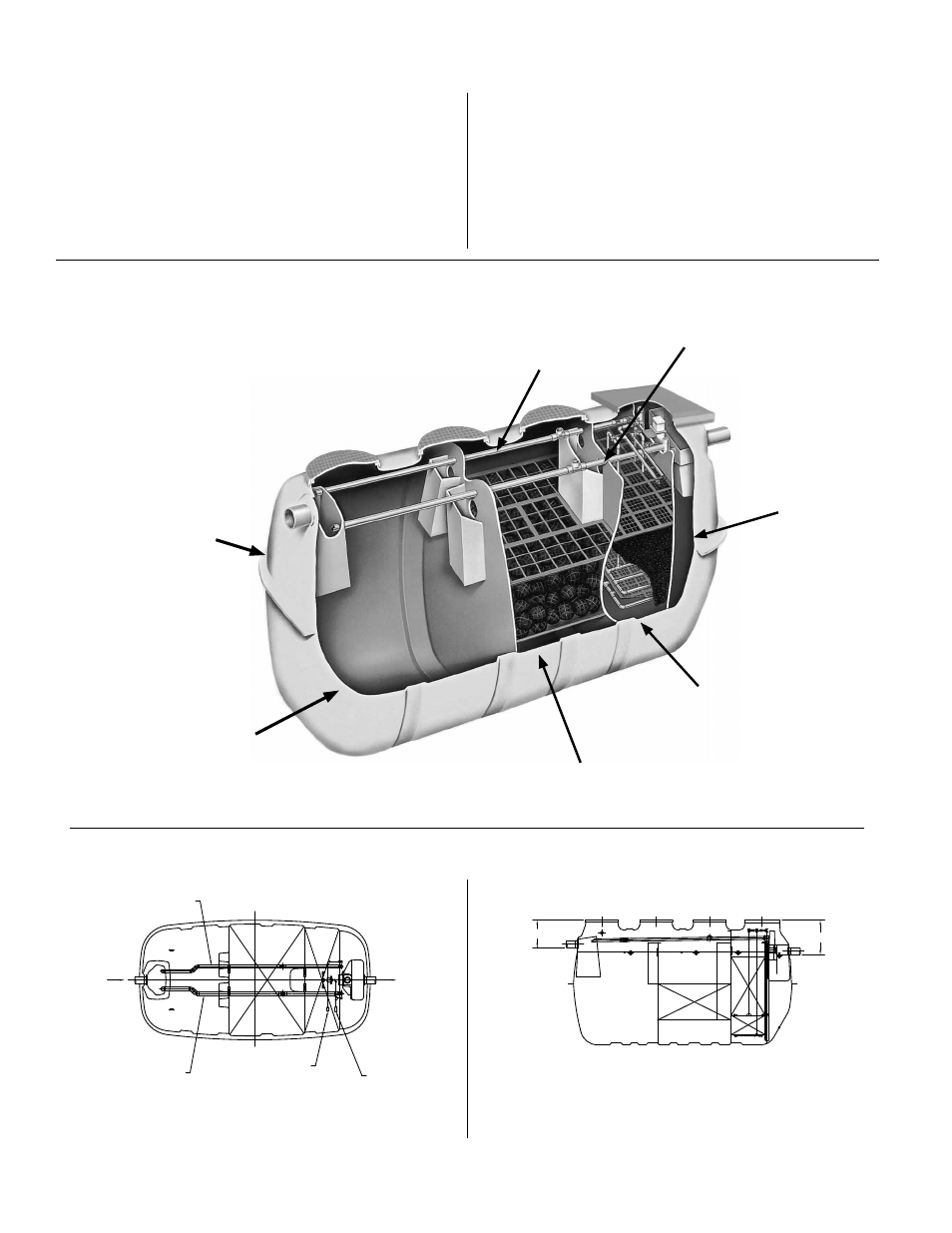

Figure 1 - The following diagram will help you to better understand the process:
Anaerobic Chamber -
Organisms adhere to fixed film
media and digest waste
Recirculation Line
Storage
Chamber
Tank -
Fiberglass
Sedimentation
Chamber -
Separates bulk solid
and grease waste
Aeration Chamber
Floating/Circulating
Filter Media -
“Fluidized Bed”
Invigorates aerobic bacteria
Sludge Return Line
