Section 1: Clarus Environmental Recirculating Media Filter
Gravity Discharge
SK2160B
NOTE: System specific drawing provided with each system.

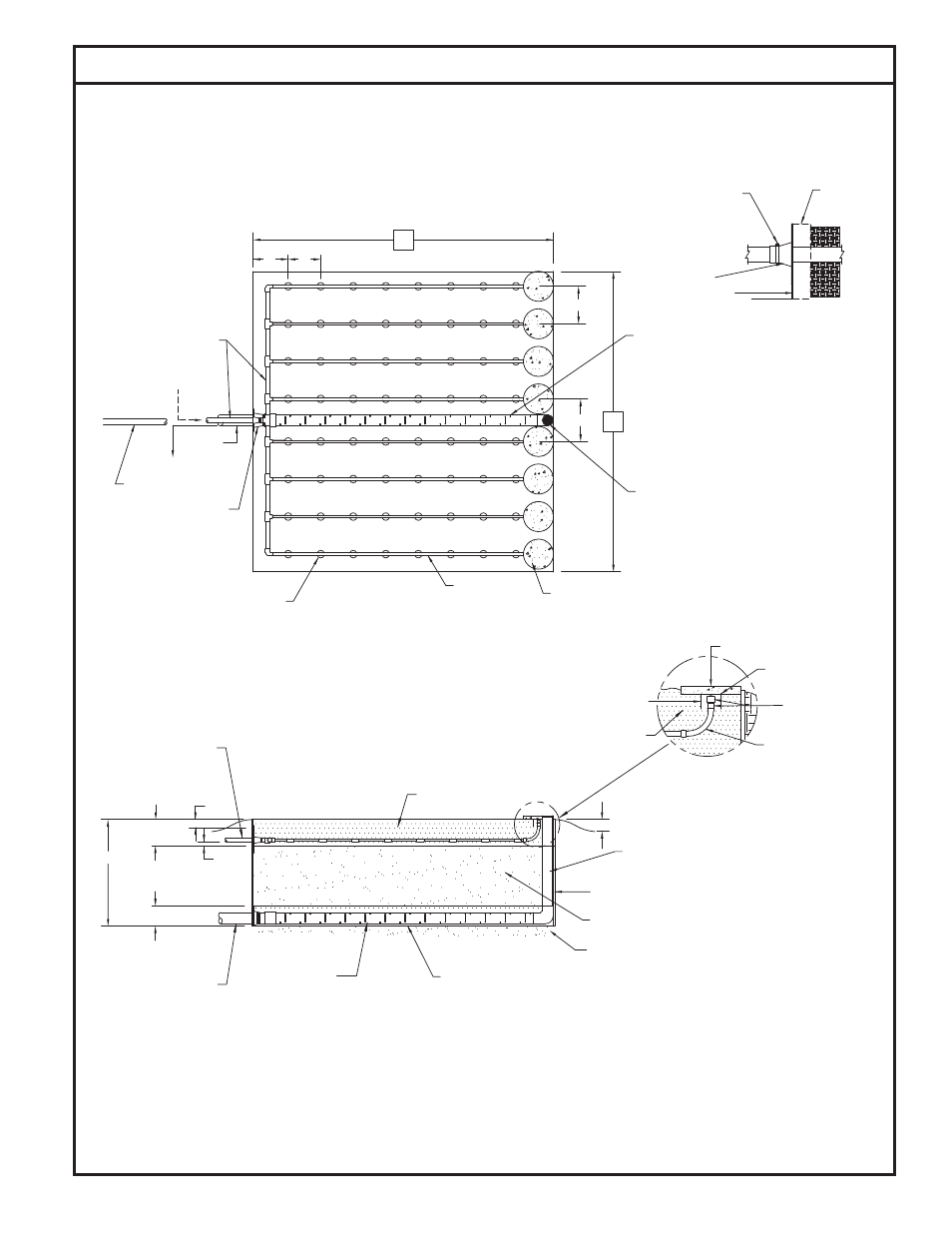

Figure 2:
ELEVATION VIEW
3/4" PVC PIPE
SEE PIPE SEAL DETAIL
CLARUS 3" ORIFICE SHIELD
PLAN VIEW
TO 80/20 TRU-FLOW SPLITTER
1 1/4" PVC PIPE
4" DRAIN
FROM DOSE TANK
PATIO STONE OVER
CLEANOUT AND RISER
17"
14" 13"
15"
LINER
FRAME
PIPE FROM PUMP MAY
NEED TO BE LARGER
PRESSURE TREATED WOOD OR CONCRETE FRAME
(SUPPLIED BY OTHERS)
FILTER MEDIA
NATIVE SOIL MUST BE SMOOTHED,
RAKED, COMPACTED, AND LEVELED
THROUGHOUT THE LENGTH AND WIDTH
4" BERM (MINIMUM)
PATIO STONE
CLEAN OUT RISER
90° SWEEP ELBOW
4" X 3" PVC RISER
MALE NPT ADAPTER & CAP
PROTECTIVE BARRIER
SCREENED VENT
PROTECTIVE BLANKET UNDER
45 MIL EPDM RUBBER LINER
8" OF 3/4" TO 1 1/2" DIAMETER
UNDER DRAIN MEDIA
24" OF
FILTER MEDIA
4" SLOTTED DRAINPIPE
42" MIN.
IN FROM DOSE TANK
TO 80/20 TRU-FLOW SPLITTER
PROTECTIVE BARRIER
11" MAXIMUM OF
3/4" - 1 1/2" DIAMETER
PEA GRAVEL
1.5"
3"
4" SLOTTED
DRAIN PIPE
SCREENED VENT
PIPE BOOT
ALL STAINLESS PIPE CLAMP
