Page 25
Title
Parts Manual
Rev 1.03A
Page 9

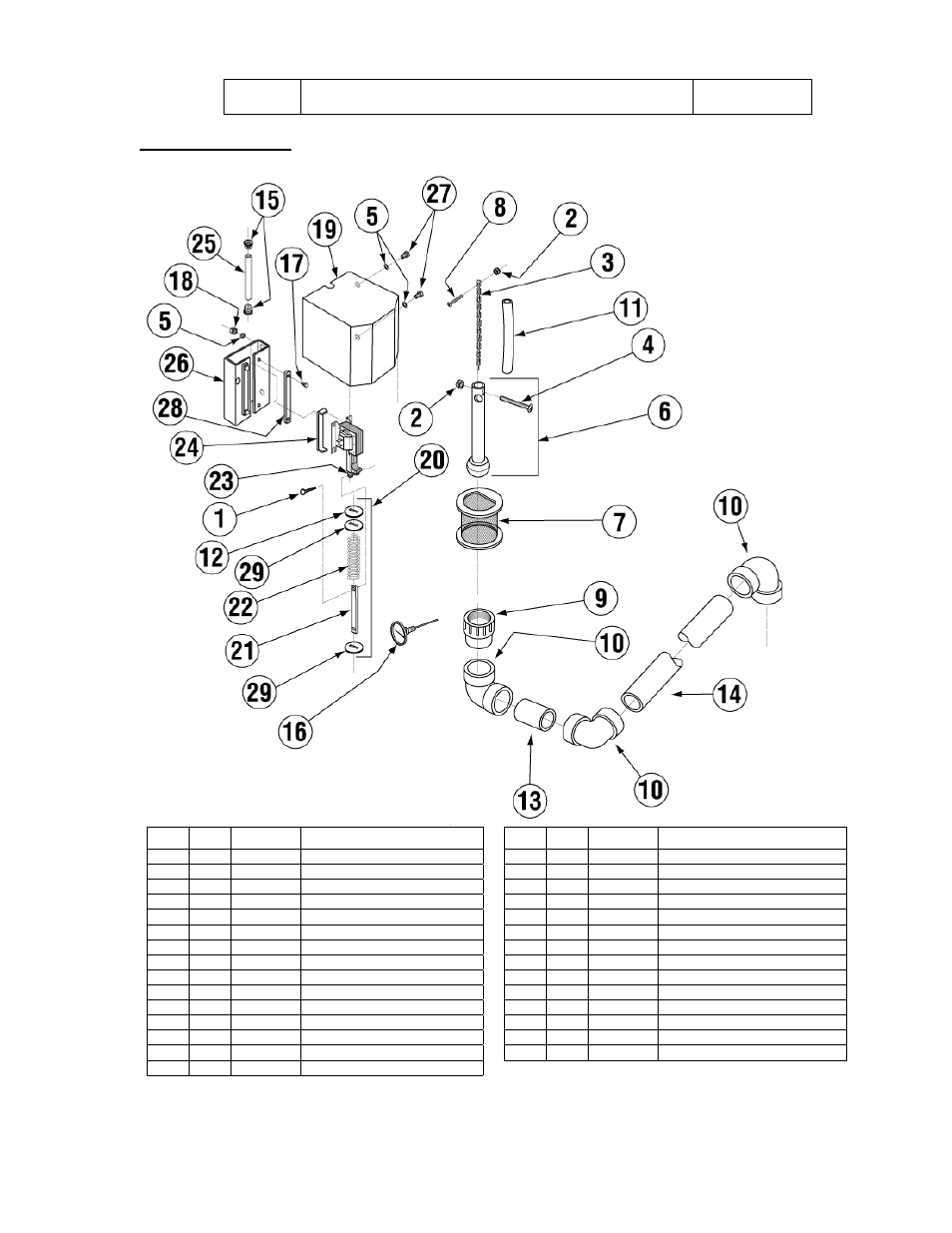

Drain System Assembly
Item
Qty
Part No
Description
Item
Qty
Part No
Description
01
1
00900.10
Cotter pin 1/8" X 1"
16
1
00120.02
Thermometer (Bi Metal)
02
2
00927.00
8-32 Nylon Lock Nut
17
4
00914.00
1/4-20 X 3/4 Hexhead Bolt
03
1
00110.07
Drain Ball Chain-12 Link
18
4
00915.00
1/4-20 SS Nut
04
1
00902.00
8-32 X 1 1/4 Panhead Bolt
19
1
01507.50
Solenoid Cover TM A/B/C
05
6
00922.00
1/4 Lock Star Washer
20
1
00122.00
Drain Solenoid Spring Assy.
06
1
00121.25
Drain Ball Assy
21
1
01551.00
Solenoid Link
07
1
00115.08
Drain Sump Screen
22
1
00105.00
Solenoid Spring
08
1
03812.00
8-32 X 5/8 Panhead Screw
23
1
00100.00
Drain Ball Solenoid 120V
09
1
01313.20
2" Spg X Fip Adapter
24
1
01550.00
Solenoid Stop
10
3
01312.20
2" Vent ELL Hub X Hub
25
1
00464.07
3/8 SS Tubing(TM A/B Sol Wire)
11
1
41019.11
1/2 ID X 11/16 OD Hose 9"L
26
1
00102.00
Solenoid Base
12
1
00105.20
Drain Solenoid Linkage Washer
27
9
00906.00
1/4-20 X 1/2 Hexhead Bolt
13
1
05030.22
Tubing 2" X 3 3/4"
28
2
00103.00
Solenoid Bar
14
1
05030.24
Tubing 2" X 13 ¾"
29
2
00106.00
Slot Washer Large-SS
15
2
00936.00
312-250 Shorty Bushing
