Title

Installation & Operation

Rev 1.02A

Page 11


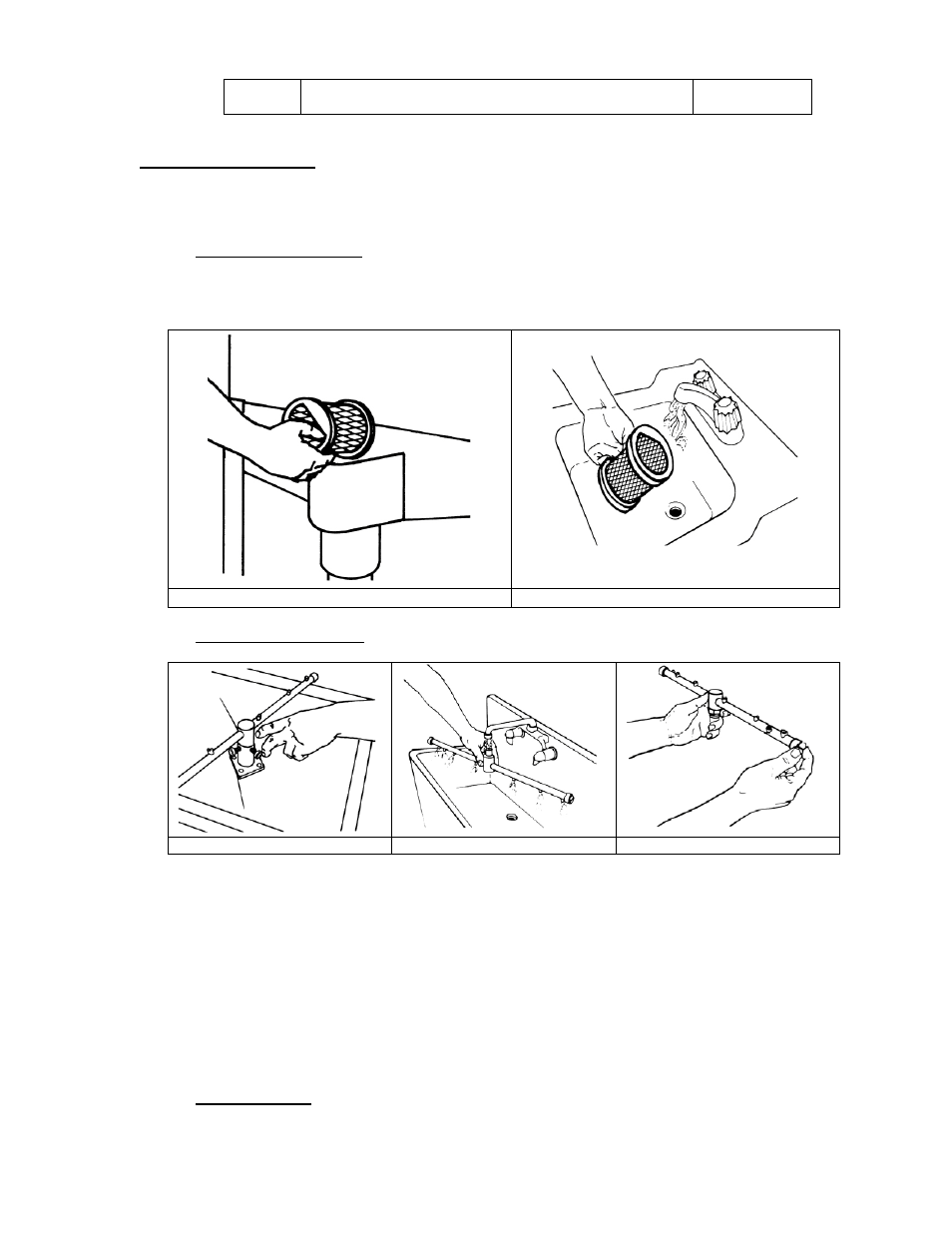

Cleaning and Maintenance

Certain times of the day should be allotted to cleaning dishwashing machine. Follow the cleaning and inspection
procedures listed below:

1. Cleaning the drain screen
Remove the drain screen and thoroughly clean all foreign material from screen as shown in the illustration.
DO NOT BANG THE SCREEN ON THE TABLE TO JAR FOOD LOOSE. Use the faucet or the pre-rinse
hose. Re-install drain screen and ensure that it is in the proper position.

REMOVE SCREEN

CLEAN SCREEN

2. Cleaning the washer arms

REMOVE WASH ARM

CLEAN WASH ARM

RE-INSTALL WASH ARM



Inspect the upper and lower spray arms to ensure they are not clogged with food scraps. Otherwise, full
and uniform spray pressures will not be delivered to the soiled dishes.

If there is any question as to the spray arms being clear of food scraps, the spray arms should be
removed and cleaned. Note that water will blow from all jets if they are open. Use toothpick to open
clogged jets and flush to ensure that food scraps are out of the arm. If necessary, the stainless plug in the
end of the arm can be unscrewed and removed to clean the inside of the arm tube at the sink.

After the arm has been thoroughly cleaned, re-install back into the base.


3. Check Operations

Operate the machine for one cycle. Watch detergent, sanitizer and rinse additive “delivery tubes” at the
point where they inject chemical into the machine. Remember: red tube – detergent; blue tube-rinse; and
clear white tube-sanitizer. Check temperature at the end of the cycle for 120

°

F minimum.
