Parts Manual
Rev 1.03A
Page 4

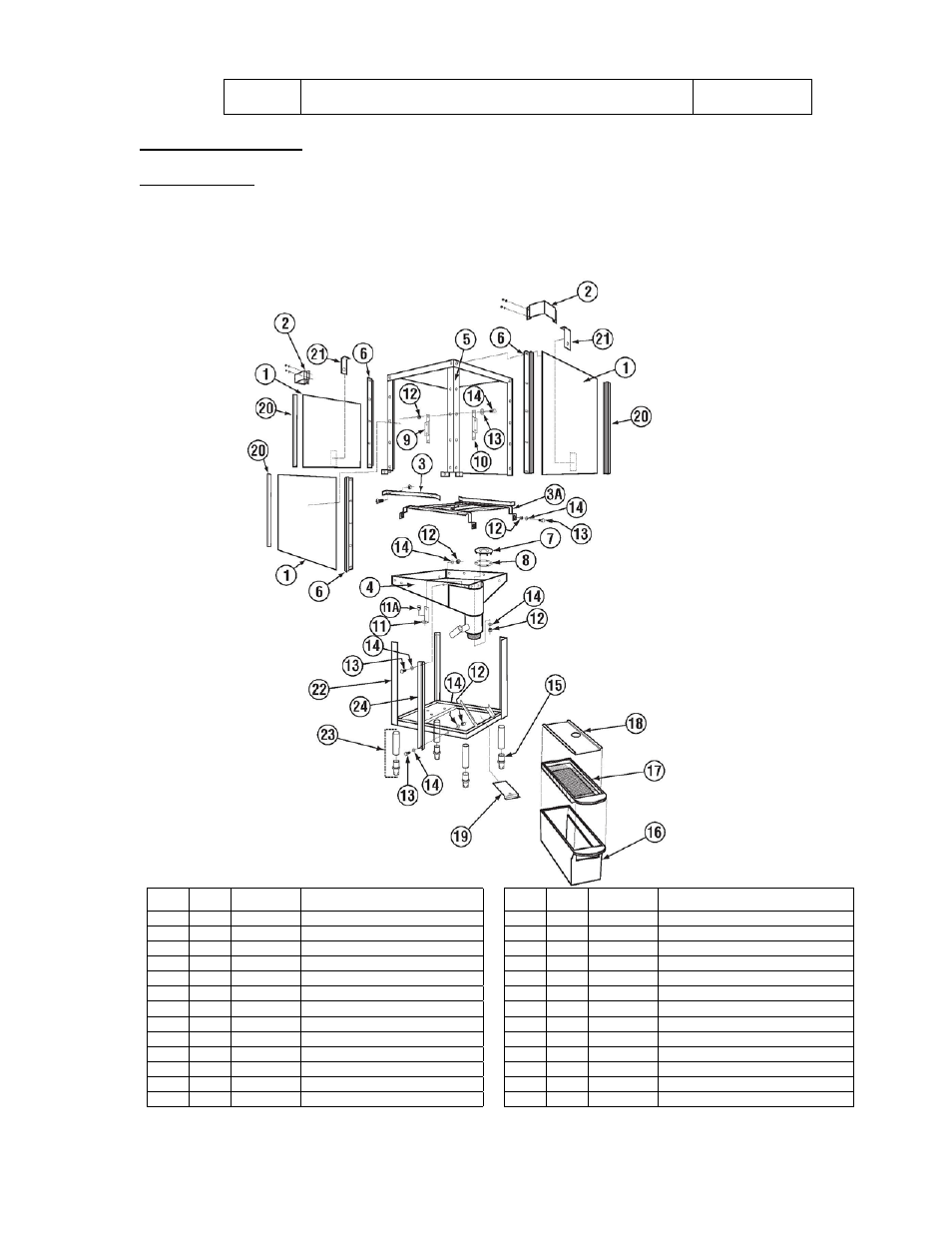

Exploded View Drawings
Cabinet Assembly
Item Qty Part No Description Item Qty Part No Description
01 3 01506.45 Door Standard (Blanks) 12 31 00912.00 1/4-20 Nylon Lock Nut
02 2 01516.50 3-Door Bracket outside Style 13 4 00906.00 1/4-20 X 1/2 Hexhead Bolt
03 1 01505.16 Corner Tray Track Bolt On Rail 14 9 00924.00 1/4 SS Washer
03a 1 01505.10 Tray Track 15 4 01310.20 Bullet Foot Plastic
04 1 01502.70 Pan - Bolt On No Legs 16 1 01577.10 Molded Scrap Trap Body - New
05 1 01510.40 Wrapper 17 1 01577.21 S/S Scrap Trap Drawer
06 6 01554.30 EZ Glide Door Guide SS 21 1/8" 18 1 01577.30 Molded Scrap Trap Lid - SS
07 1 00124.65 Drain Ball Seat 19 1 01577.50 Molded Scrap Trap-Mount Bracket
08 1 00125.10 Drain Sump Gasket 20 6 00636.10 EZ Glide Door Guide Sq 21 7/8”
09 1 00101.20 Solenoid Bracket C LH 21 2 17552.00 Door Stop
10 1 00101.10 Solenoid Bracket C RH 22 1 01502.75 E Stand - Bolt On No Legs
11 1 01558.20 Chem. Support Bracket 23 4 01145.00 Leg Assy. w\Adjustable Socket
11a 3 00427.00 Snap Bushing 375-4 24 1 01570.24 Pan Support Bracket - C long
