15 DIGITAL VIDEO RECORDER

II. INSTALLATION & CONNECTIONS

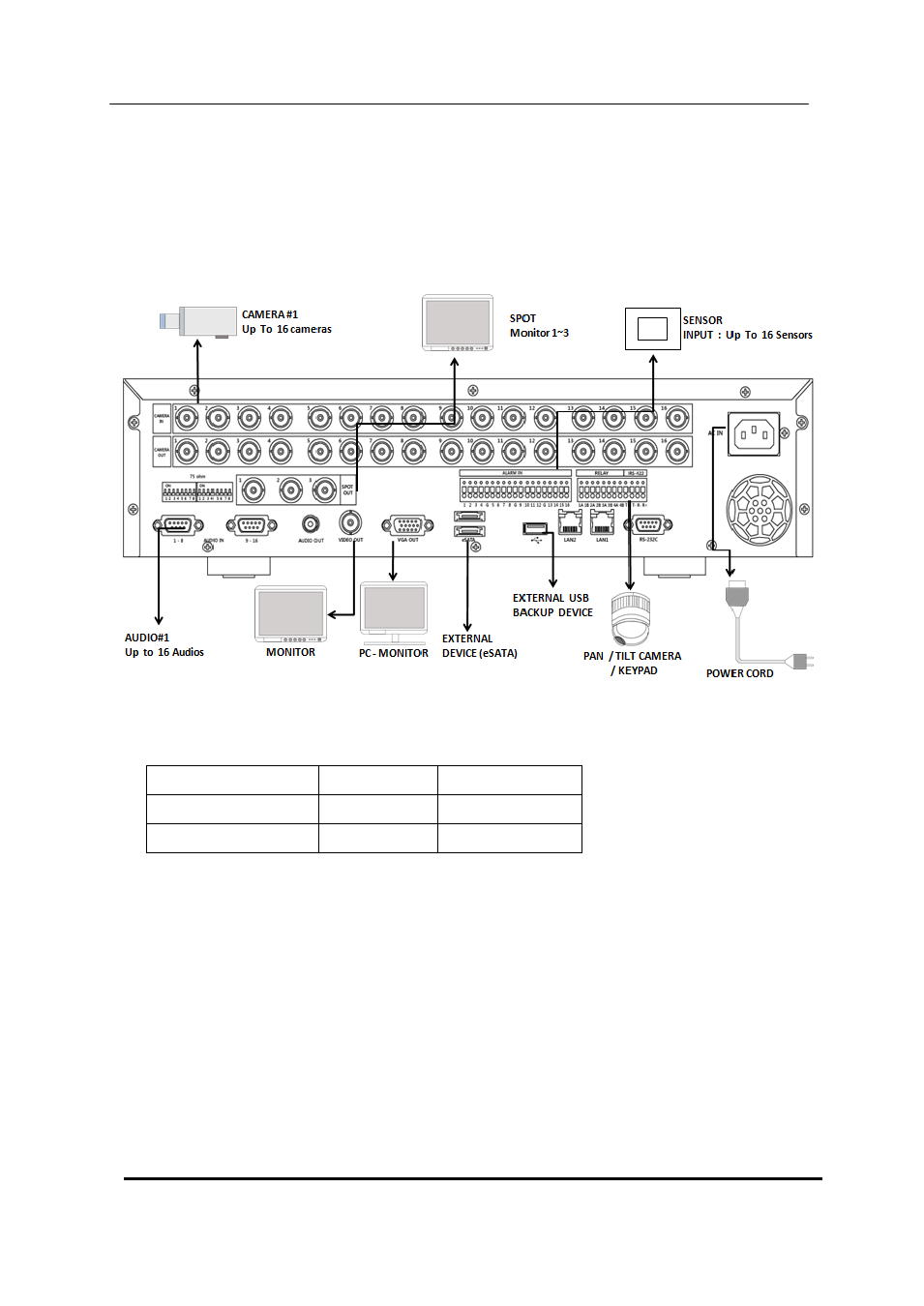

1. Camera, Monitor, Audio, Alarm sensor and Power cord

 Audio

Audio

Input

Output

impedance (0 dB)

10 k Ohm

300 ohm

voltage range

1 Vpp

1.4 Vpp
