Allen & Heath User Guide for XONE:DX with Serato ITCH 1.7 64

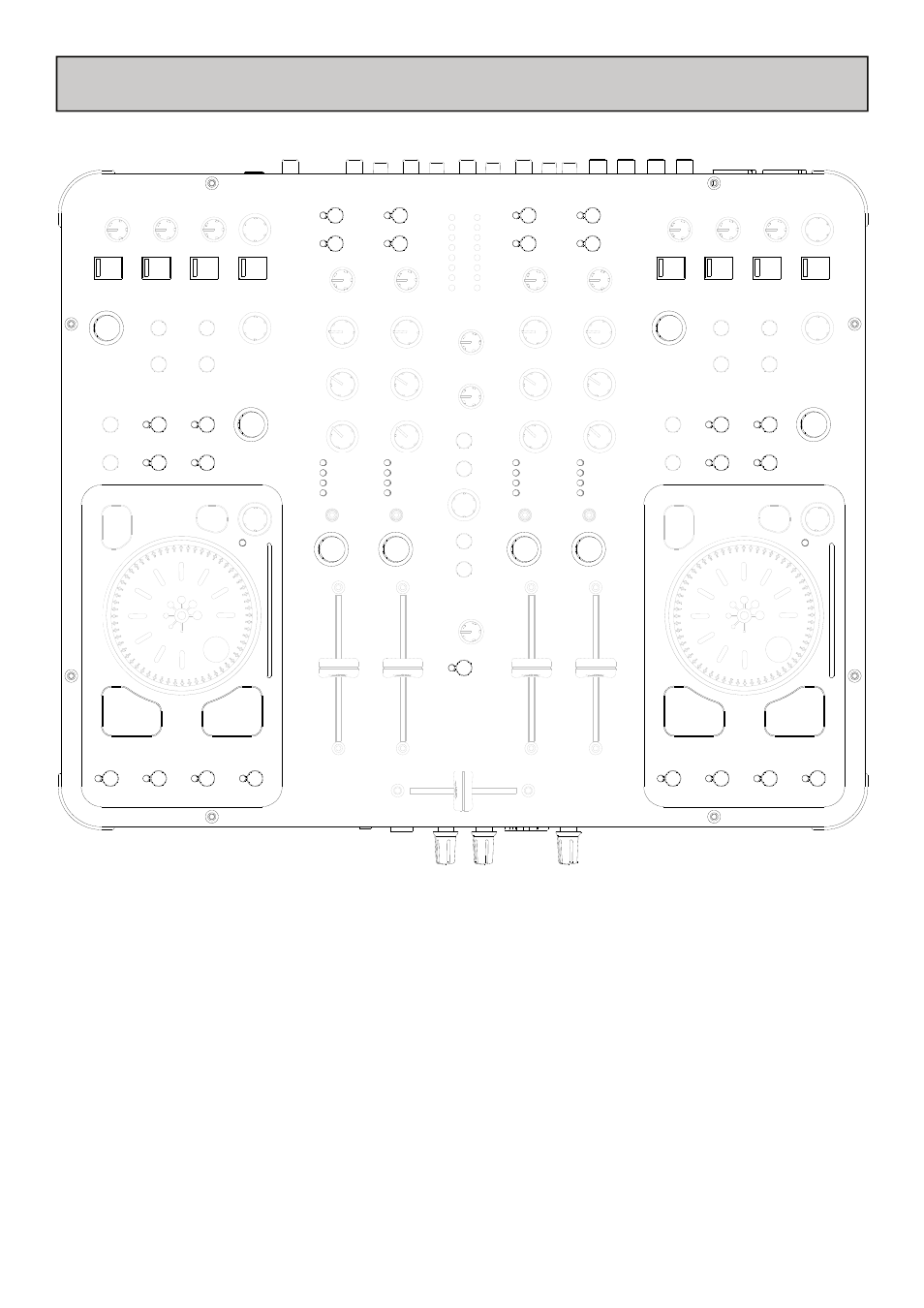

MIDI RETURN VALUES
C#-1 D-1 Eb-1 F-1
F#-1 B-1 A0 D1
G-1 C0 Bb0 Eb1
G1 G#1 A1 B1
Bb-1 Eb0 C#1 F#1
C2
C#-1
G-1 C0 E0
G#-1 C#0
F0
G#0 G0
E-1 A-1 D0 F#0
C#-1
G-1 C0 E0
G#-1 C#0
F0
G#0 G0
E-1 A-1 D0 F#0
CC31 CC31
CC17 CC4 CC7 CC25
RED Layer Channel 13
GREEN Layer Channel 14 RED Layer Channel 15
GREEN Layer Channel 16
MIXER / FX
Channel 12
The LED’s on the Xone:DX can be turned On and Off via MIDI messages that are received from soft-
ware. In the case of a switch state, a ‘Note On’ message will turn an LED ON and the corresponding
‘Note Off’ message will turn an LED OFF. A ‘Note On’ message with a velocity of zero is seen as a ‘Note
Off’. The messages that illuminate the LED’s in the virtual decks are differentiated by MIDI Channel num-
ber.
PITCH DISPLAY - The pitch display is controlled via a ‘Control Change’ message where MIDI value 63
will be the centre point when no pitch adjustment has been made. MIDI Value 0 and 127 will be the ex-
tremities of + and - pitch adjustment.
CHANNEL METERS - The Channel Meters are controlled via a ‘Control Change’ message where
MIDI value 0 relates to no signal and MIDI value 127 relates to full-scale signal.
