Allen & Heath
18
XONE:3D User Guide
FILTER / XFADE SELECT
1
2
OFF
DC
F
ILT
E
R
1 MIX
B
U
S
F
ILT
E
R
2 MIX
B
U
S
M
A
IN
LR
M
IX
BU
S
FILTER 1 MIX
FILTER 2 MIX
X
Y
CROSSFADER
X
FILTER 1
FILTER 2
Y
XFADE CURVE
XFADE ON
VCA
VCA
LFO DEPTH
TAP TEMPO
FROM INPUT CHANNEL
FILTER 1 ON
XFADE CURVE
1
2
LPF
FREQ
BPF
RES
1+ 2
HPF
ON
XFADE
TEMPO
TAP
DEPTH
LFO
FX2
RTN
FX1
RTN
20Hz
20kHz
X
Y
ASSIGN
MILD
WILD
6
4
5
2
1
0
4
3
5
3
1
2
0
8
9
10
7
6
7
9
8
10
3
2
0
1
4
5
7
8
10
9
6

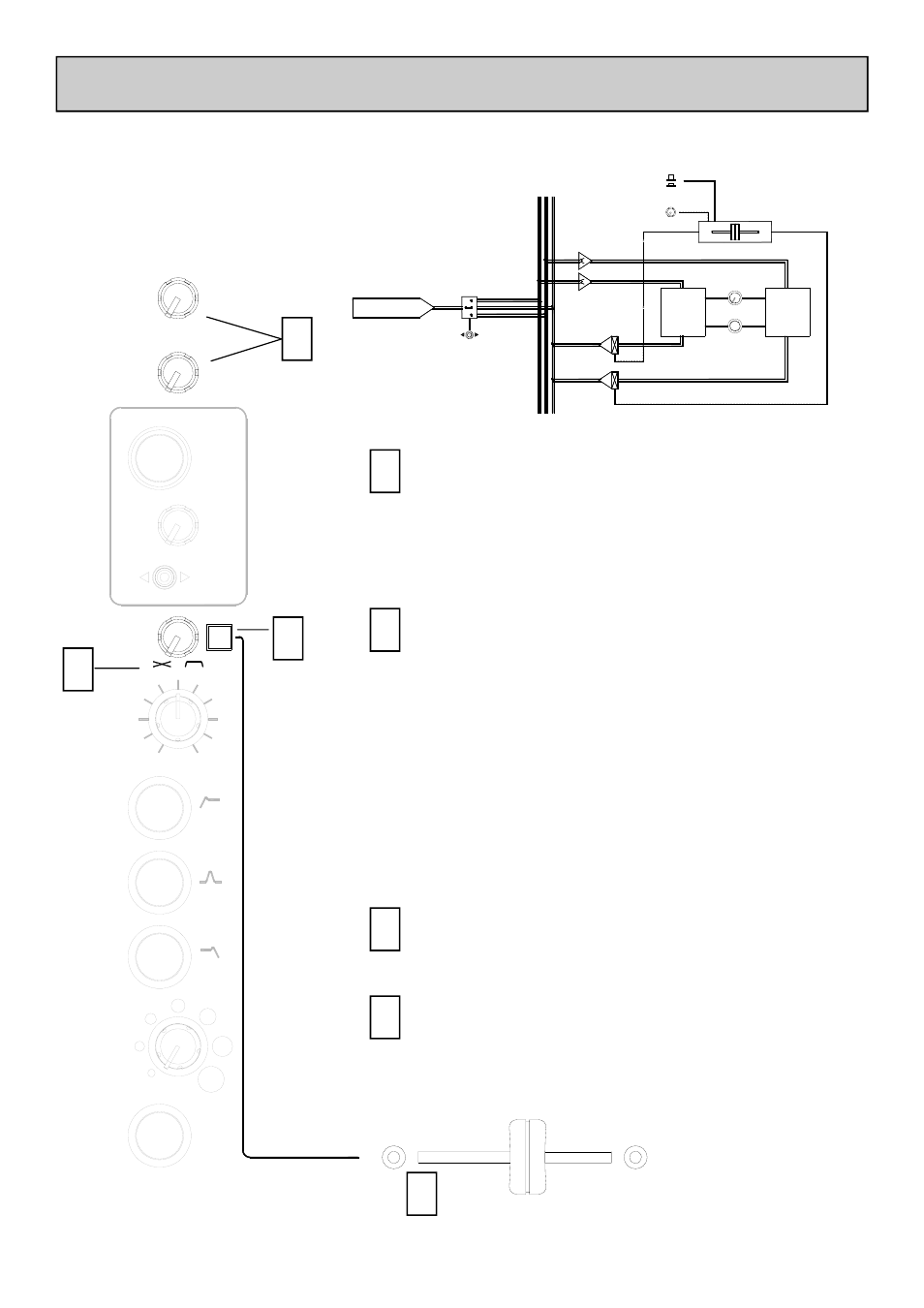

MIXER SECTION — FX RTN & CROSSFADER
1
4
FX Return Controls
These controls route the incoming signal
from the stereo FX1 and FX2 Return RCA
connectors on the rear panel to the mix.
They adjust how much return signal is
added to the mix.
1
Crossfader
This lets you fade between signals routed to
either side, typically to fade smoothly into a
new music track or to creatively layer
sounds when scratch or cut mixing.
The crossfader is a VCA controller which
affects the level of signals routed via the
filters. Make sure the toggle switches on the
channels you wish to fade are set to X or Y
as appropriate.
Please contact your Allen and Heath
approved service centre for crossfader
service or replacement.
2
Xfade on switch
Press this switch to activate the crossfader.
3
3
2
XFade Curve Control
This control adjusts the crossfader curve
between dipped response, ideal for seamless
beat mixing, and fast-attack, suitable for
scratch or cut mixing .
4
