MIXER SECTION — MIX AND MONITOR
1
2
3
4
5
6
7

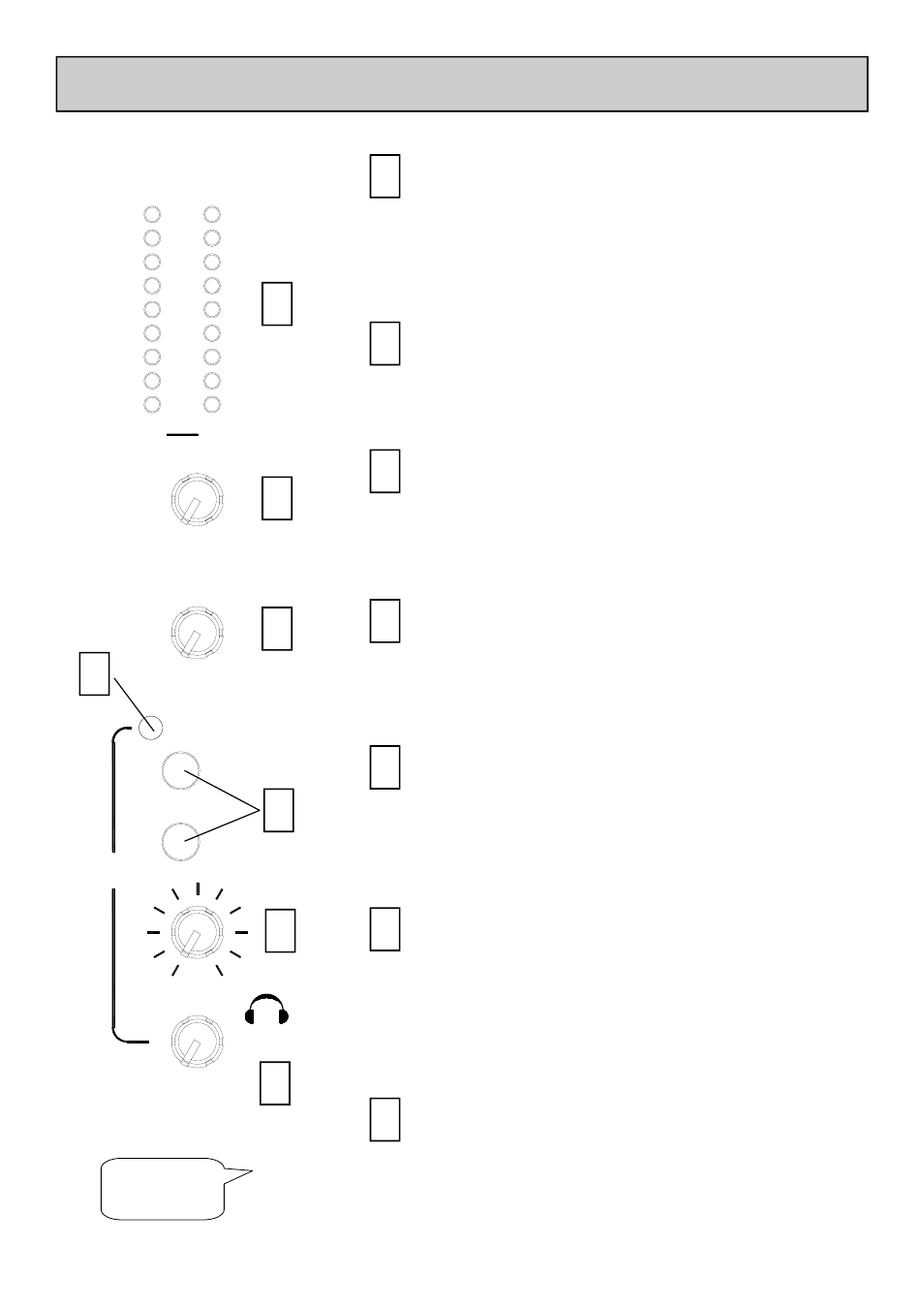

Mix / Monitor Meters
The main meters follow the selected
monitor source. The meter reads ‘0’ for
an XLR output of +4dBu. The mixer
should be operated with these meters
averaging around ‘0’ with loudest peaks no
higher than ‘+6’.
1
Mix Master Level Control
A rotary master control adjusts the level of
the main mix XLR outputs feeding the house
sound system. This does not affect the
monitor output or the meter reading.
2
Monitor Master Level Control
Adjusts the level of the signal to the stereo
monitor RCA output. This does not affect
the headphones. The monitor output could
be used for a booth monitor, recording or
an additional zone feed.
3
Cue Active LED
A large red led indicator lights when a
channel CUE is active. This indicates that
the selected channel CUE signal is heard in
the headphones and displayed on the
monitor meters.
4
Monitor Select Switches
In the normal up position the headphones
and meters monitor the pre-level main mix.
Press these switches to select either of the
stereo FX mixes as the headphones and
meter source. Note that this does not affect
the main mix or monitor outputs.
5
Cue / Add Mix Control
Allows the main mix output to be added to
the CUE signal. Turned fully anticlockwise,
only the active CUE signal is heard through
the headphones when selected. Gradually
turning clockwise introduces the main mix
output to the headphones, adding to the ac-
tive CUE. This does not affect the meters.
6
Headphones Level Control
Adjusts the level of the headphones signal.
7
82!
Warning ! To avoid damage to your hearing do not operate the
headphones or sound system at excessively high volume. Continued
exposure to high volume sound can cause frequency selective or wide
range hearing loss.
