Introduction
Physical Details
Front-mounted LEDs

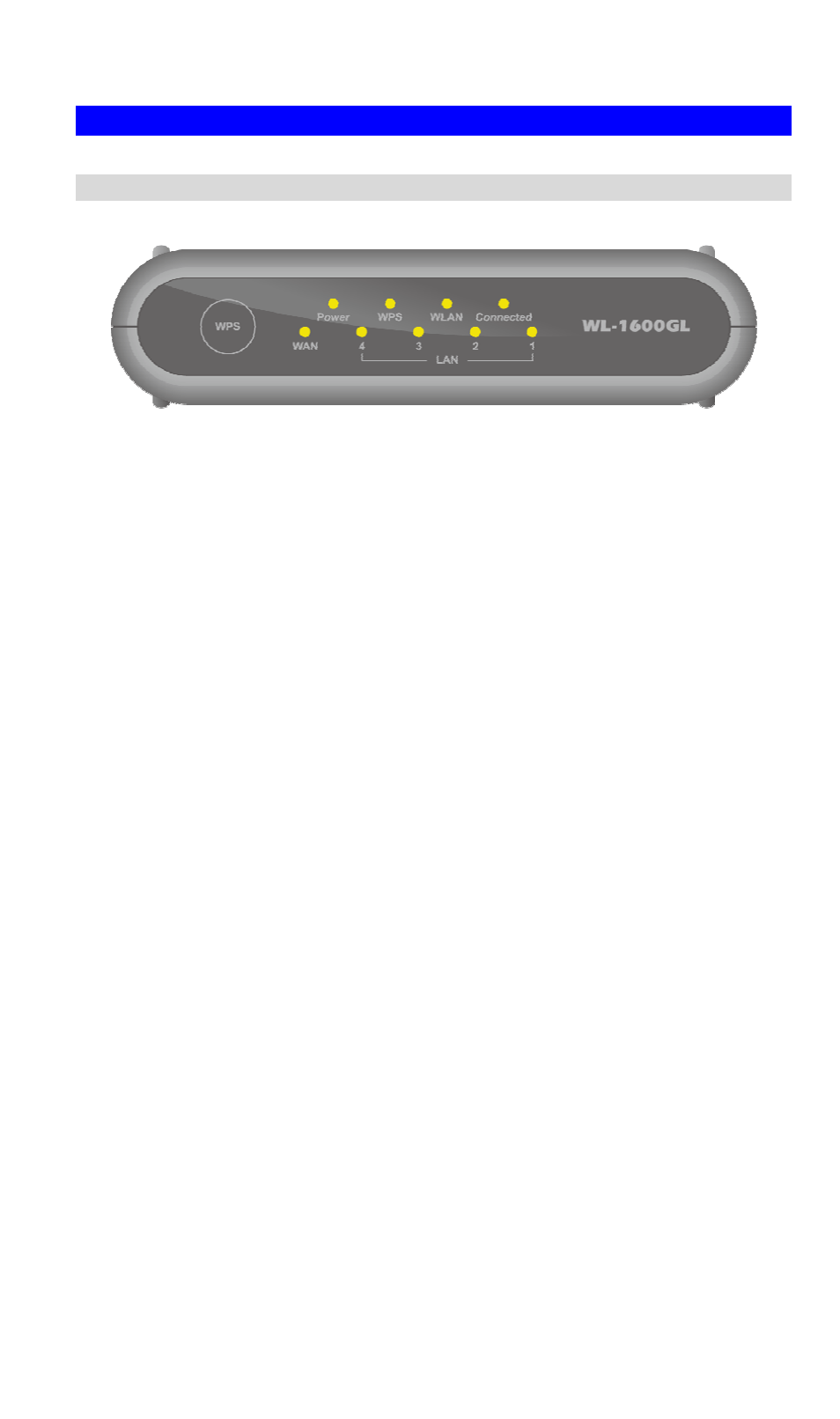

Figure 2: Front Panel
Power LED On - Power on.
Off - No power.
WLAN LED On - Idle.
Off - Error - No Wireless connection available.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
Internet LED On - Internet connection is available.
Off - No Internet connection available.
Flashing - Data is being transmitted or received.
WAN LED On - Connection to the Broadband Modem attached to the WAN (Inter-
net) port is established.
Off - No connection to the Broadband Modem.
Flashing - Data is being transmitted or received via the WAN port.
WPS Button
• Press for the WPS Connection
LAN LEDs For each port, there are 1 LED
• 10 (Orange)/100 (Green)
• On - Corresponding LAN (hub) port is active.
• Off - No active connection on the corresponding LAN (hub) port.
• Flashing - Data is being transmitted or received via the corre-
sponding LAN (hub) port.
