75
Chapter 7
QoS
By configuring the QoS, you can control the OutBound and InBound
Upstream/Downstream Bandwidth. The administrator can configure the
bandwidth according to the WAN bandwidth.
Downstream Bandwidth ：To configure the Guaranteed Bandwidth and Maximum
Bandwidth.
Upstream Bandwidth ：To configure the Guaranteed Bandwidth and Maximum
Bandwidth.
QoS Priority ：To configure the priority of distributing Upstream/Downstream and
unused bandwidth.
The RS-1200 configures the bandwidth by different QoS, and selects the suitable
QoS through Policy to control and efficiently distribute bandwidth. The RS-1200
also makes it convenient for the administrator to make the Bandwidth to reach
the best utility. (Figure7-1, 7-2)

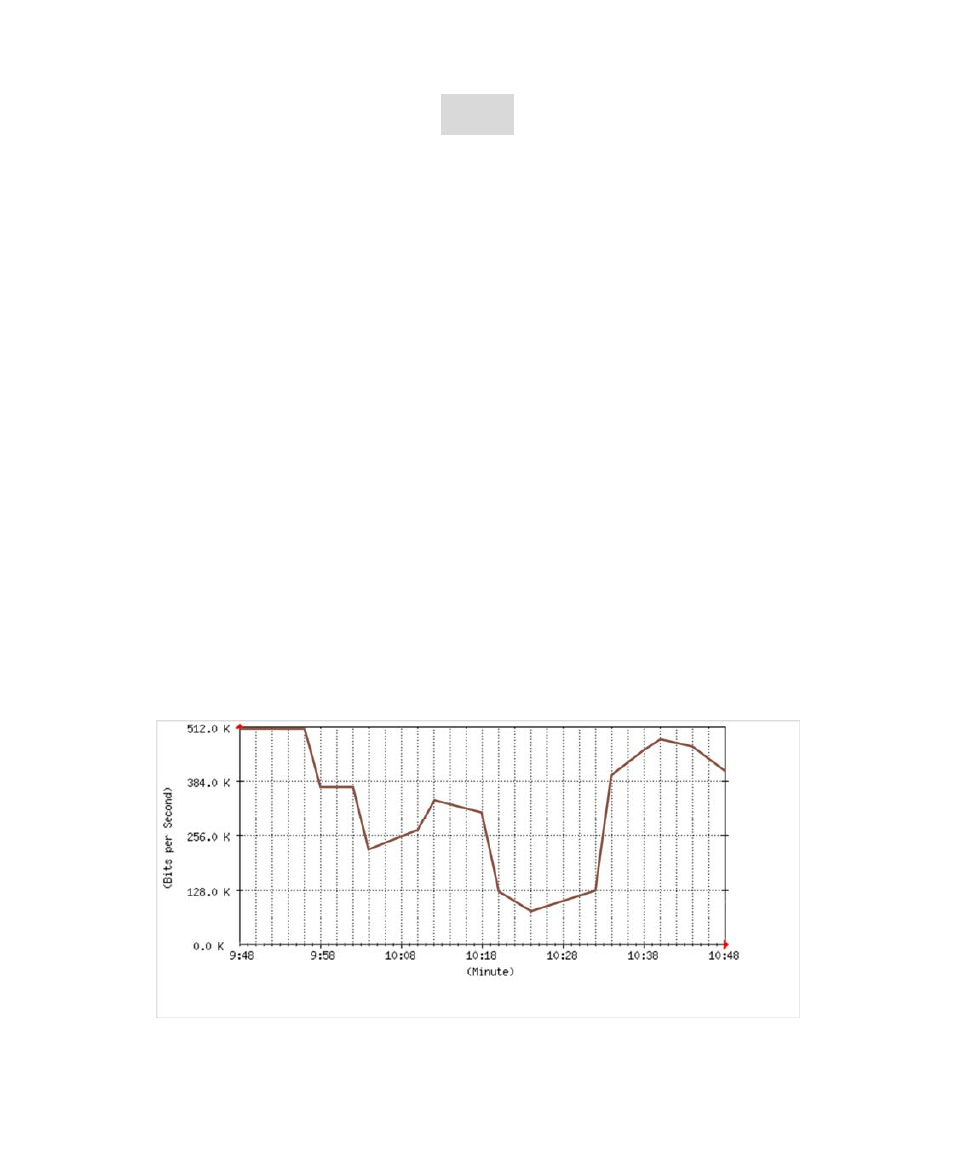

Figure7-1 the Flow Before Using QoS
