112
Make several servers that provide a single service, to provide
service through policy by Virtual Server (Take Web service for
example)
STEP 1﹒ Setting several servers that provide Web service in LAN network, which IP
Address is 192.168.1.101, 192.168.1.102, 192.168.1.103, and
192.168.1.104
STEP 2﹒ Enter the following data in Server 1 of Virtual Server function:
„ Click the button next to Virtual Server Real IP (“click here to
configure”) in Server 1
„ Virtual Server Real IP: Enter 211.22.22.23 (click Assist for assistance)
„ Click
OK (Figure10-7)

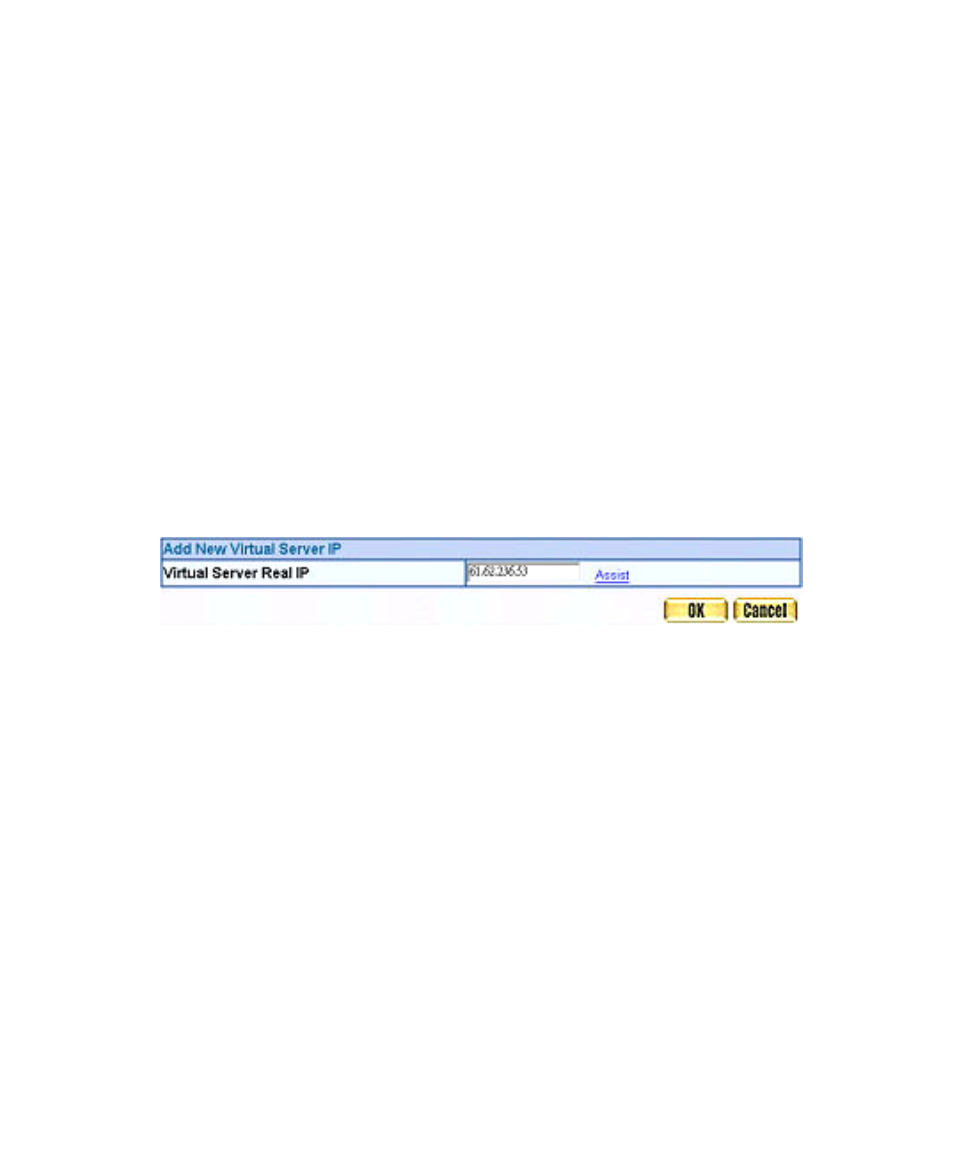

Figure10-7 Virtual Server Real IP Setting
„ Click New Entry
„ Service: Select HTTP (80)
„ External Service Port: Change to 8080
„ Load Balance Server1: Enter 192.168.1.101
„ Load Balance Server2: Enter 192.168.1.102
„ Load Balance Server3: Enter 192.168.1.103
„ Load Balance Server4: Enter 192.168.1.104
„ Click OK
„ Complete the setting of Virtual Server (Figure10-8)
