AirLive RS-1200 User Manual

Page 138

138

The Default Gateway of Company B is the LAN IP of the RS-1200

192.168.20.1. Follow the steps below:

STEP 1.

Enter the following setting in Multiple Subnet of System Configure

function: (Figure11-19)

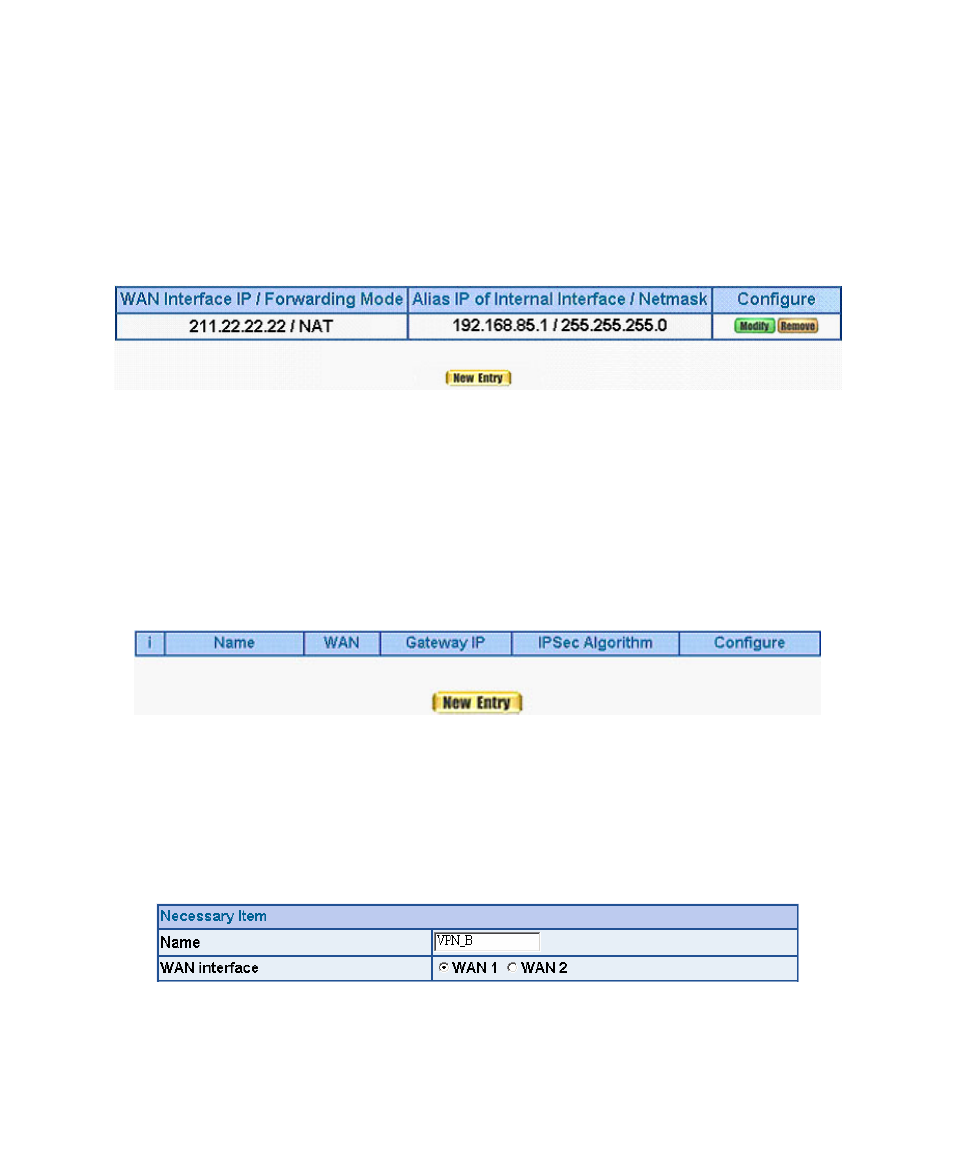

Figure11-19 Multiple Subnet Setting

STEP 2.Enter the default IP of Gateway of Company B’s RS-1200,

192.168.20.1 and select IPSec Autokey in VPN. Click New Entry.

(Figure11-20)

Figure11-20 IPSec Autokey Web UI

STEP 3.

In the list of IPSec Autokey, fill in Name with VPN_B. (Figure11-21)

Figure11-21 IPSec Autokey Name Setting
