27 AirLive OD-300CAM User ’s Manual

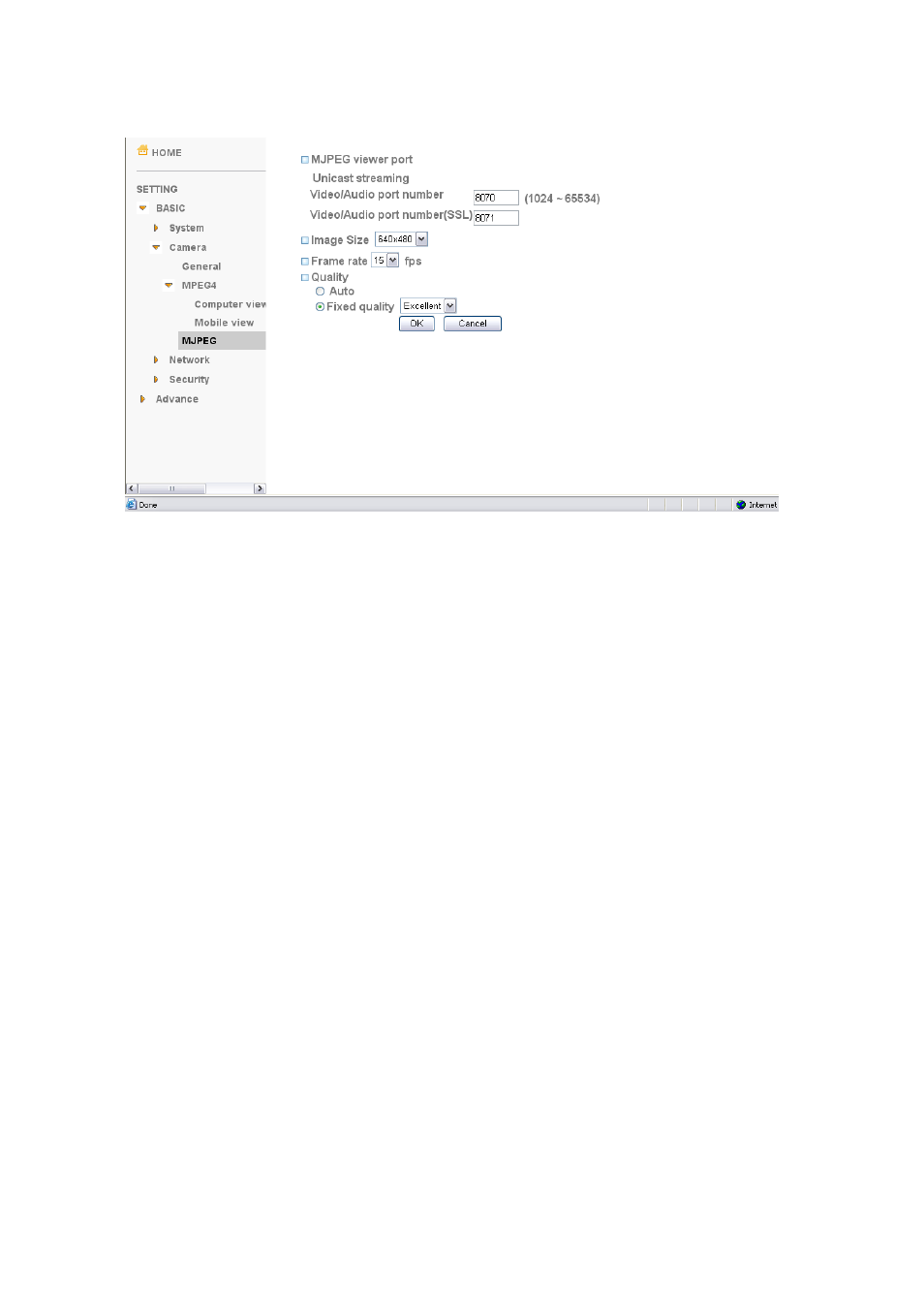

5.2.3MJPEG
 MJPEG Viewer Port:
 Unicast Streaming Video / Audio Port Number: Specify the transmission port number of the
video data. It is initially set to 8070. You can specify an even number from 1024 to 65534.
 Image Size: Specify the image size when the network camera transmits. You can choose among
704 x 480, 352 x 240, and 176 x 120 for NTSC mode or 704 x 576, 352 x 288, and 176 x 144 for PAL
mode.
 Frame Rate: Set the frame rate of the MJPEG image. You can choose values from 5, 10, 15 fps.
The unit “fps” stands for “frames per second”.
 Quality:
 Auto: The quality will be automatically decided.
 Fixed Quality: You can select the value of quality among Medium, Standard, Good, Delicate
and Excellent.
