AirLive OD-300CAM User ’s Manual 26

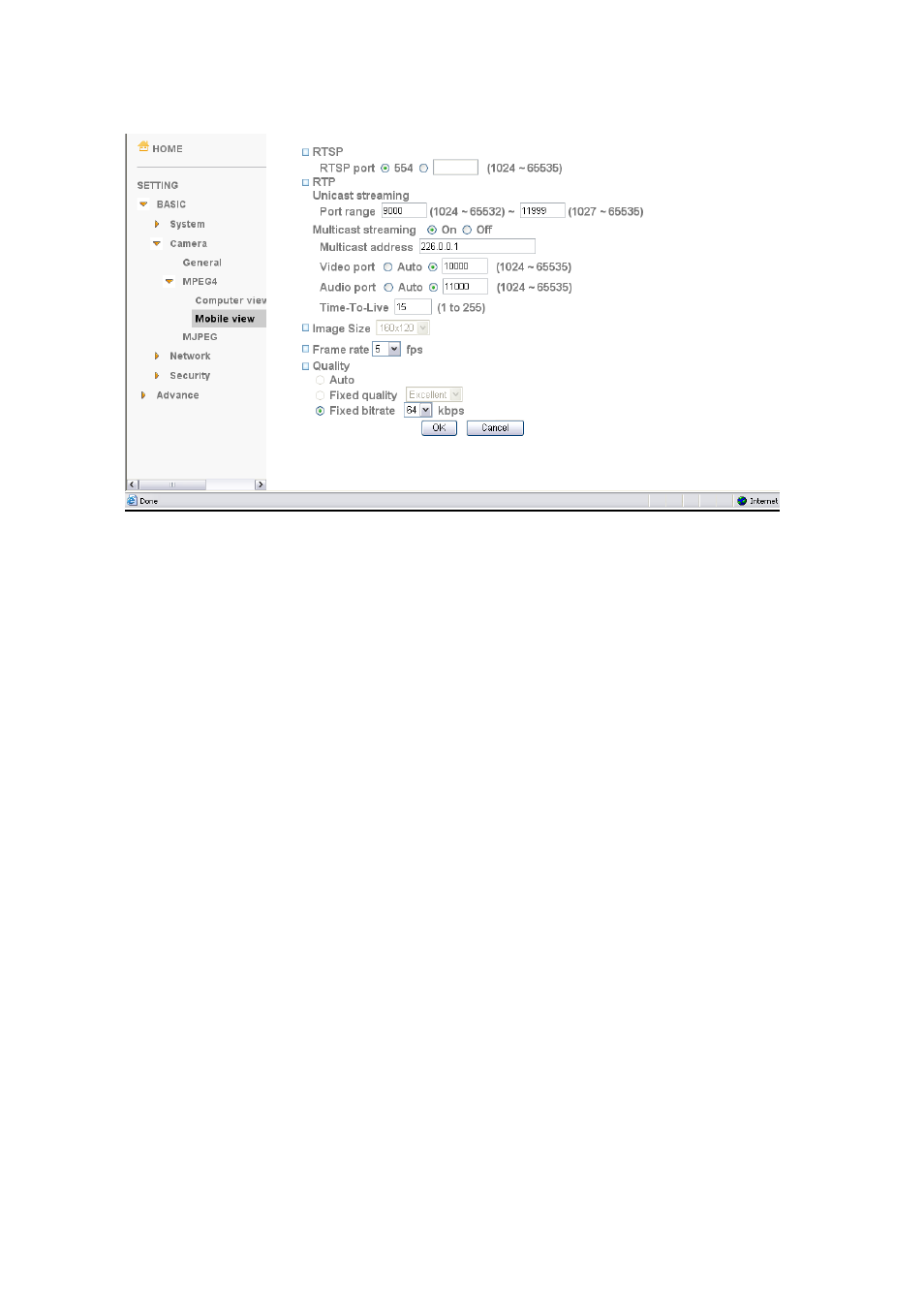

B. Mobile View
 RTSP ((if RTSP mode is On, Please check “Setting → Basic → Camera →General”)
 RTSP Port: Specify the transmission port number of RTSP streaming. The default value is 554.
 RTP (if RTSP mode is On, Please check “Basic → Camera → General ”)
 Unicast Streaming Video / Audio Port Range: Specify the transmission port range of RTP
streaming video. RTP will select a port randomly from the range.
 Multicast Streaming (If it is On)
 Multicast Address: Specify the multicast server address.
 Video / Audio Port: Specify the transmission port number of the video data. It is initially
set to 10000 and 11000. Specify an even number from 1024 to 65534.
 Time to Live: Set the maximum TTL that multicast can pass through.
 Image Size: The image size of Mobile View is fixed at 160 x 120.
 Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10, 15, 20
fps. The unit “fps” stands for “frames per second”.
 Quality:
 Fixed Bitrate: Set the bitrate of MPEG4 image transmission for a line. You can select the value
from 64, 32, 16 kbps.
