AirLive OD-300CAM User ’s Manual 24

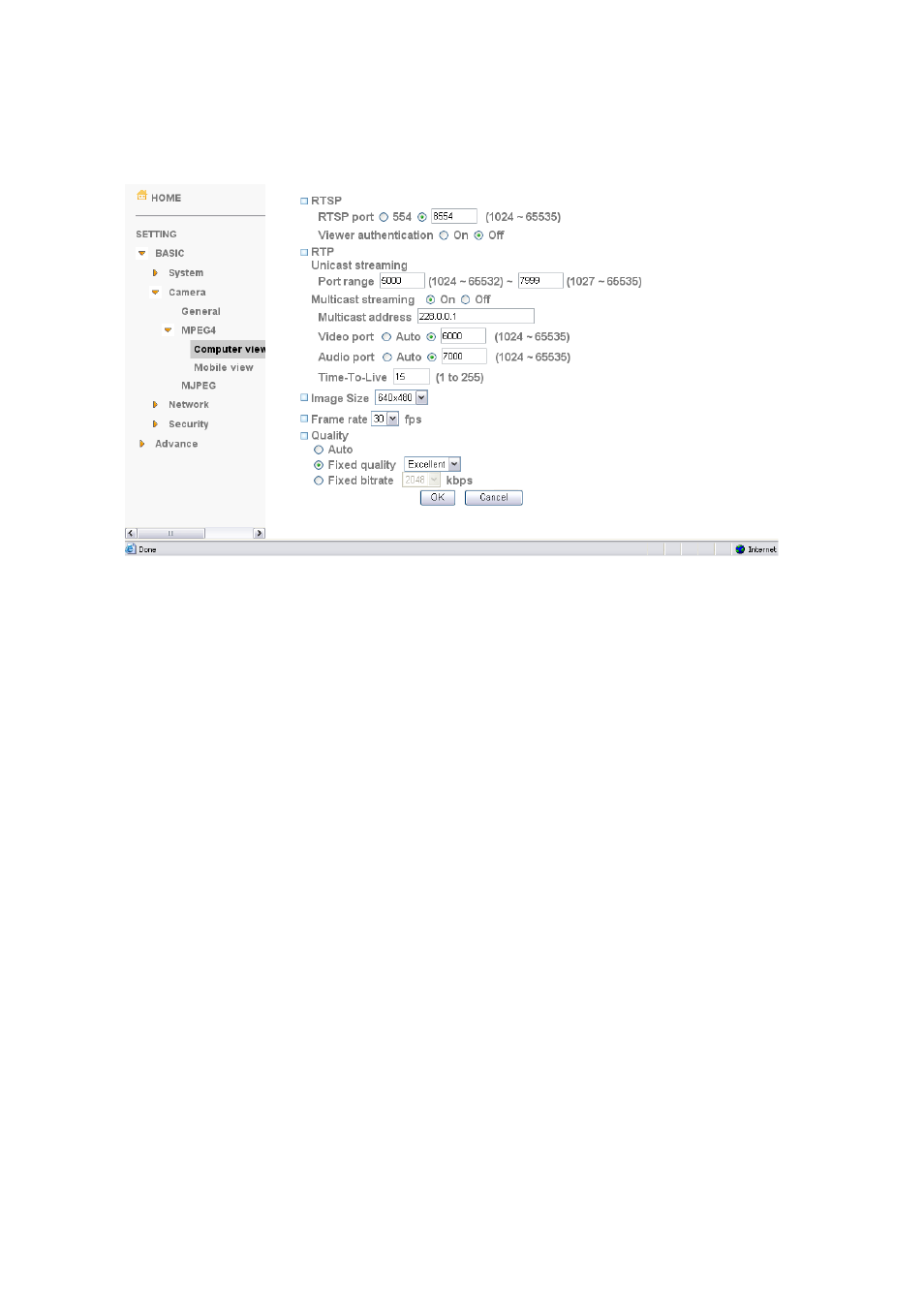

5.2.2 MPEG4
A. Computer View
 RTSP (if RTSP mode is On, Please check “Setting → Basic → Camera →General”)
 RTSP Port: Specify the transmission port number of RTSP streaming. The default value is
8554.
 Viewer Authentication: If the viewer authentication is On, the users will be requested to key-in
username and password when viewing through RTSP.
 RTP (if RTSP mode is On, Please check “Setting → Basic → Camera → General”)
 Unicast Streaming Video / Audio Port Range: Specify the transmission port range of RTP
streaming video. RTP will select a port randomly from the range.
 Multicast Streaming (If it is ON)
 Multicast Address: Specify the multicast server address.
 Video / Audio Port: Specify the transmission port number of the video data. Specify an even
number from 1024 to 65534.
 Time to Live: Set the maximum TTL that multicast can pass through.
 MPEG4 view port (if RTSP mode is Off, Please check “Setting → Basic → Camera →
General”)
 Unicast Streaming Video / Audio Port Number: Specify the transmission port number of the
video data. It is initially set to 8090. You can specify an even number from 1024 to 65534.
 Image Size: Specify the image size when the network camera transmits. You can choose among
704 x 480, 352 x 240, and 176 x 120 for NTSC mode or 704 x 576, 352 x 288, and 176 x 144 for PAL
mode.
 Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10, 15, 20,
