4. Wireless Settings
35 AirLive N.TOP User’s Manual

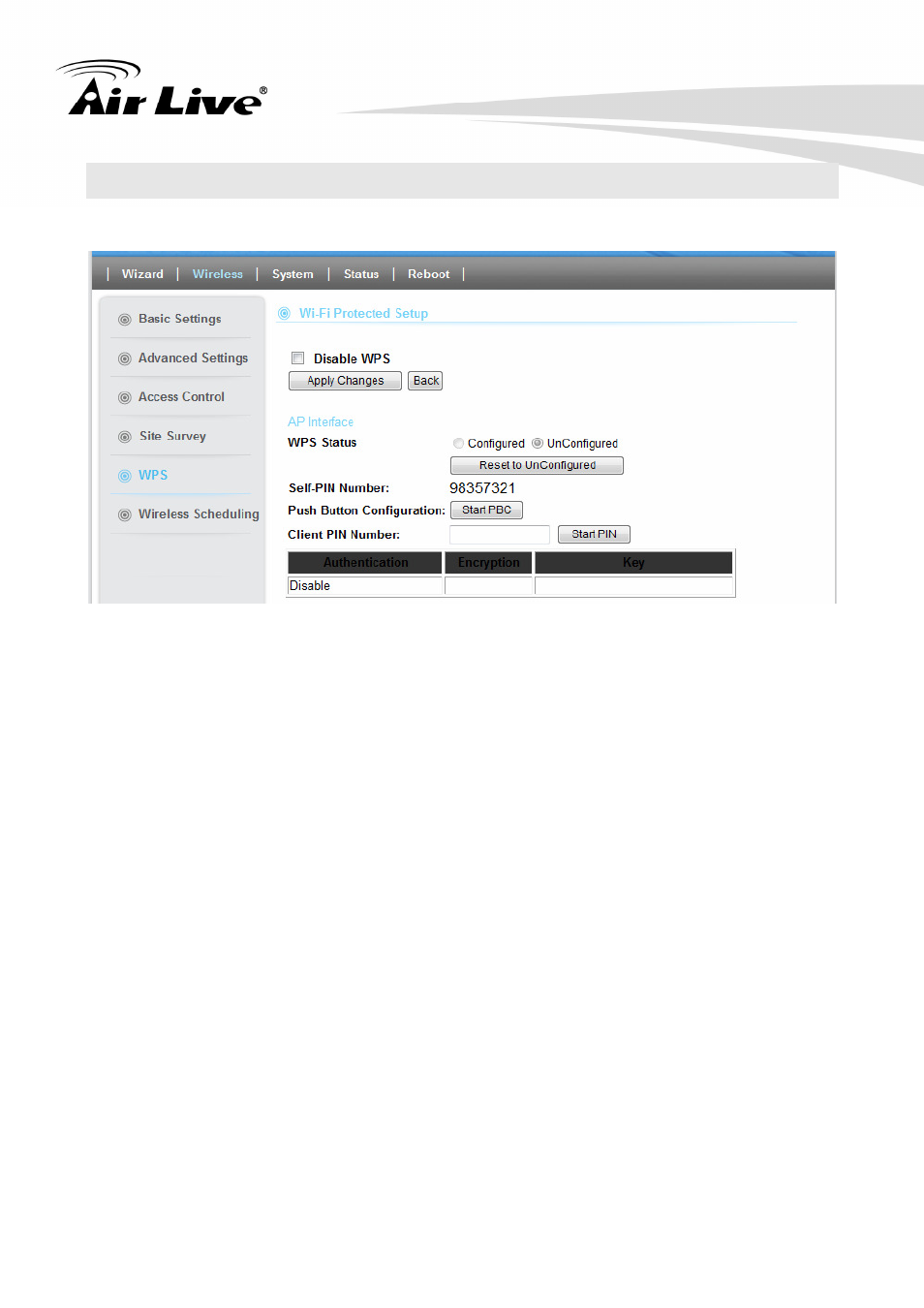

4.6 WPS
Wireless Settings -> WPS
Disable WPS: Check the box to disable the WPS function, default setting is
enabled.
WPS Status: Here shows the current status of the WPS function. Default setting is
configured; click Reset to UnConfigured to re-configure the WPS connection.
Self-PIN Number: Here shows the 8-digit numbers PIN code of the router itself.
Enter the Self-PIN Number to client (Registrar) end and click the PIN button at the
client end to make a WPS connection. It will connect with the wireless router within
two minutes and get IP address.
Push Button Configuration: Click Start PBC button (or press the physical WPS
button on the Wireless Router once), meanwhile, the client should also click the PBC
button simultaneously within 2 minutes.
Client PIN Number: Enter the client (Enrollee) PIN code into the blank field then
click the Start PIN button to make a WPS connection with client. Then, the
wireless router will connect to client within 2 minutes and get IP address
