8
C C C h h h a a a p p p t t t e e e r r r 2 2 2 S S S y y y s s s t t t e e e m m m W W W i i i z z z a a a r r r d d d
When it is first time for user to login ES-6000, system will switch to Wizard page automatically, so user can
follow the wizard to configure mail server setting step by step.
Step1. Connect the PC and ES-6000’s port 1 to the same Hub / Switch, and launch the browser (IE or
Firefox) to link the ES-6000 appliance. The default IP address is http : //192.168.1.1
Step2. Administrator will be requested for User Name and Password when entering ES-6000 system.
(Figure 2-1)
„ User Name : admin
„ Password : airlive
„ Click OK .

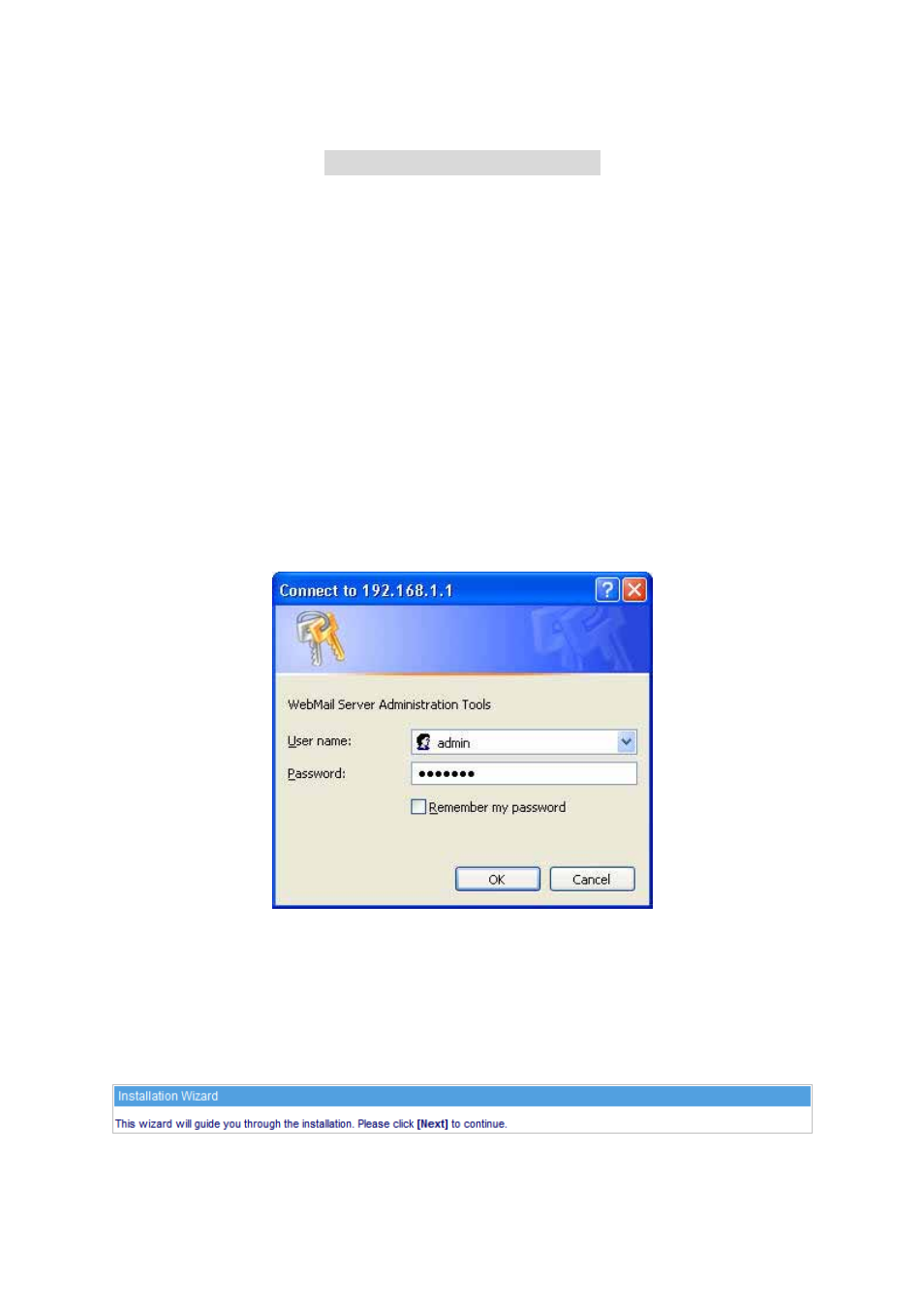

Figure 2-1 Login page
Step3. When user first uses the ES-6000 management interface, system will automatically enter Install
Wizard. It will guide user to make settings. Click Next. (Figure 2-2)
Figure 2-2 Enter the setting wizard
