201
12.2 Example
Using ES-6000 to Provide Web Service

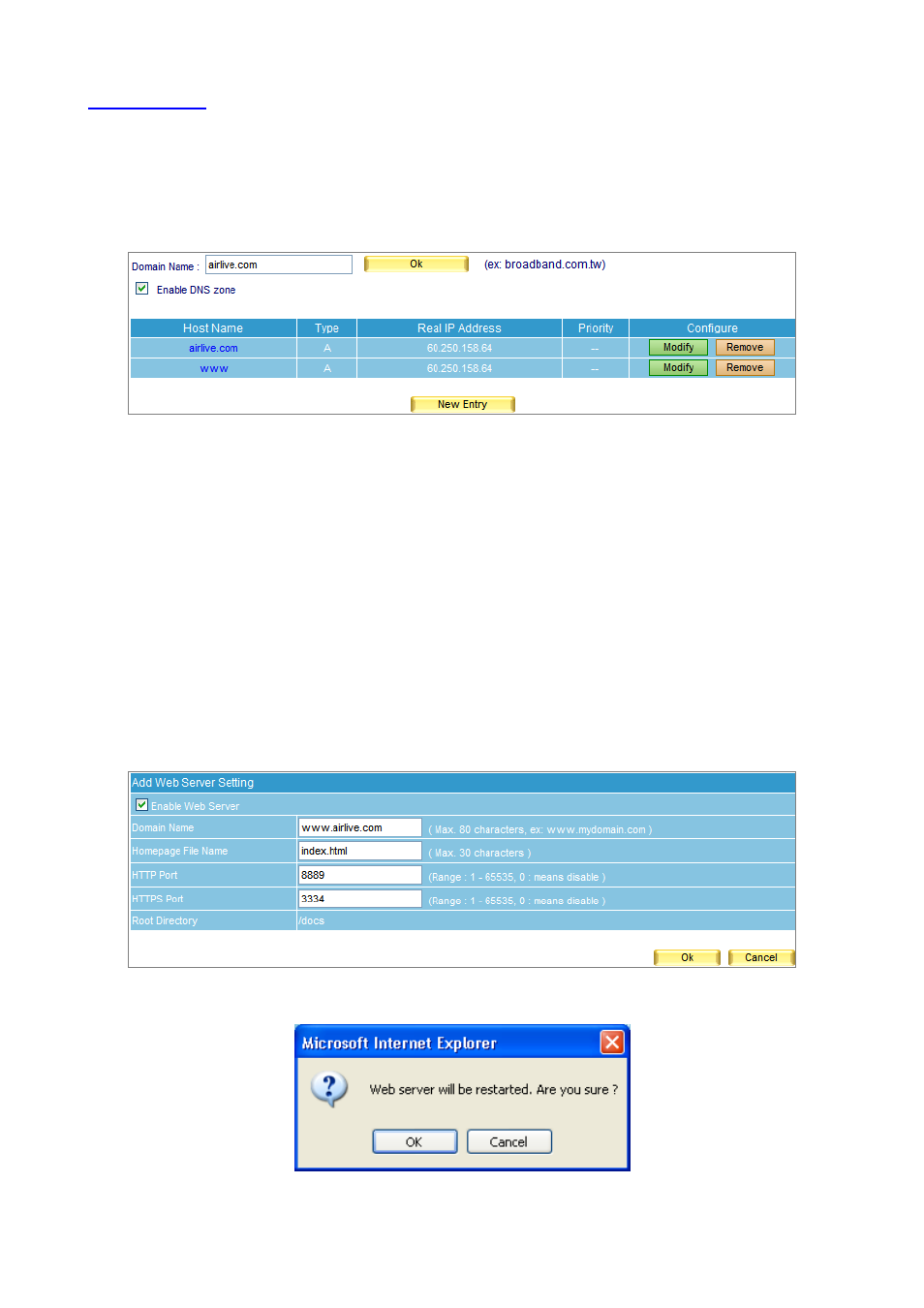

Step1. DNS Setting Æ Setting: Create DNS entry to define web server address. (Figure 12-2)
Figure 12-2 The DNS configuration for Web Server
Step2. Select Web Server Setting Æ Setting and then set as below:
„ Click New Entry
„ Tick Enable Web Server
„ Type “www.airlive.com” in the Domain Name field
„ Type “index.htm” in the Homepage File Name field
„ Enter “888” in the HTTP Port field
„ Enter “333” in the HTTPS Port field
„ Click OK (Figure 12-3)
„ Click OK in the dialogue box to confirm restarting the Web server. (Figure 12-4, 12-5)
Figure 12-3 Configure the Web Server
Figure 12-4 Confirming to restart the Web server
