179

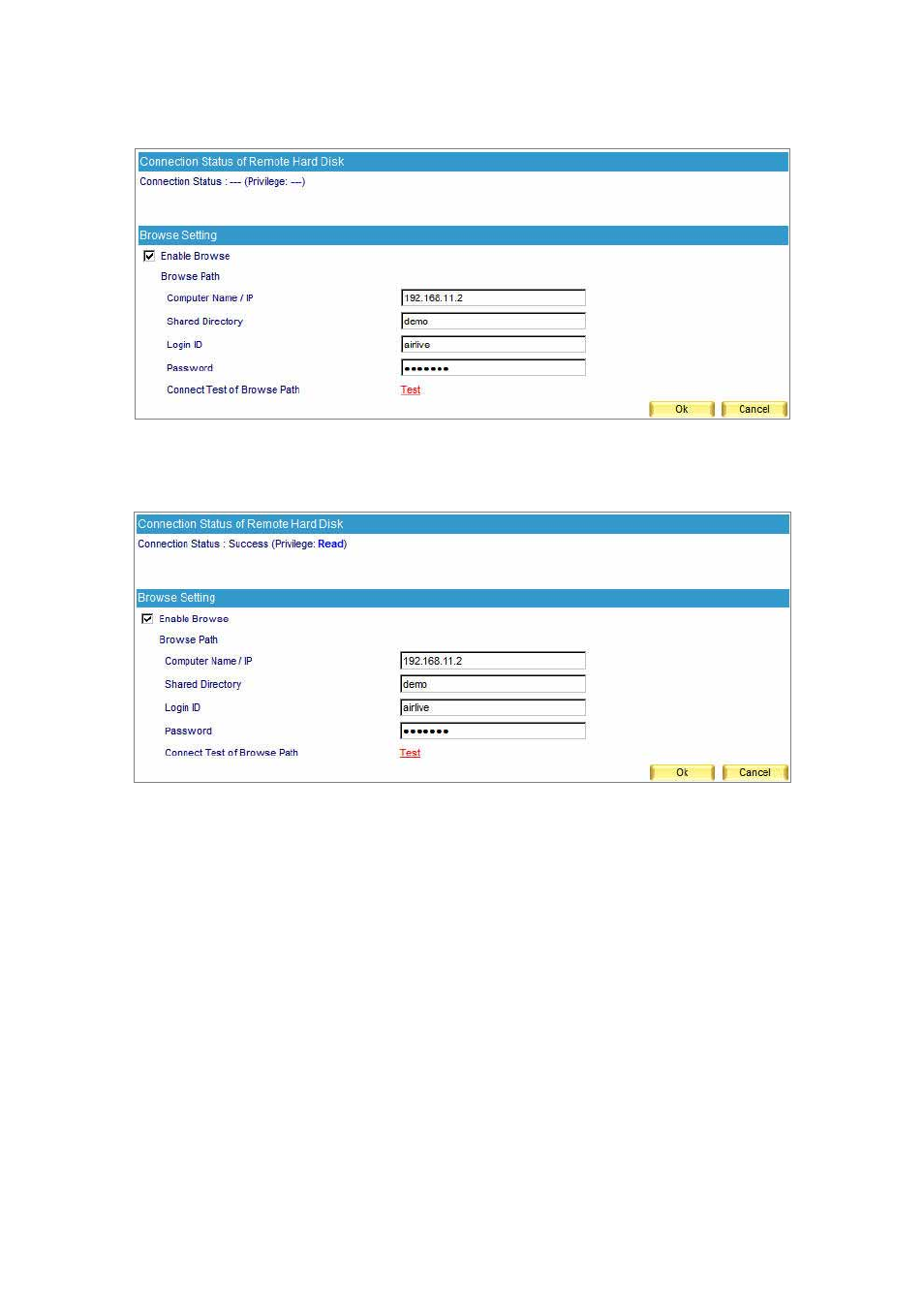

Step3. In Remote Backup Æ Browse Setting, set as below. (Figure 9-5)
Figure 9-5 The browse setting
Step4. Check up the connection status. (Figure 9-6)
Figure 9-6 Check up the connection status
Step5. When the mails are archived, they will be transferred to a NAS or file server according the
remote backup setting.
„ A mail report shown in Remote Backup Æ Browse Mail. (Figure 9-7)
„ To retrieve, check the box corresponding to the E-mails to be retrieved and click the
retrieve icon on the upper left.
„ Then a Retrieve window appears. Next, apply both the sender and recipient E-mail
address and click OK. (Figure 9-8)
„ To remove, check the box corresponding to the E-mails to be deleted and click the remove
icon on the upper left.
„ Click OK in the confirmation window to confirm the deletion of selected E-mails.
(Figure 9-9)
