Example: To Deploy a High Availability Environment
Step1 Power off and deploy Master and Backup ES-6000, connect both port1 to switch.
(Figure 10-1)
Step2 Connect Master ES-6000 port 2 (HA port) to Backup ES-6000 port 2.
Step3 Don’t power on Backup ES-6000 before you finish the configuration of Master ES-6000.
Step4 Change interface IP address of Master ES-6000 to differ with default IP 192.168.1.1, ex.
192.168.1.2 (Figure 10-2)
Step5 Change Management IP of Master ES-6000 to differ with default IP 192.168.2.1, ex. 192.168.2.2.
(Figure 10-3)
Step6 Make sure the Master ES-6000 and Backup ES-6000 port 1 and port 2 are connected properly.
Step7 Power on the Backup ES-6000, then both ES-6000 will synchronize data and setting.
(Figure 10-4, 10-5)
Step8 It needs to take 10 hours to synchronize the data and setting. (Figure 10-6)
ES-4000 Master
IP:192.168.1.2
HA IP:192.168.2.2
ES-4000 Backup
IP:192.168.1.1
HA IP:192.168.2.1
Port 1(Mail Port)
Port 1(Mail Port)
Port 2(HA Port)

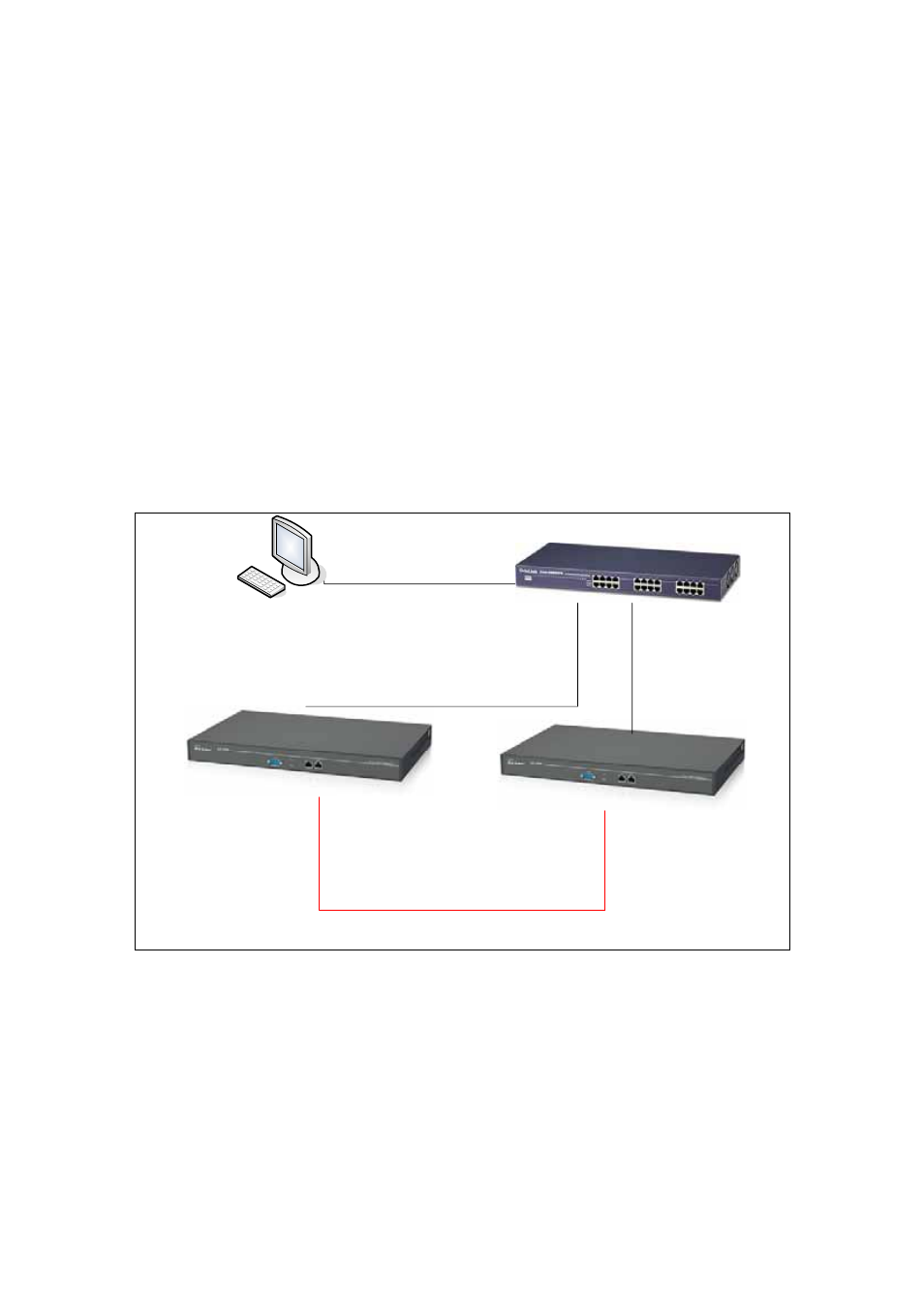

Figure 10-1 The Master device deployment under High Availability mode
