5. Web Management: System Configuration and Status

AirLive AirMax5X User’s Manual

5.2 Device Status

When you click on the “Device Status” on the top menu bar, the sub menu for device status
will appear.

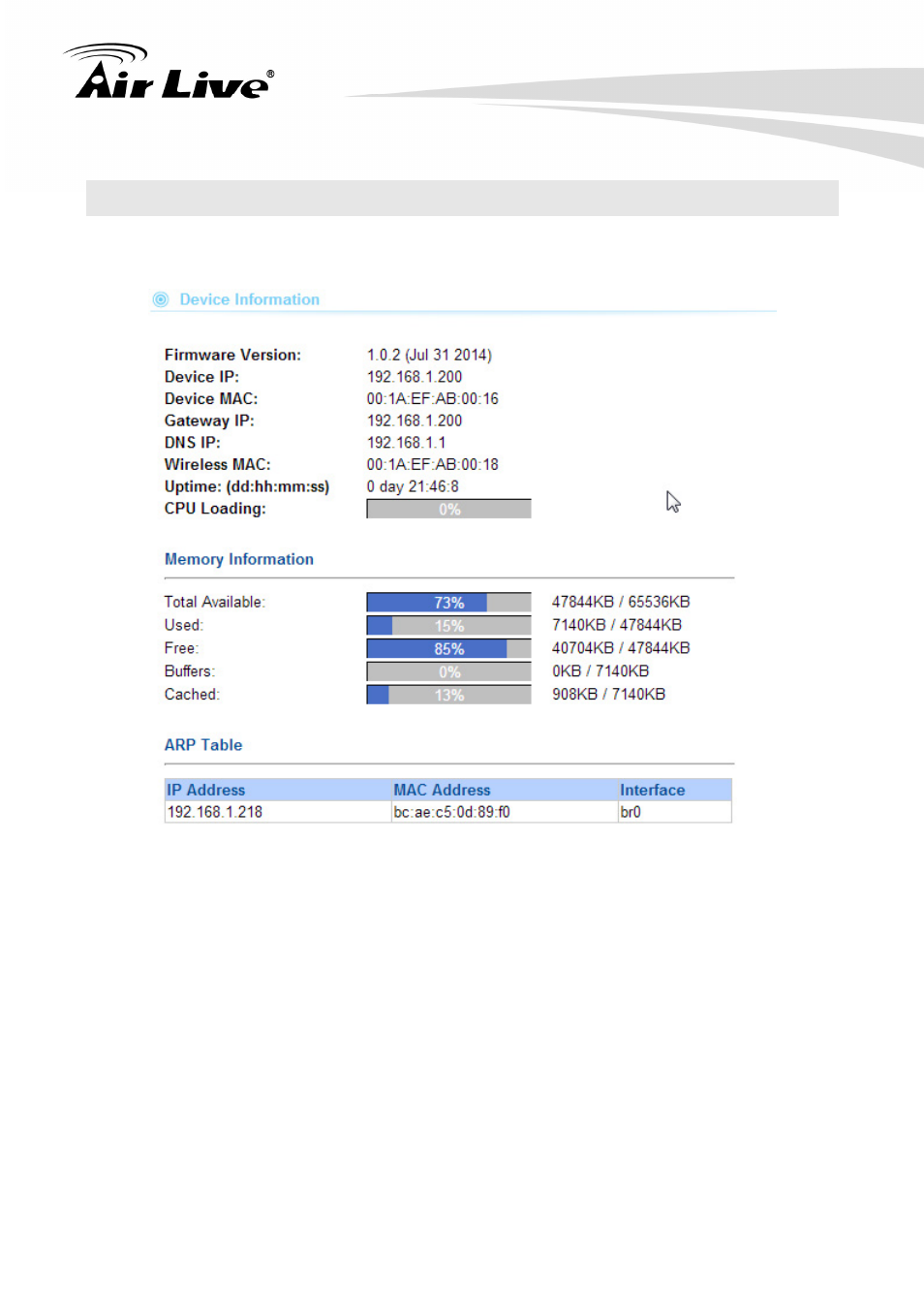

5.2.1 Device Information

This page shows the general information about AirMax5X such as firmware version, device
IP/MAC, WAN IP/MAC (in router modes), Gateway IP(in router modes), DNS IP…etc.
Below are some additional explanations on some status information of this page:

CPU Loading Display the CPU usage.

Memory Information Display how much memory is used and free.

Firmware version: Shows the current firmware version installed in this AirMax5X

Wireless MAC: This is the wireless MAC address (BSSID) of this AiMax5N.

Uptime: This is the time that the AirMax5X has been running since last power up.

ARP Table: Display the corresponding IP and MAC address Table.
