4. Web Management: Operation Mode Settings
AirLive AirMax5X User’s Manual
37

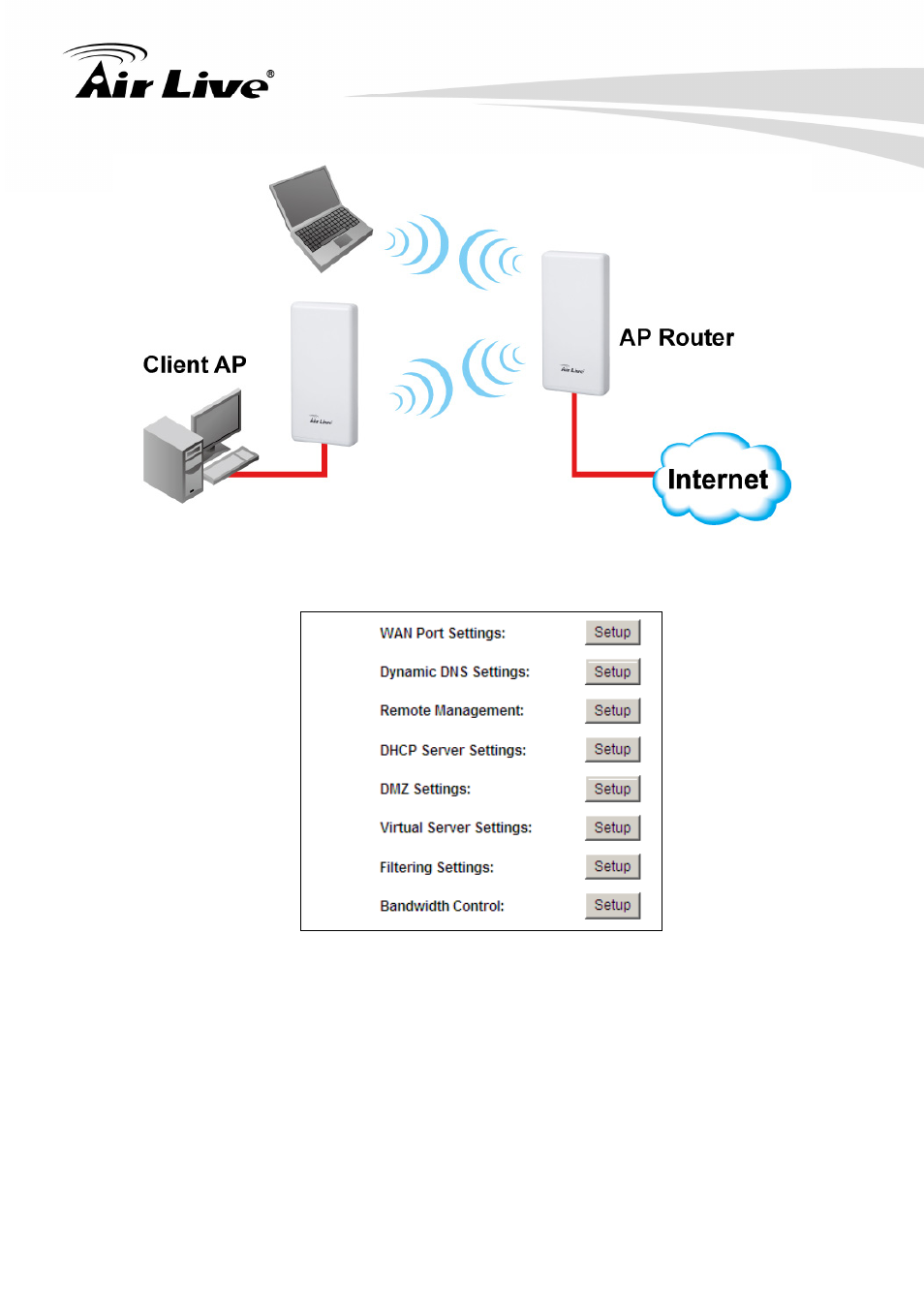

When you select the AP Router mode, additional wireless settings will appear for WAN port
settings.
There are two important steps to set up the AP Router mode. First, you need to know what
kind of WAN that your ISP or your network provided. Secondary you need to decide
whether the AirMax5X will provide the DHCP IP via the LAN port or wireless Interface. If the
AirMax5X does not provide the IP, the client need to assigned the IP by themselves.
