4. Web Management: Operation Mode Settings
AirLive AirMax5X User’s Manual
39

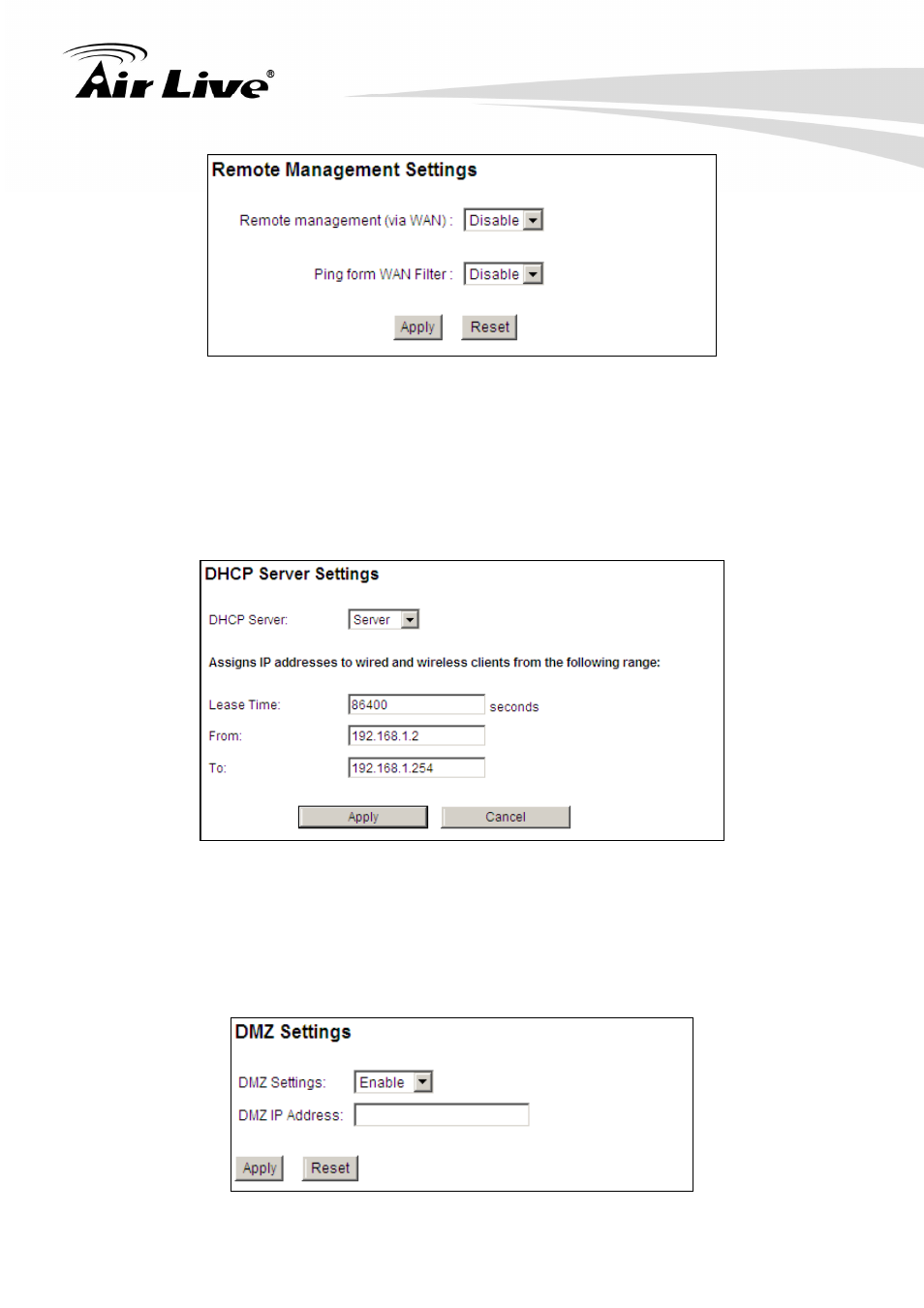

4.2.5.4 DHCP Server
Operation Mode -> Setup -> DHCP Server Settings
DHCP Server Settings is to assign private IP address to the devices in your local area
network (LAN). The default LAN IP address of AirMax5X is 192.168.1.1, changing
AirMax5X’s IP address will also change the DHCP server’s IP subnet.
4.2.5.5 DMZ
Operation Mode -> Setup ->DMZ Settings
DMZ opens all TCP/UDP ports to particular IP address on the LAN side. It allows setting up
servers behind the AirMax5X.
Enable the DMZ function and then enter the local DMZ IP address.
