4. Web Management: Operation Mode Settings

AirLive AirMax5X User’s Manual

4.2.1 Access Point Mode setting

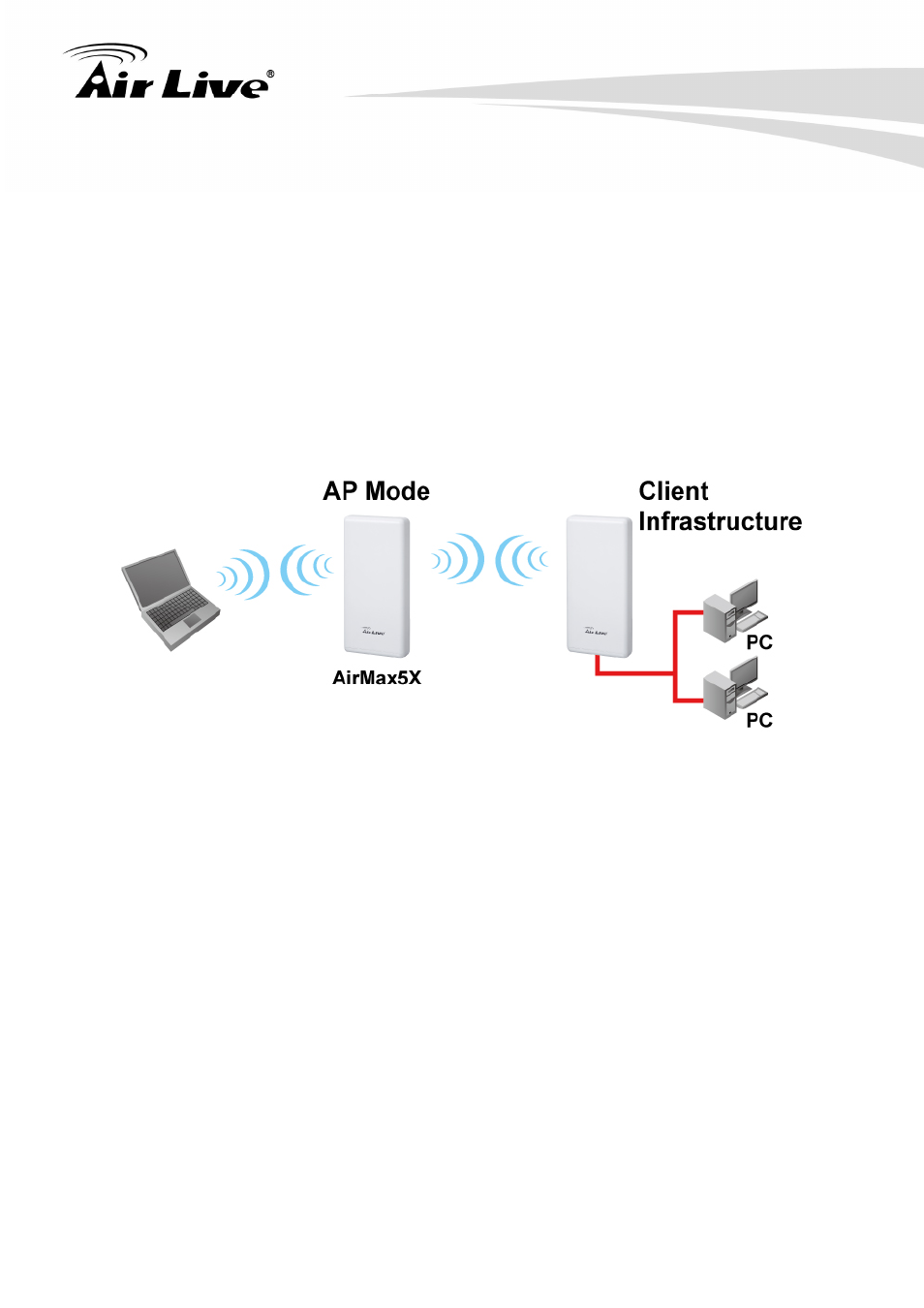

When operating in the Access Point mode, the AirMax5X becomes the center hub of the
wireless network. All wireless cards and clients connect and communicate through
AirMax5X. This type of network is known as “Infrastructure network”. Other AirMax5X or
802.11a/n CPE can connect to AP mode through “Client Infrastructure Mode”.

In this mode, normally your AirMax5x will not provide the IP to the client (Notebook or PC) ,
Please make sure that there are another DHCP server which can provide the IP in the
network or all of the wireless cards, clients are set the difference IP manually.

All of the Ethernet Port are LAN port in Access Point mode

Once you click on the “Setup” page for Access Point Mode, the wireless settings page will
appear as below image
