4. Web Management: Operation Mode Settings
AirLive AirMax5X User’s Manual
42

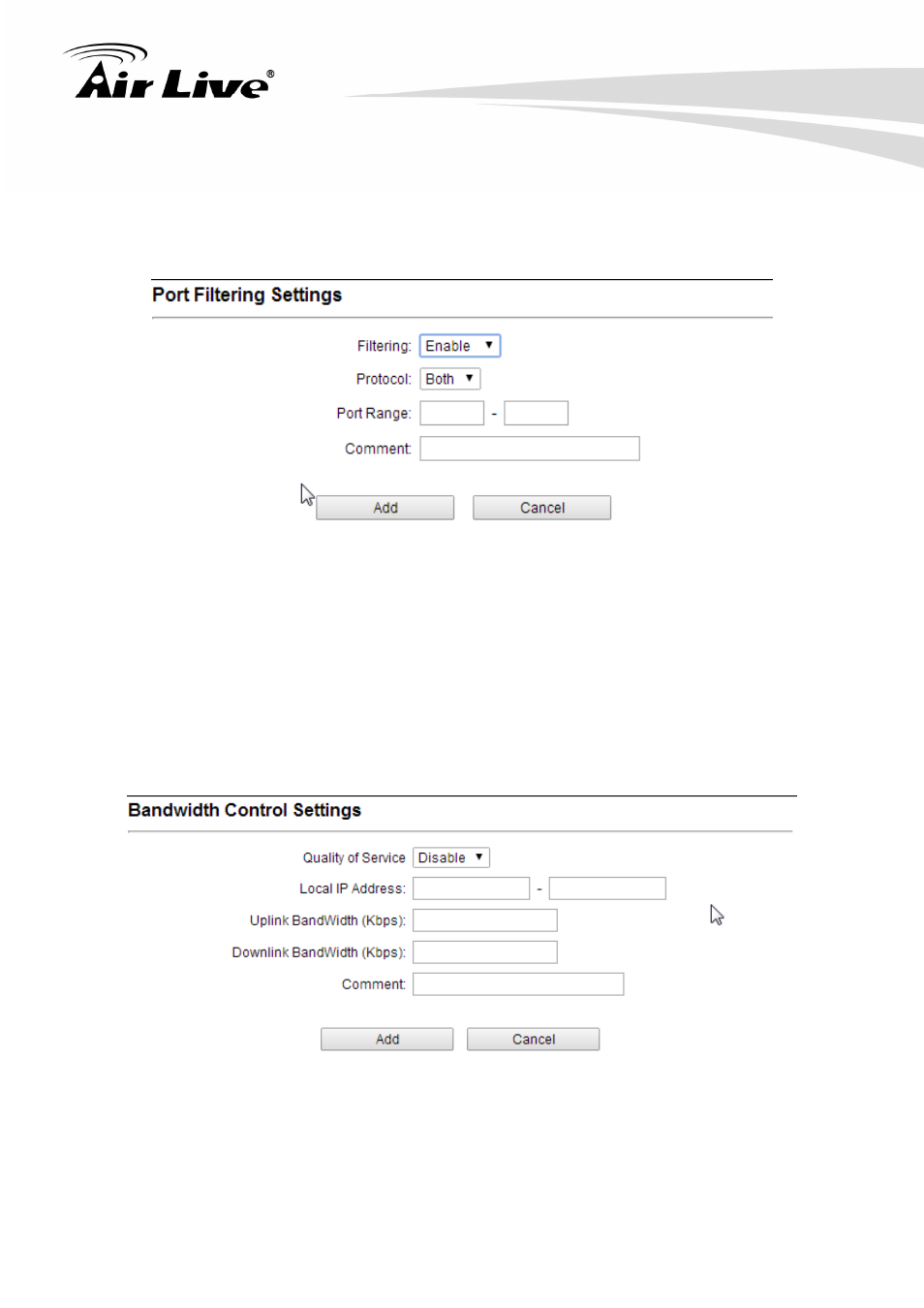

4.2.5.9 Port Filtering Settings
Operation Mode -> Setup -> Port Filtering Settings
Port filtering is simply a mechanism that decides which Port will be processed normally and
which will be discarded.
4.2.5.10 Bandwidth Control
Operation Mode -> Setup -> Bandwidth Control
Bandwidth Control can limit the maximum speed of individual device. It is also known as
Traffic Shaping. The AirMax5X provides Per-IP Bandwidth Control for both uplink and
downlink speed. It controls the speed of both wireless and wired interface.
To configure, please click on the “Bandwidth Control” button under wireless settings. The
following screen will appear:
Enable: Select to enable Bandwidth Control. The default value is disabled.
Local IP Address: Fill in the local IP address
Uplink Bandwidth: Input uplink Maximum upload bandwidth
Downlink Bandwidth: Input downlink Maximum upload bandwidth.
