AirLive AirMax5X - Manual (Page 12)

1. Introduction
AirLive AirMax5X User’s Manual
6

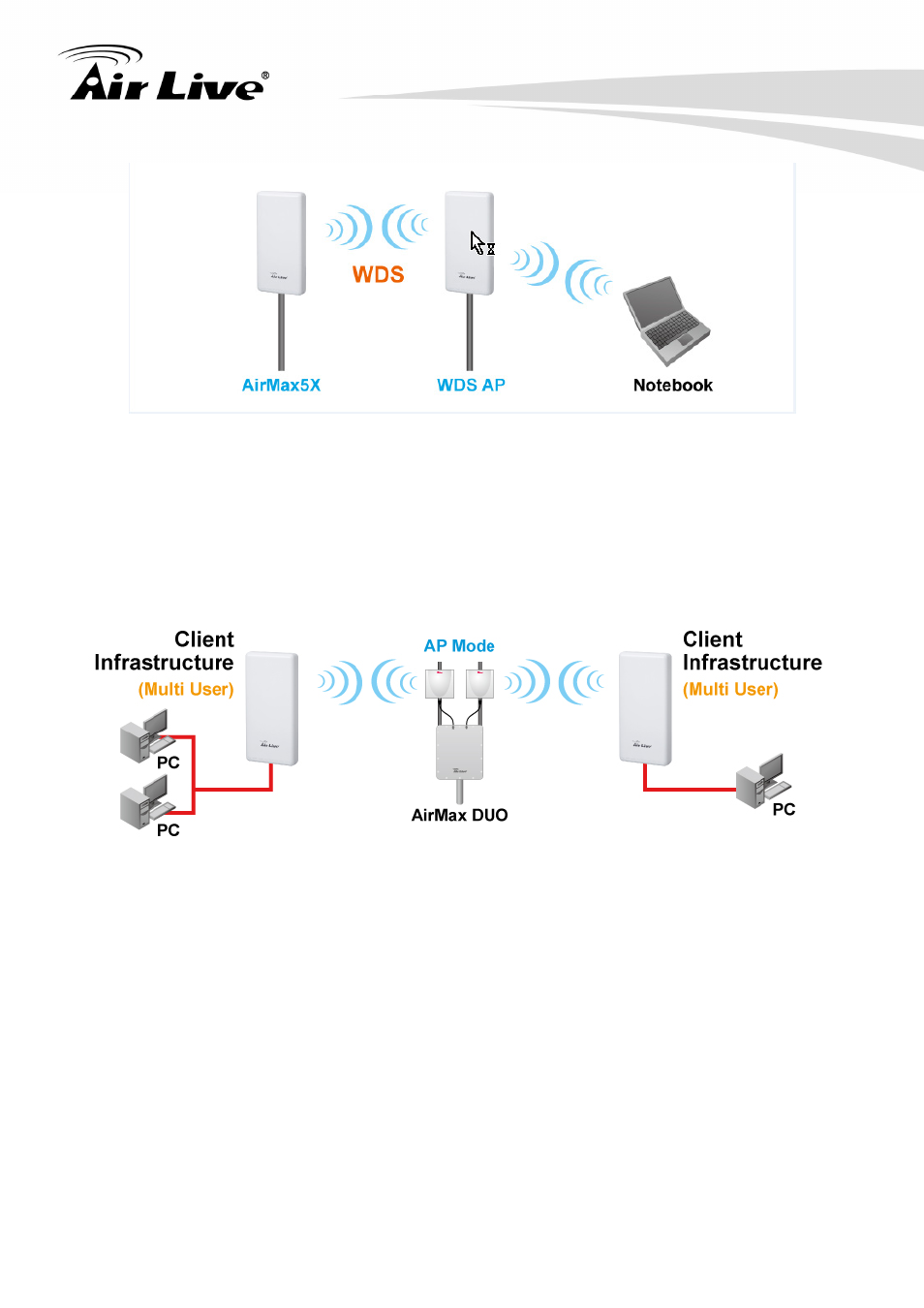

1.6.4 Client Infrastructure Mode
This mode is also known as “Client” mode. In Client Infrastructure mode, the AirMax5X acts
as if it is a wireless adapter to connect with a remote Access Point. Users can attach a
computer or a router to the LAN port of AirMax5X to get network access. This mode is often
used by WISP on the subscriber’s side.
1.6.5 Wireless ISP Mode
In Wireless ISP Mode, AirMax5X connects to the remote Access Point as in Client
Infrastructure Mode. On the LAN side, it acts like a wired router for IP sharing function. This
mode is best used for IP sharing application for WISP subscribers. In this mode, the WAN
is the wireless client side; the LAN is the wired side.
