4. Web Management: Operation Mode Settings
AirLive AirMax5X User’s Manual
43
4.2.6 Wireless ISP Mode Setting
In Wireless ISP Mode, AirMax5X connects to the remote Access Point as in Client
Infrastructure Mode. On the LAN side, it acts like a wired router for IP sharing function. This
mode is best used for IP sharing application for WISP subscribers. In this mode, the WAN
is the wireless client side; the LAN is the wired side.

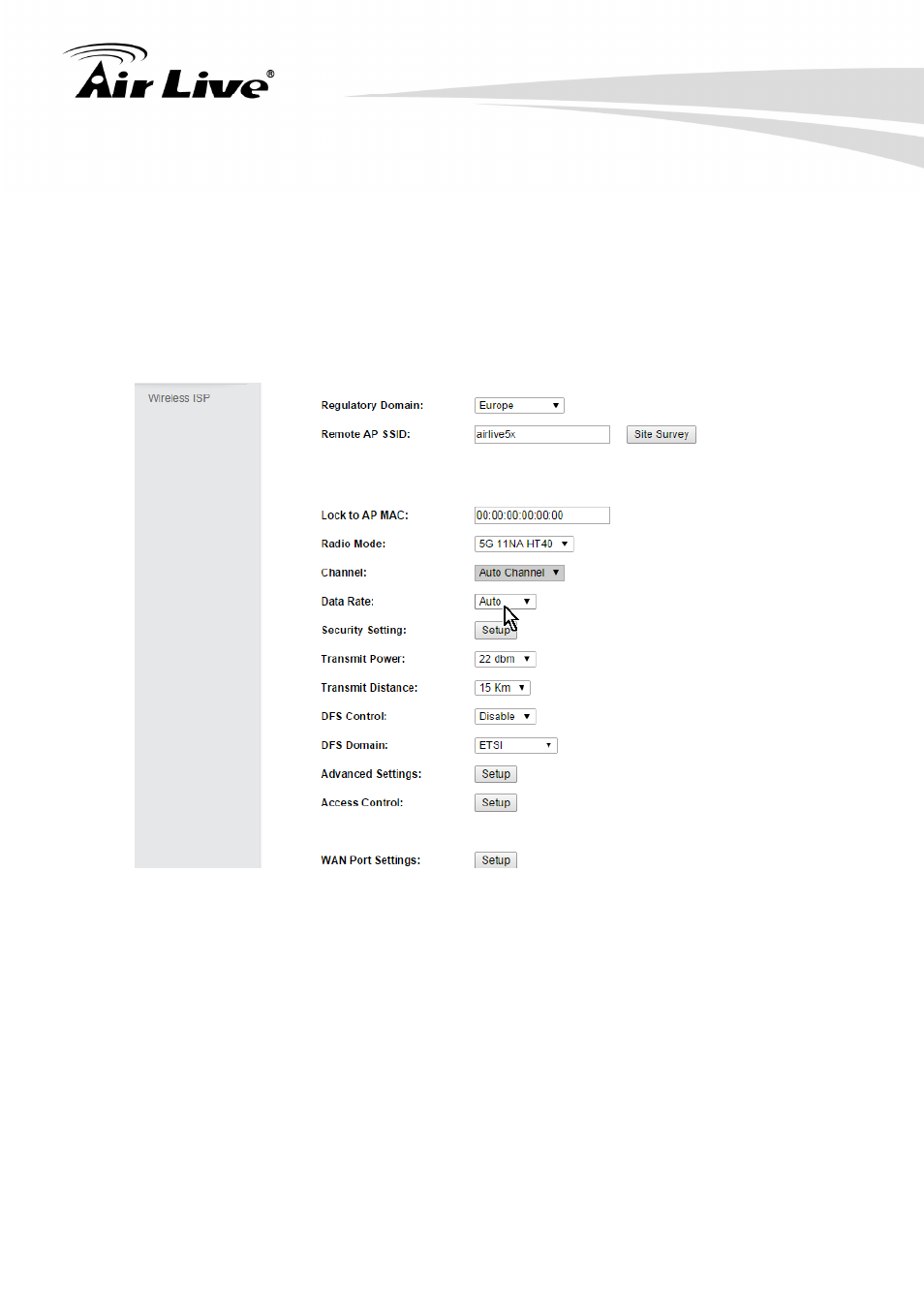

Once you click on the “Setup” page, the wireless settings will appear.
4.2.6.1 Remote AP SSID and Site survey
In Wireless ISP mode, you need to decide which remote AP that you want to associate.
User can entry the SSID by themselves or click the site survey button, the AirMax5X will
scan the available AP.
After click the “site survey” button, the available AP will pop-up in other page as below
