2. Installing the A.DUO
AirLive A.DUO User’s Manual 12

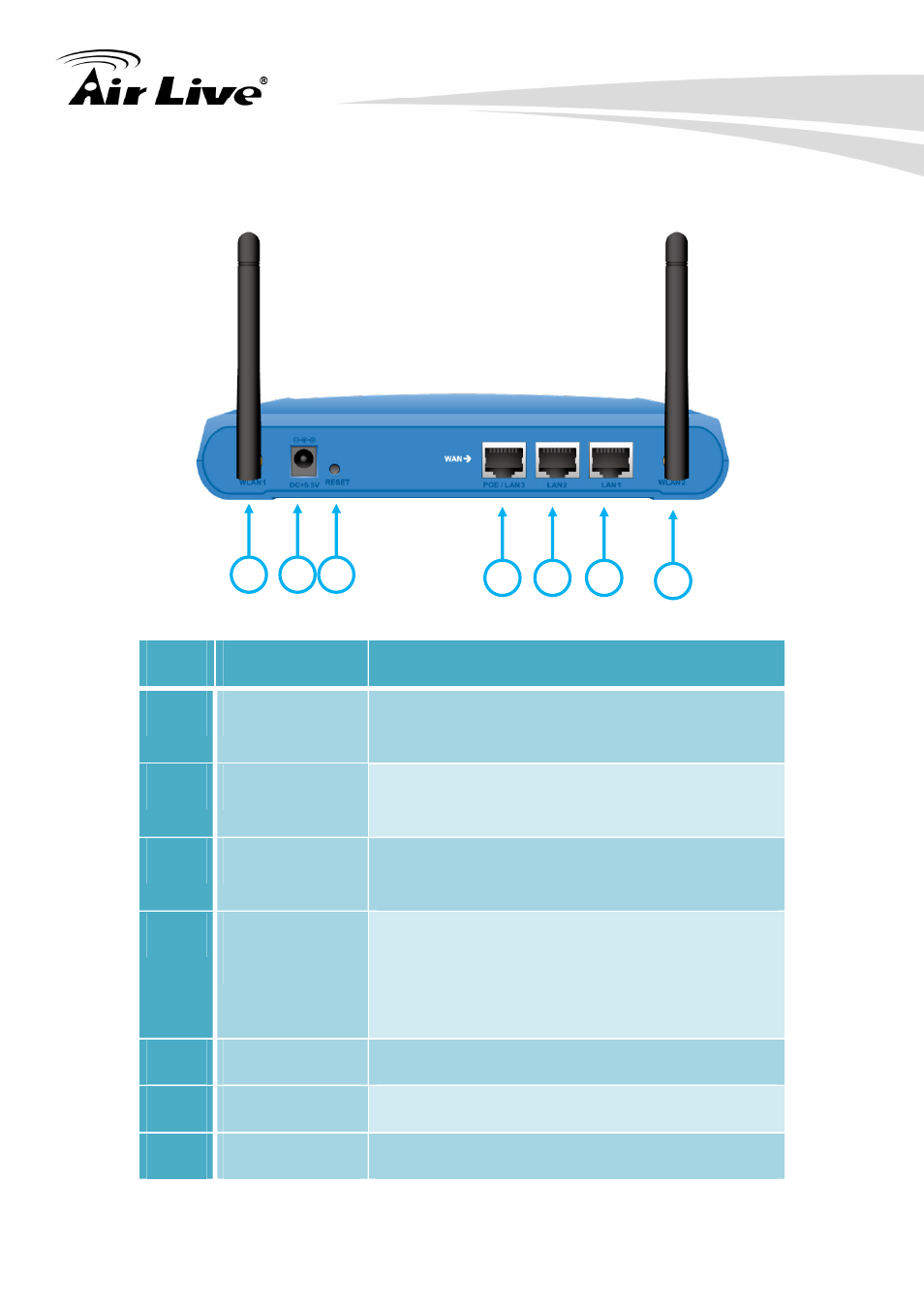

2.3.2. Back side introduction
Port # Display Description
1 WLAN1 Detachable antenna with R-SMA connector. 2
indoor 2dBi antennas are delivered.
2 Power Adaptor 5.5V 2.5A power supply adaptor delivered with
product.
3 RESET Reset button for rebooting and reset device as
default factory value.
4 LAN 3/PoE/
WAN Port
WAN, LAN and PoE port. When it is in Dual
Band Router mode, it function as a WAN port.
It can be plug 802.3af compliant PoE as power
and data supply.
5 LAN 2 LAN port 2
6 LAN 1 LAN port 1
7 WLAN2 Detachable antenna with R-SMA connector.
1 2
4 5
3
6 7
