Appendix a: technical characteristics – AiM MyChron4 660 User Manual
Page 85
MyChron4 660
User Manual
Release 1.03
www.aim-sportline.com
84

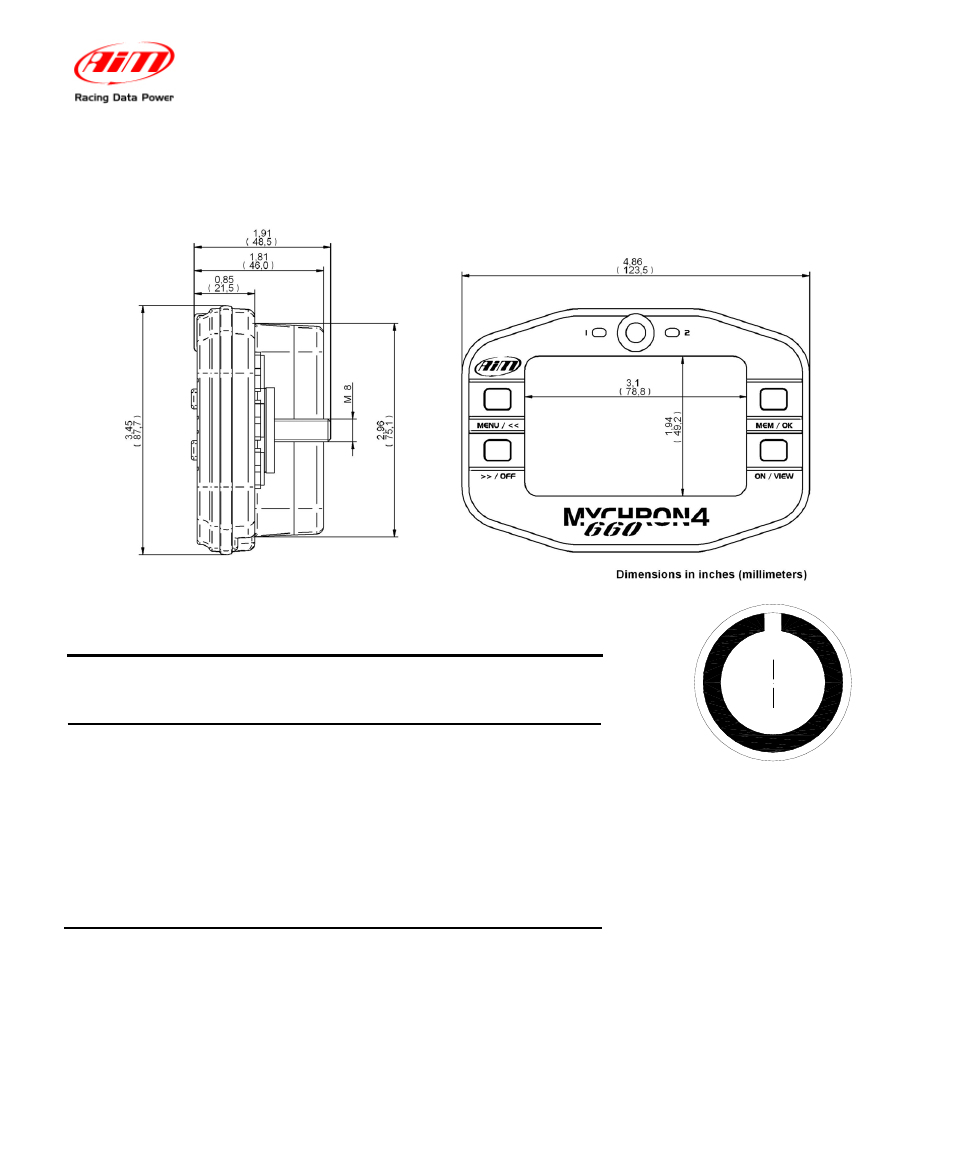

Appendix A: Technical characteristics
Connector details (Temperature channel)
Pin Function
Pin Function
1 TC1
5 TR1
2 GND
6 GND
3 TC2
7 TR2
4 GND
Note: TC = Thermocouple TR = Thermo resistor
Female 7-pins connector
pin out (external view)
1
4
3
2
5
6
7
