1.7 – How to connect cables to MyChron4 660
Once you have correctly installed all the sensors described above, you need to
connect them to your MyChron4 660. On the backside of the display unit you
have to plug the “2 temperatures split cable” to the connector labelled as
“TEMPERATURE” and the speed cable to the connector labelled as “SPEED”.
The EXP/PC connector is for Lambda, e-Box, data download purposes other CAN
Expansion accessories. The RPM wire is to be placed inside the two holes to the

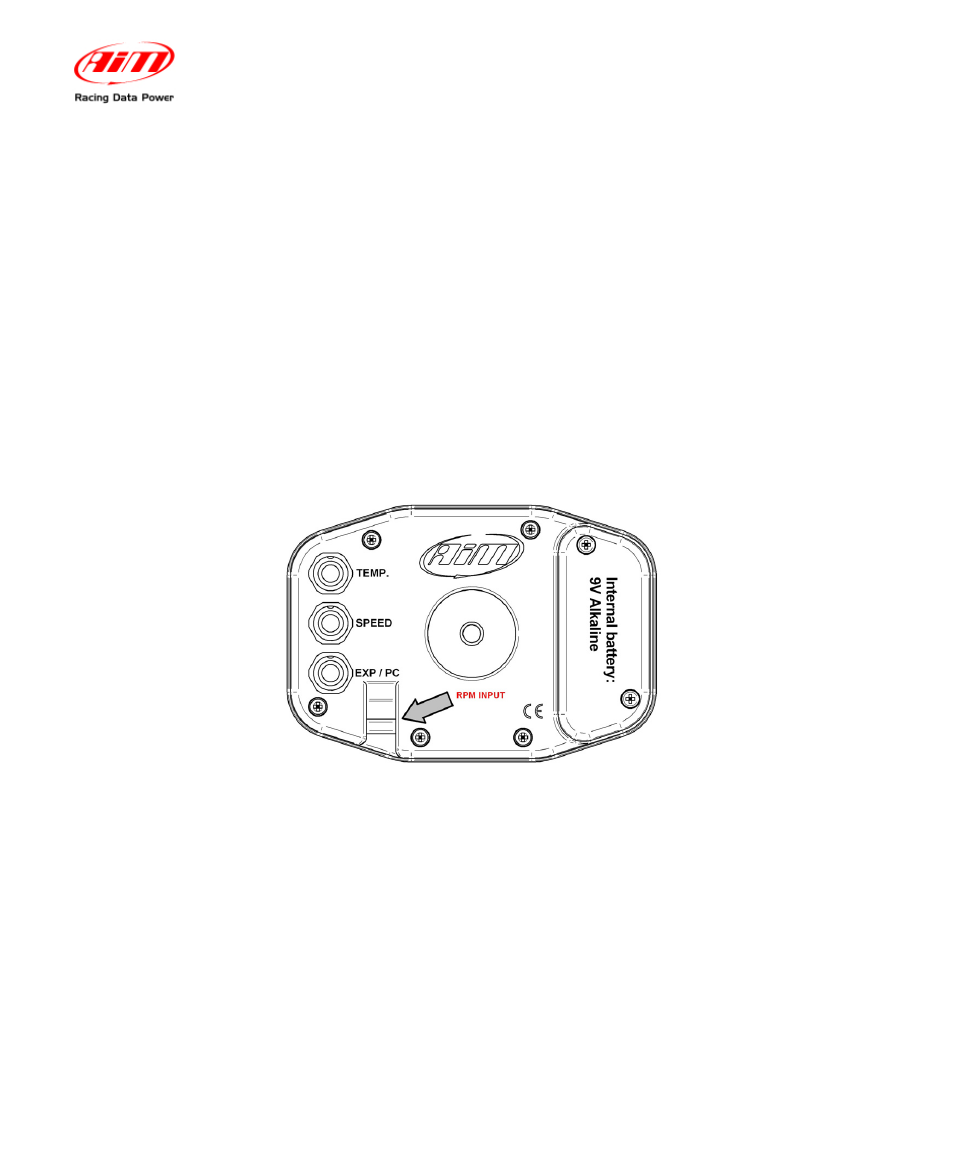

bottom right of the EXP/PC connector as shown in the figure below.
While connecting the cables to the main display unit, it is strongly
recommended to keep the RPM wire separated from the thermocouple wires
in order to minimize any interference there may be between cables.
