4.3.6 – Channel info
There are a number of parameters that can be modified for every channel, you
may right click on the channel name inside the “Available measurements” toolbar

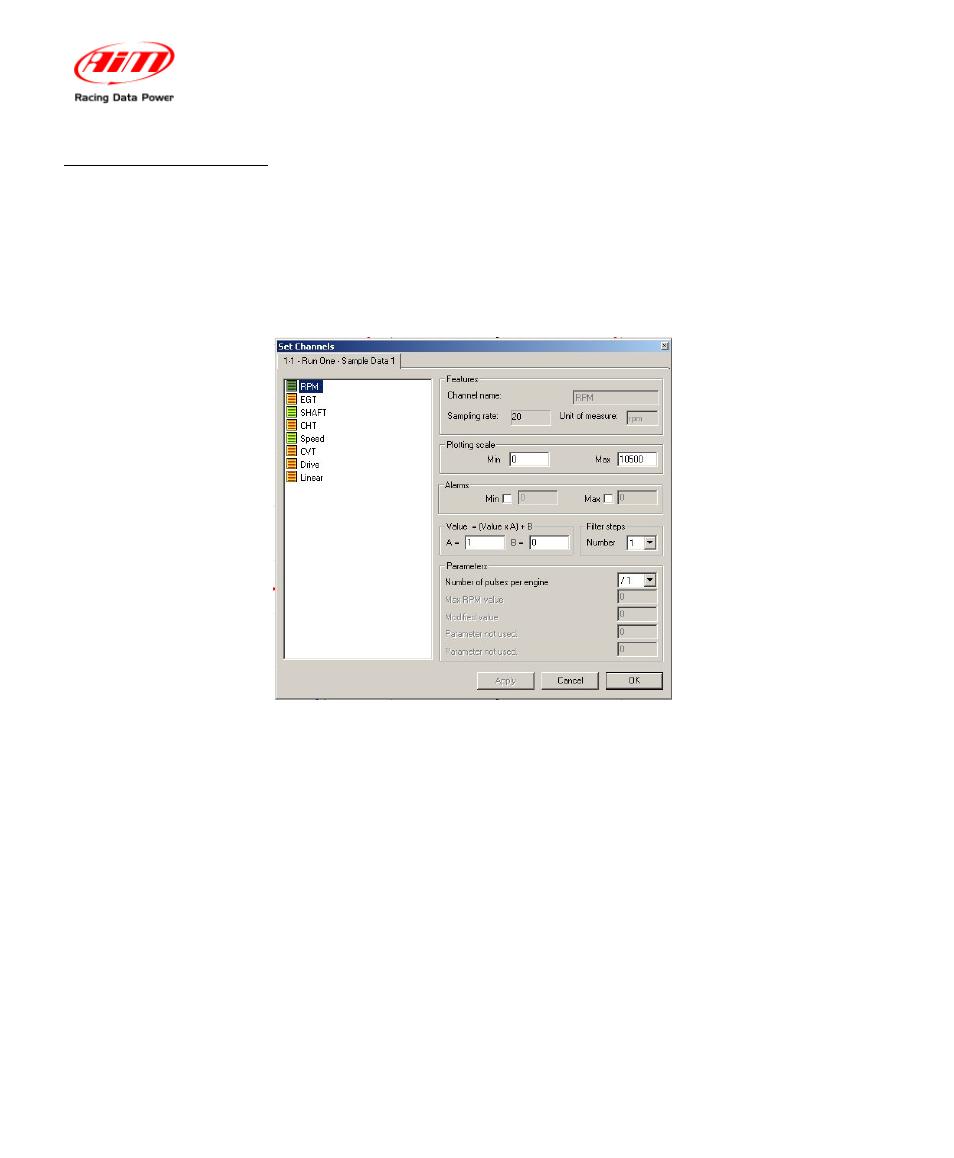

or click the “Channels” button inside the buttons toolbar. The “Set Channels”
window (shown here) will be displayed.
If you change the plotting scale you’ll generate a redraw of the graphs as soon as
you close this settings window. Changing the plotting scale value will allow you to
modify the graph’s higher and lower limit.
If you enable an alarm and properly set its threshold you’ll see a red coloured
background for the channel values (only in case the alarm is hit) in the channels
list window.
The other parameters affect the channel value and behave differently from one
sensor to another. Normally nothing has to be changed in these values.
