The user may choose the channel to be plotted on the graph by left-clicking on
the channel name inside the “channels list” window located in the upper left
corner of the “Time plot” window.
Moreover, the measurements displayed inside the “available measurements”
toolbar are linked to the cursor movement, showing the current value
corresponding to the selected track position.
In order to plot the scale together with the input channel, please enable the
checkbox aside the desired channel inside the “channels list” toolbar.
By clicking on the Displacement toolbar button you can choose how to display the
channels into the plot. You will use the small button with numbers in the channels

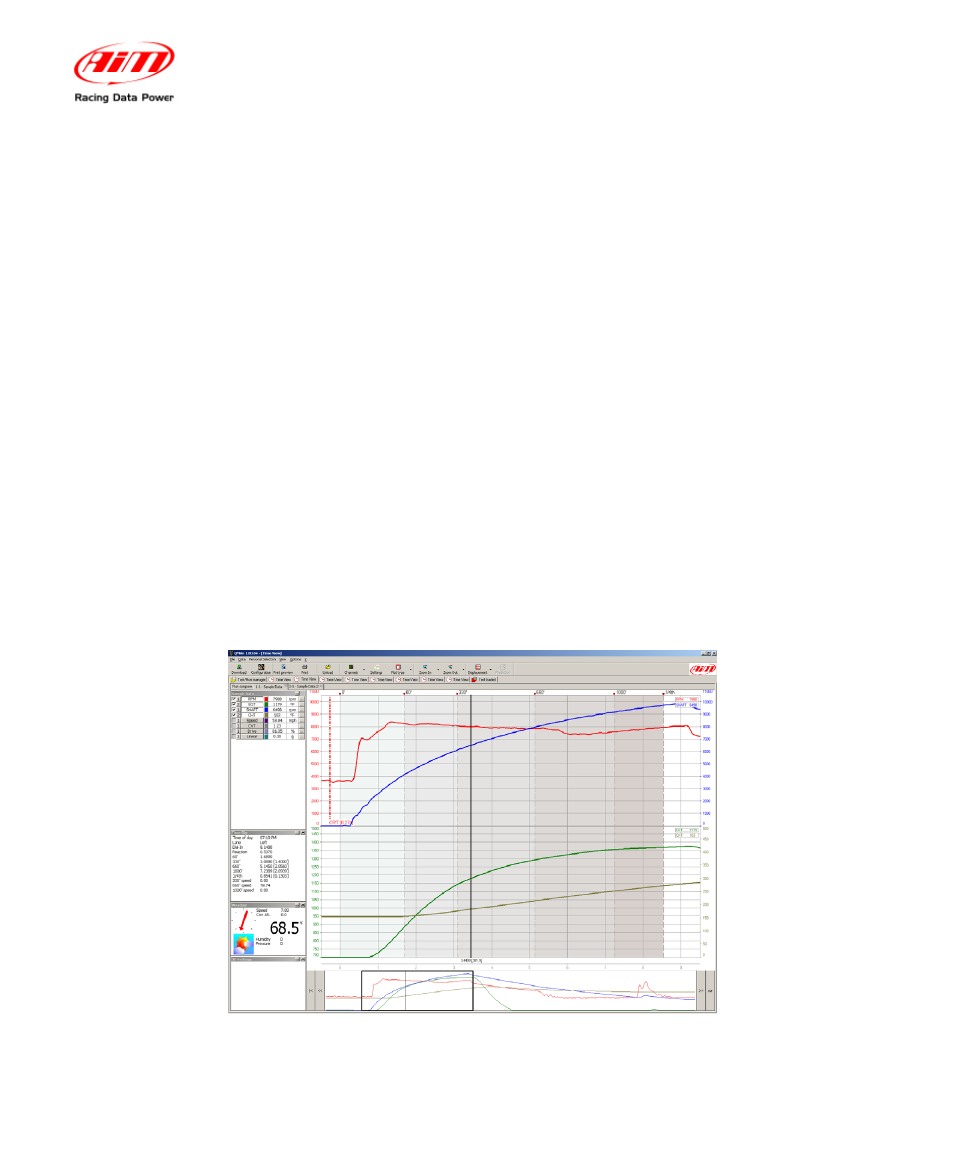

list window to decide where to place each channel. In the following screenshot an
example in which we placed RPM and shaft speed at the top and two
temperatures at the bottom is shown.
