Applications

40

Configure as an Ethernet IPX router

The router is preconfigured to operate as an IPX router when installed

in an IPX network. The router will learn the IPX network numbers

from the local LAN and when the WAN connections are established,

the router will route the IPX frames to the appropriate destination

IPX network.
The IPX routing scenario may consist of one of the two following

configurations. The first configuration consists of Novell servers

located on each of the LAN segments to be connected. The second

configuration consists of Novell servers located on only one of the

LAN segments to be connected. The router IPX router will need to

be configured differently in the second configuration with Novell

servers located on only one of the LAN segments.

Novell Servers in Both Locations

An Ethernet IPX router is used to intelligently route Novell IPX LAN

traffic to remotely connected LANs across the WAN.

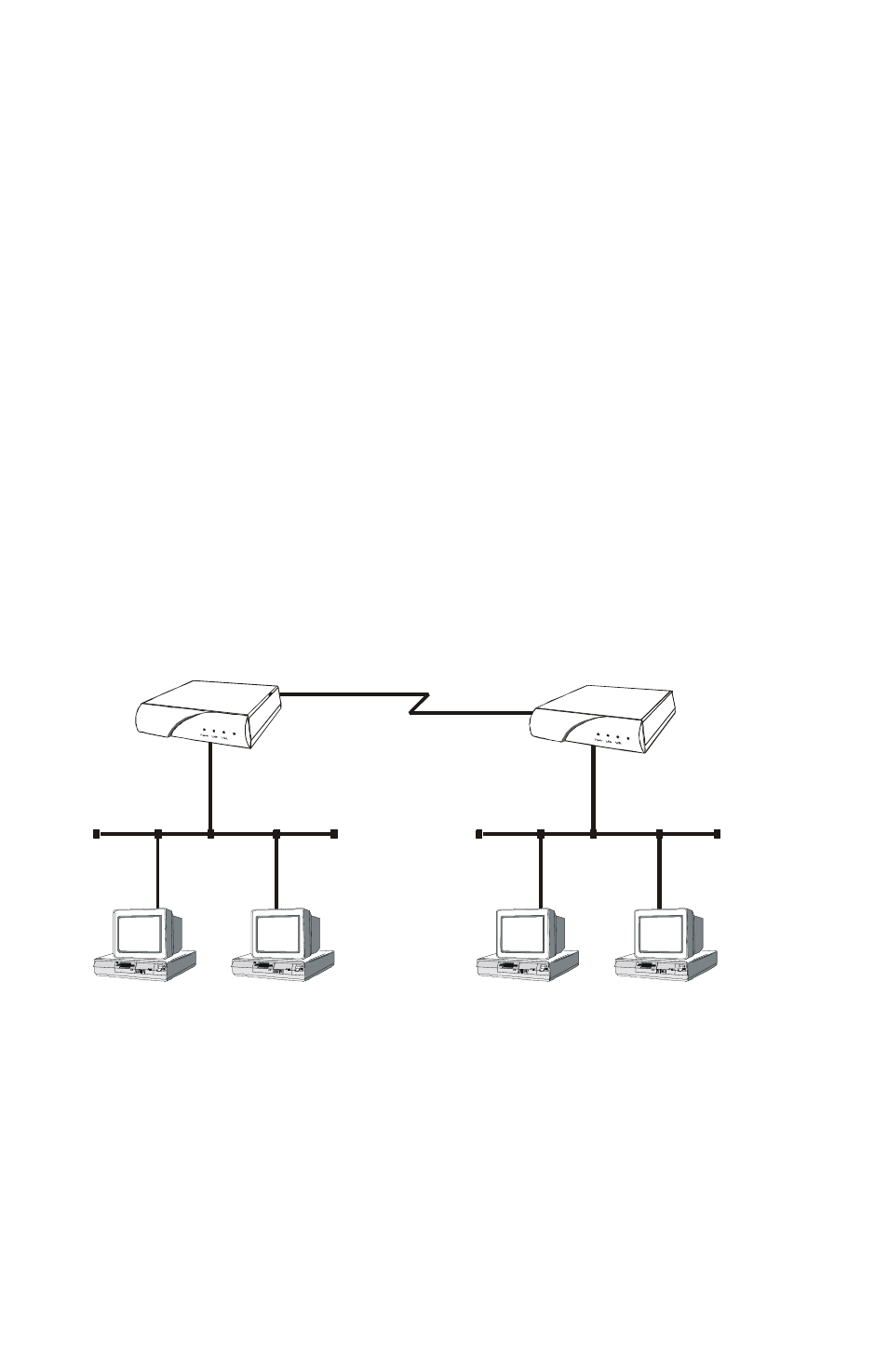

Figure 2 - 7 IPX Routed Local Area Networks

(Servers on both sides)

IPX routers forward IPX frames based upon their IPX destination

address and an internal routing table. The router maintains the internal

routing table with the remote network IPX addresses and the remote

partner IPX routers associated with those networks. When an IPX

frame is received from the local LAN, the destination IPX address is

WAN connection

Novell Server

Novell Server

Novell IPX Client

Novell IPX Client

LAN #1

IPX Network Address
1512

IPX Network Address
1500

LAN #2
