IOGear GCS1004 User Manual

Page 20

4. As you select a device from the list, its description appears in the Device Description

panel. After you have made your device selection(s), click Next to perform the upgrade.

Upgrade Successful
After the upgrade has completed, a screen appears to inform you that the procedure was suc-
cessful:

Click Finish to close the
Firmware Upgrade Utility.
After a successful
completion, the GCS1002
/ GCS1004 exits Firmware
Upgrade Mode, and resets.

Upgrade Failed
If the Upgrade Successful screen doesn’t appear, it means that the upgrade failed to complete
successfully, in which case you should do the following:

1. Power off the GCS1002 / GCS1004 by removing the power jack.
2. Invoke Firmware Upgrade Mode by holding down the front panel Port 1 pushbutton (see

page 19) and power on the GCS1002 / GCS1004.
- For GCS1002: The front panel LEDs flashes.
- For GCS1004: The LEDs for Port 3 and Port 4 will stay on, while the LEDs for Port 1
and Port 2 will stay off.

3. Follow the firmware upgrade procedure again.

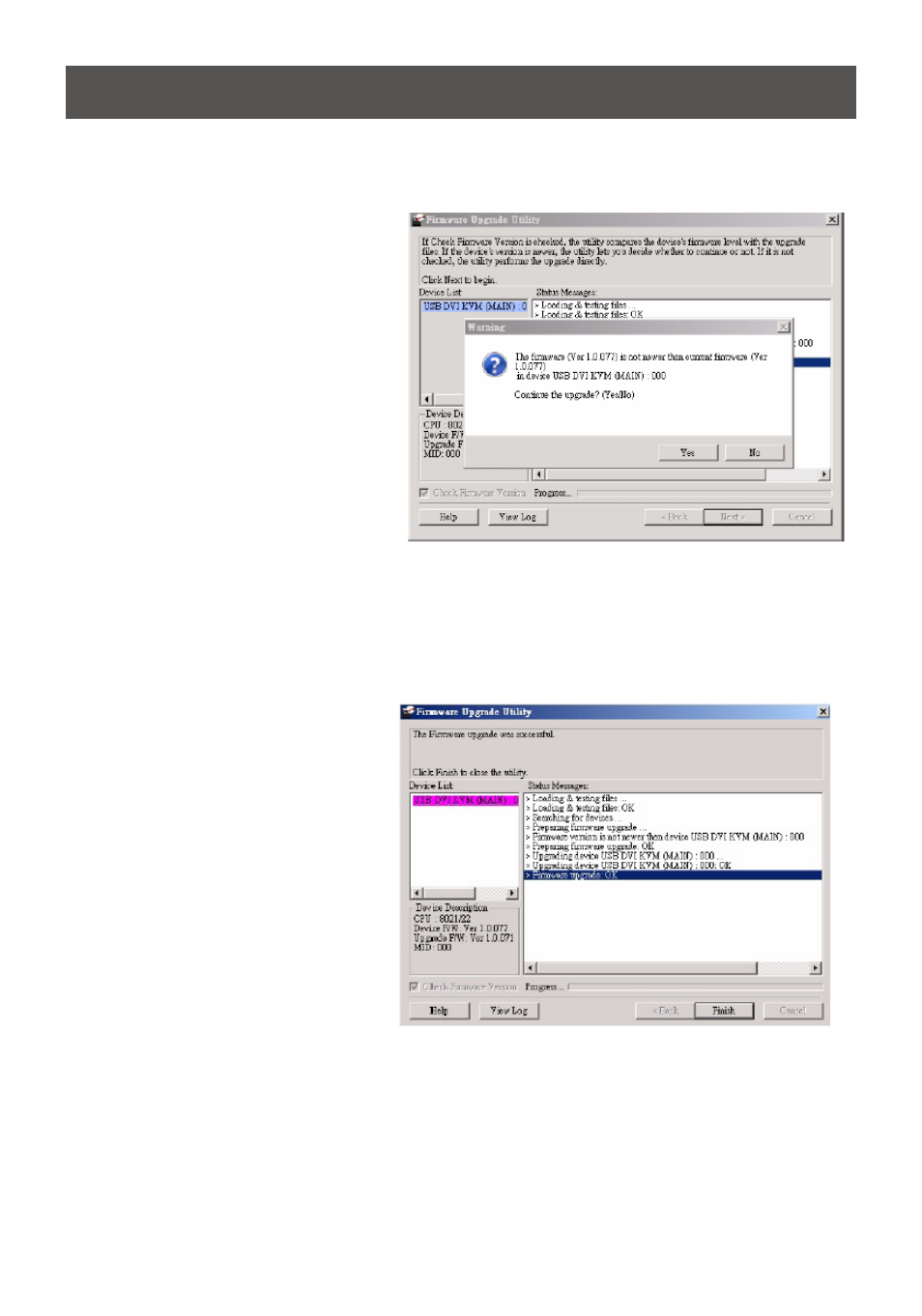

If you enabled Check
Firmware Version, the Utility
compares the device’s
firmware level with that of
the upgrade files. If the
device’s version is higher
than the upgrade version,
a dialog box gives you
the option to Continue or
Cancel.

If you didn’t enable Check
Firmware Version, the Utility in-
stalls the upgrade files without
checking whether they are a
higher level, or not.

As the Upgrade proceeds status messages appear in the Status Messages panel, and the
progress toward completion is shown on the Progress bar.

Function

GCS1002

GCS1004

Computer Connections

Console Connections

Port Selection

Hotkey, Mouse switch, Front panel pushbuttons

Connectors

Console
Ports

1 x USB Type A F (Iron)

Video

1 x DVI-D F (White)

Mouse

1 x USB Type A F (Iron)

Speakers

1 x Mini Stereo Jack F (Green)

Computer
Port 1

KB/
Mouse/
Video/
Speakers

1 x 44-pin Connector F

Computer
Port 2

KB/
Mouse/
Video/
Speakers

N/A

1 x 44-pin Connector F

Power

N/A

1 x DC Jack

Pushbuttons

2 (Green)

4 (Green)

Cable Length

4ft x 1 (44-pin)

4ft x 1 6ft x 1 (44-pin)

Power Consumption

DC 5.0V, 5.0W

DC 5.3V, 5.3W

Emulation

KB / Mouse

USB

Video

1920 x 1200 @60Hz; 1080p Full HD

Scan Interval

3, 5, 10, 20 seconds (5s default)

Environment

Operating Temp.

0-50ºC

Storage Temp.

-20-60ºC

Humidity

0-80% RH, Non-condensing

Physical
Properties

Housing

Metal

Weight

0.33kg

0.51kg

Dimensions (L x W x H)

12.30 x 7.54 x 2.28cm

19.80 x 7.54 x 2.28cm
