SECTION 4 - CONTROL COMPONENTS
3121228 – JLG Lift – 4-3
Traction Control Module
The Traction Control Module is mounted to the base frame
beneath the platform, under the drive motor cover.
This module controls the voltage to the drive motors as
regulated by the Ground Control Module from signals
received from the Joystick Controller located on the Plat-
form Control Module.
There are no internal parts serviced on this module.
Platform Control Console Installation
The platform control console is located in the platform and
mounted on the right side of the mast assembly.
For removal see below, for servicing information see Sec-
tion 4.5, Platform Control Console - Service Procedures.

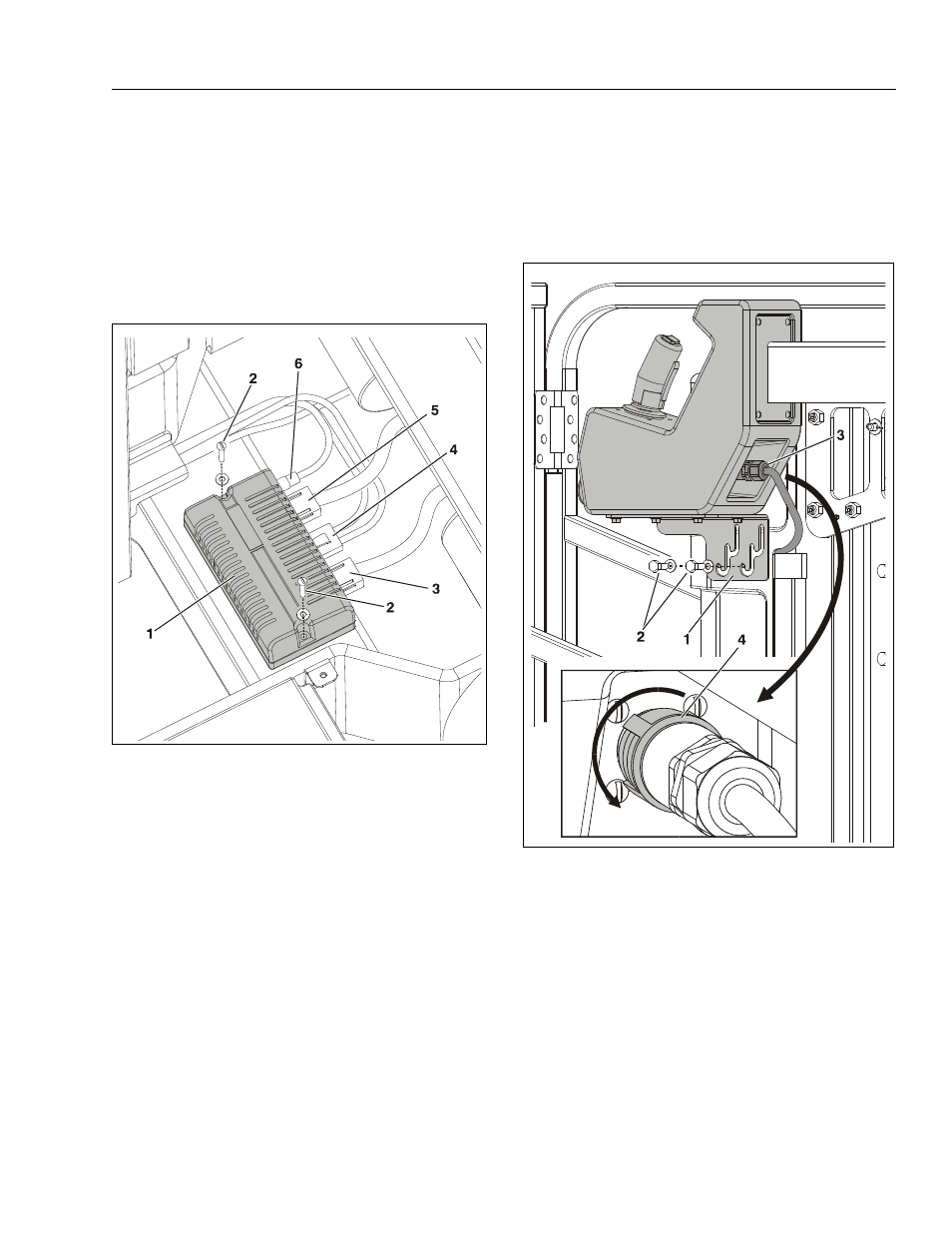

Traction Control Module - Installation
1. Traction Control Module
2. Module Mounting Screws/Washers (a)
3. Left Drive Motor Power Cable
4. +/– Power From Ground Control Station
5. Right Drive Motor Power Cable
6. Communication Cable from Ground Control Station
Note: (a) Apply Loctite #242 to mounting screw threads on final
assembly.
Platform Control Console - Installation
1. Console (3-Level) Mounting Bracket
2. Mounting Bracket Screws and Washers
3. Platform Console to Junction Box Harness (a)
4. Harness Connector - Removal Nut
Note: (a) The other end of this harness is plugged into the plat-
form junction box mounted to the mast under the platform.
From the platform console the harness is run under the
mast cover, is tie strapped to the top platform attach sup-
port, and run inside the mast down and out the bottom
rectangular hole. Then runs down along the outside of the
mast and through a large hole in the mast to the platform
junction box.
