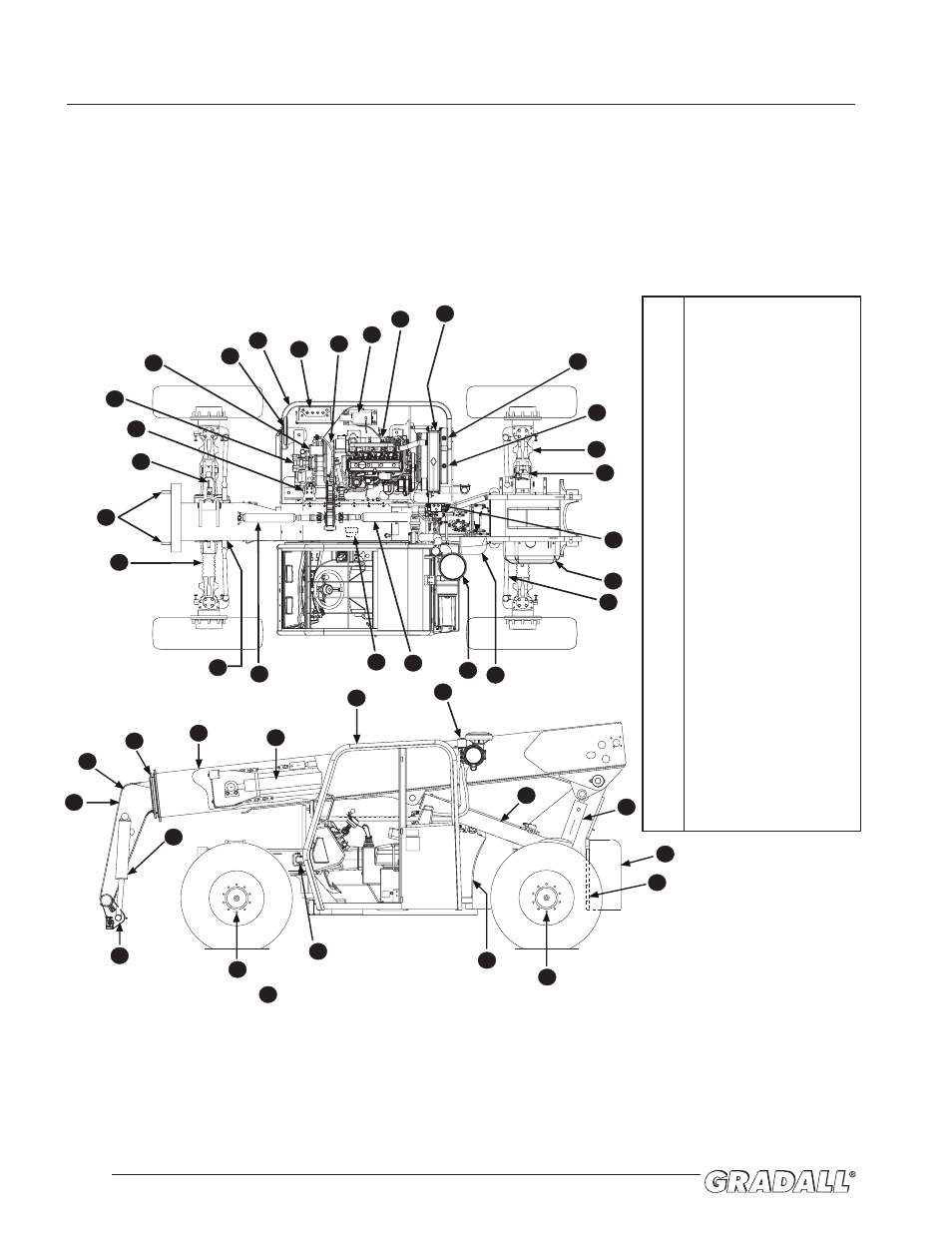

NOMENCLATURE
43
1. FRONT AXLE
2. TIE-DOWN LUGS
3. SWAY CYLINDER
4. HYDRAULIC
TANK & FILTER
5. IMPLEMENT PUMP
6. TRANSMISSION
OIL FILTER
7. ENGINE COMPARTMENT
8. MIRROR
9. BATTERY
10. TRANSMISSION
11. AUXILIARY HYD PUMP
12. ENGINE
13. RADIATOR
14. HYDRAULIC OIL COOLER
15. TRANSMISSION OIL
COOLER
16. REAR AXLE
17. STABILIZER CYLINDER
18. PRIORITY VALVE
19. PILOT CONTROL VALVE
20. STEERING CYLINDER
21. MAIN CONTROL VALVE
22. AIR CLEANER
23. REAR DRIVE SHAFT
24. STEER SELECT VALVE
25. FRONT DRIVE SHAFT
26. STEERING CYLINDER
27. BOOM HEAD
28. THIRD BOOM SECTION
29. SECOND BOOM SECTION
30. FIRST BOOM SECTION
31. CROWD CYLINDER
32. OPERATOR’S CAB
33. HYD TANK BREATHER
34. LIFT CYLINDER
35. COMPENSATION
CYLINDER
36. COUNTERWEIGHT
37. TIE-DOWN LUGS
38. REAR LUG NUTS
39. FUEL TANK
40. REMOTE BRAKE VALVE
41. FRONT LUG NUTS
42. ATTACHMENT TILT
CYLINDER
43. QUICKSWITCH™
40
44
28
29
27
30
31
32
33
34
35
36
37
38
39
41
42
DO NOT GO NEAR LEAKS C 10814B * High pressure oil easily punctures skin causing serious injury, gangrene or death. * If injured, seek emergency medical help. Immediate surgery is required to remove oil. * Do not use finger or skin to check for leaks. * Lower load or relieve hydraulic pressure before loosening fittings.
1
2
3
4
5
6
7
8
9
10
12
13
14
20
16
18
15
21
24
25
23
26 22
19
17
11
MAINTENANCE
19.0
