SECTION 3 - MACHINE OPERATION

3121227

– JLG Lift –

3-31

Vehicle Transport - Tied-Down Using the Tie-Down

Loops

With the machine on the transport vehicle in position to be tied
down, and machine powered down (brakes engaged), use the fol-
lowing guidelines for restraining the machine during transport.

USE OF EXCESSIVE FORCE WHEN SECURING MACHINE (WHEEL
LOAD), CAN CAUSE DAMAGE TO THE MACHINES REAR DRIVE OR
FRONT CASTER WHEEL COMPONENTS.

1. Secure machine to the transport vehicle with adequate

chains or straps attached through the tie down loops located
at the front and rear of machine.

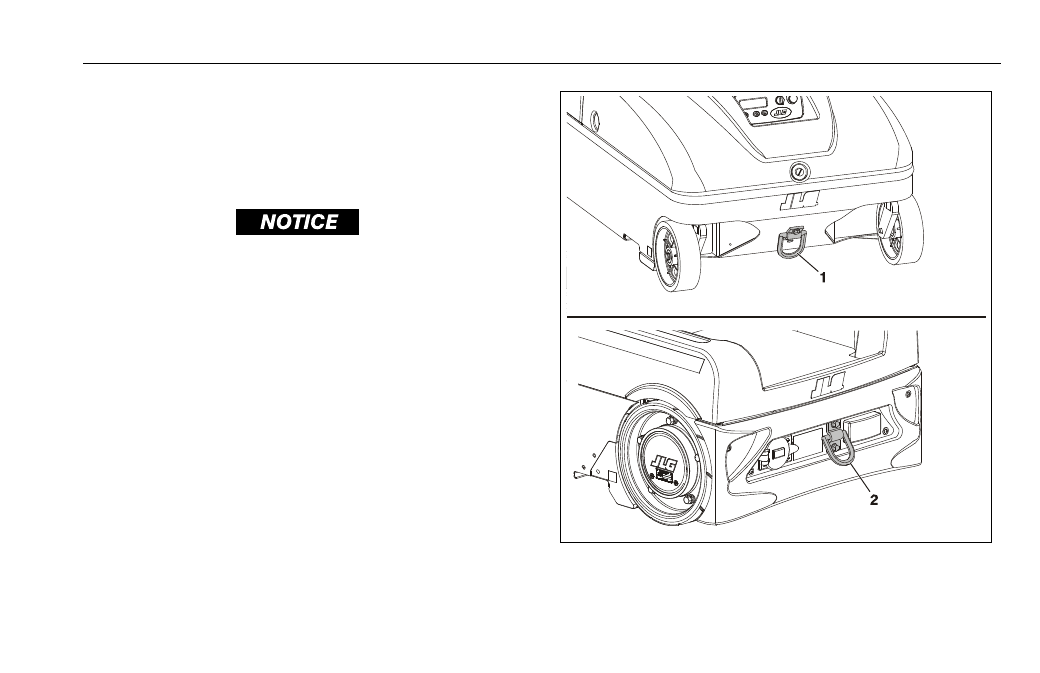

Figure 3-13. Front and Rear Tie-Down Loop.

1. Front Tie-Down Loop

2. Rear Tie-Down Loop
