SECTION 3 - MACHINE OPERATION

3-16

– JLG Lift –

3121227

Drive Motor Brush Wear Warning
(Counts down 25 hrs. of DRIVE
operation remaining to a 10 sec.
shut down mode)

Drive Motor Brushes Require Ser-
vice Replacement -
(See Section 5.7 on page 5-16 for
further Instructions)

Traction Module Over Temperature
(DRIVE Disabled)

Allow Drive System Traction Mod-
ule to Cool Before Operating
(Caused by extreme temperature)

Ground Control Module Over Tem-
perature (Machine Stopped)

Allow Ground Control Module to
Cool Before Operating -
(Caused by extreme temperature)

Pump Motor Over Current
(LIFT UP Disabled)

Platform Load Over Capacity

—

Aux. #1 - Platform Gate Open or
No Pressure on the Platform Foot-
switch

Close Platform Gate or Depress
Platform Footswitch during
machine operation

—

Aux. #1 - Platform Footswitch
depressed during Machine Power-
up

Do Not Press on Platform Foot-
switch during Machine Power-Up

NOTE: The fault conditions shown in this table are fault conditions which the Operator may be able to resolve. Should a fault occur which cannot be cor-

rected at the Operator’s level, the problem must be referred to a mechanic qualified to repair this model of JLG Lift. A complete table of Fault Codes

is listed in the TroubleShooting Section of the Service and Maintenance Manual.

Table 3-2. LCD Display - Operating Fault Conditions (Continued)

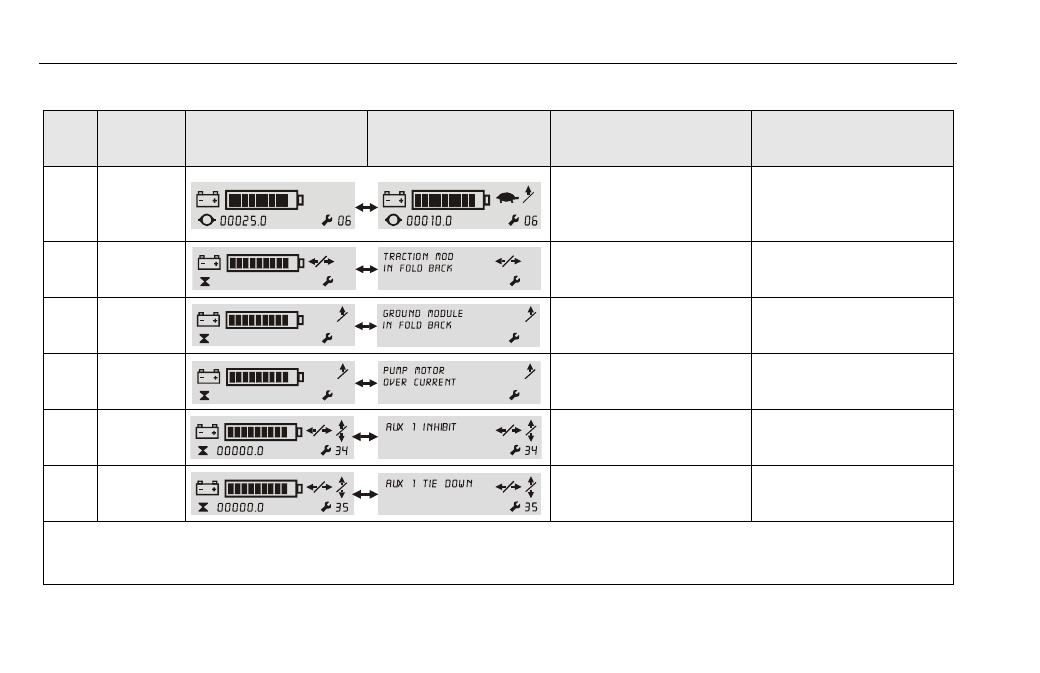

FAULT

CODE

PLATFORM

LEDs

FLASHING

LCD SYMBOL SCREEN

LCD TEXT SCREEN

FAULT DESCRIPTION/
MACHINE CONDITION

TO CORRECT PROBLEM

00000.0
