SECTION 6 - TROUBLESHOOTING
6-4 – JLG Lift – 3121187

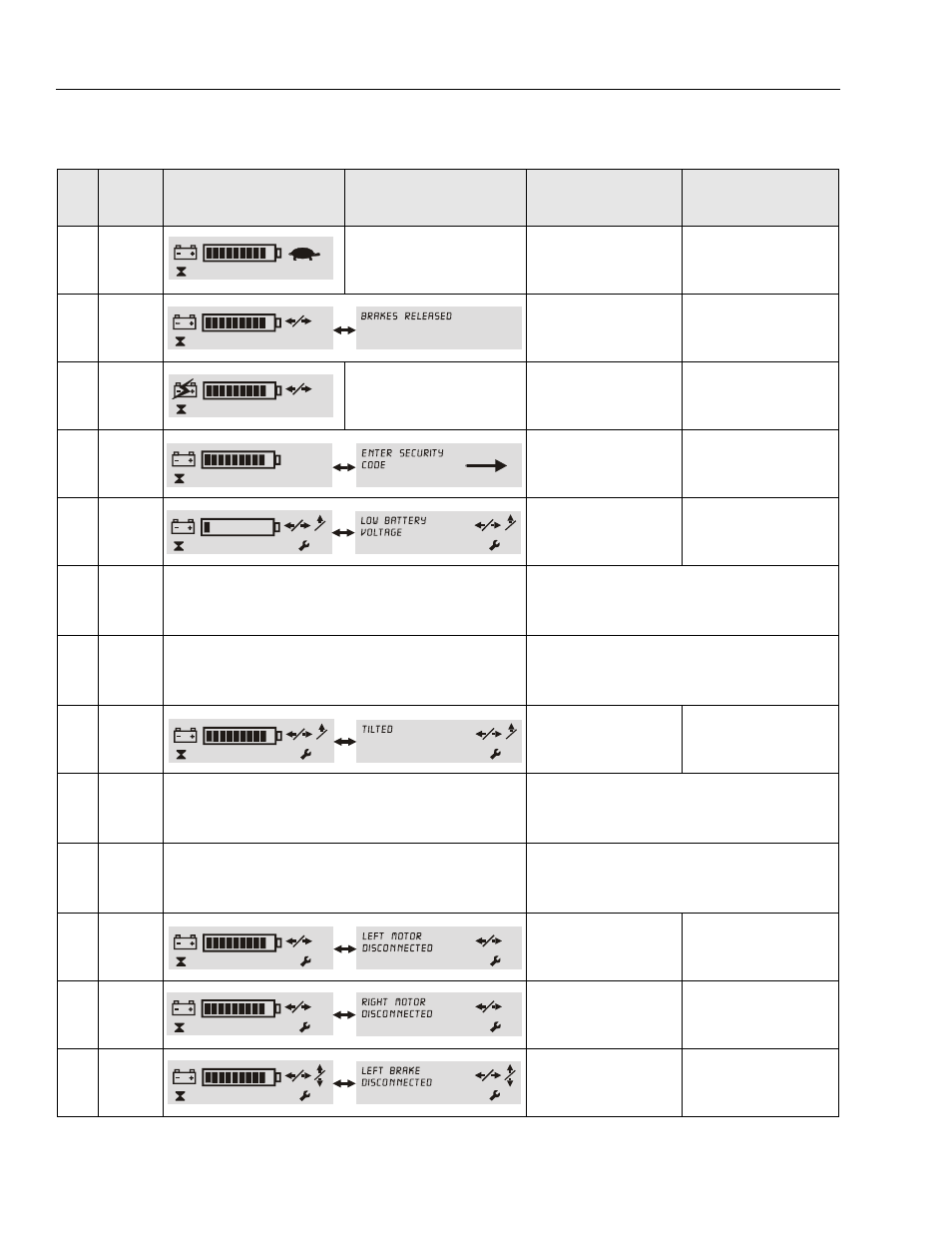

Table 6-1. LCD Display - Service Fault Code Conditions
FAULT
CODE
PLATFORM
CONSOLE
LEDs
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION
TROUBLESHOOTING
— — —
Machine In Drive Speed
Cut-Back (Turtle) Mode
All The Time
See Table 6-5,
Page 6-11
— —
Brakes Released
DRIVE Disabled
Engage Brakes -
Press Brake Release Button
on Ground Control Station
— — —
Charger AC Plugged In
DRIVE Disabled
Unplug Charger
AC Input Power Cord
from Machine
— —
Programmable Security
Lock Password
Type in Code At PSL Key Pad
See Operators Manual for
Proper Operation
01 1 Low Battery Voltage
See Table 6-6,
Page 6-12
02 2 RESERVED RESERVED
03 2 RESERVED RESERVED
04 3
Tilt Condition
(Platform Elevated)
DRIVE and Lift UP Disabled
See Table 6-7,
Page 6-13
05 — RESERVED RESERVED
06 — RESERVED RESERVED
07 6
Left Drive Motor
Disconnected
DRIVE Disabled
See Table 6-8,
Page 6-13
08 6
Right Drive Motor
Disconnected
DRIVE Disabled
SeeTable 6-9,
Page 6-14
09 6
Left Brake Disconnected
DRIVE, Lift UP/DOWN
Disabled
See Table 6-10,
Page 6-14
00000.0
00000.0
00000.0
00000.0
01 01 00000.0
04 04 00000.0
07 07 00000.0
08 08 00000.0
09 09 00000.0
