SECTION 4 - CONTROL COMPONENTS
3121187 – JLG Lift – 4-11

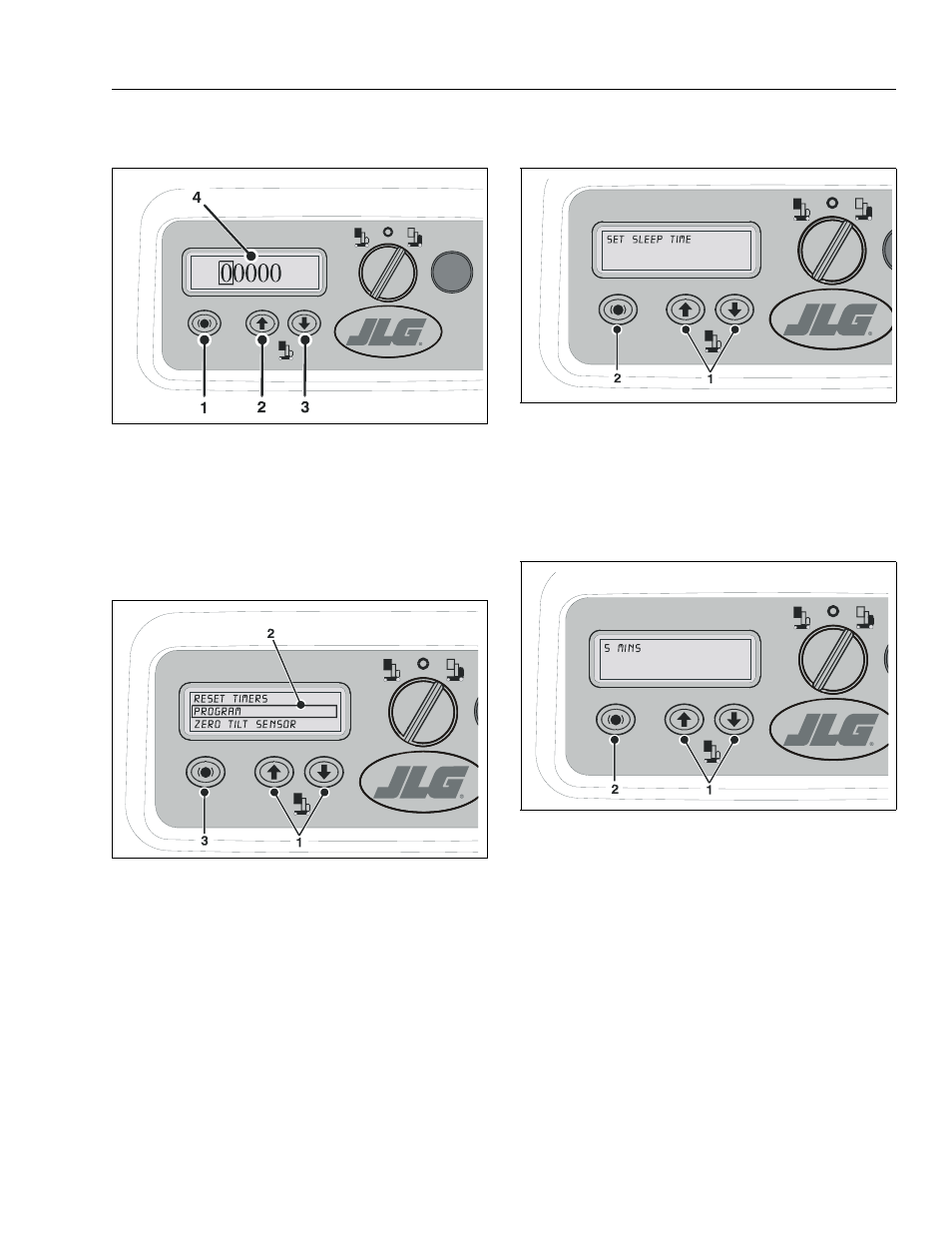

Entering Password
Programming Mode Selection
Selecting Programmable Item to Adjust
Adjusting Programmable Setting
TO EXIT Programming Mode after entering program-
mable settings, power machine off with either the Main
Power Selector Switch or Emergency Stop Button.
Entering Password
1. The Brake Release button (1) moves the box (around digit) from
left to right to select which digit to change.
2. Platform UP button (2) increases the numerical digit.
3. Platform DOWN button (3) decreases the numerical digit.
4. Change all five digits (4) to match password level, then press
the Brake Release button (1) again.
Programming Mode Selection
1. Use Platform UP/DOWN buttons (1) to move the selection box
(2) up or down to select item to program.
2. Press the Brake Release button (3) to enter selected mode then
move on to Selecting Programmable Item to Adjust.
Selecting Programmable Item to Adjust
1. Use the Platform UP/DOWN buttons (1) to scroll through the list
of programmable items available to your programming level.
2. Once a programmable item to be adjusted is selected, press the
Brake Release button (2) to enter that settings’ adjustment
mode.
Adjusting Programmable Setting
1. Adjust the programmable setting using the Platform UP/DOWN
buttons (1), see Table 4-1 on Page 4-13 for range of settings for
the item selected.
2. Once parameter is set for the programmable item, press the
Brake Release button (2), this will enter the parameter and
return you to the Programmable Settings Menu.
