SECTION 3 - BASE COMPONENTS

3-12

– JLG Lift –

3121187

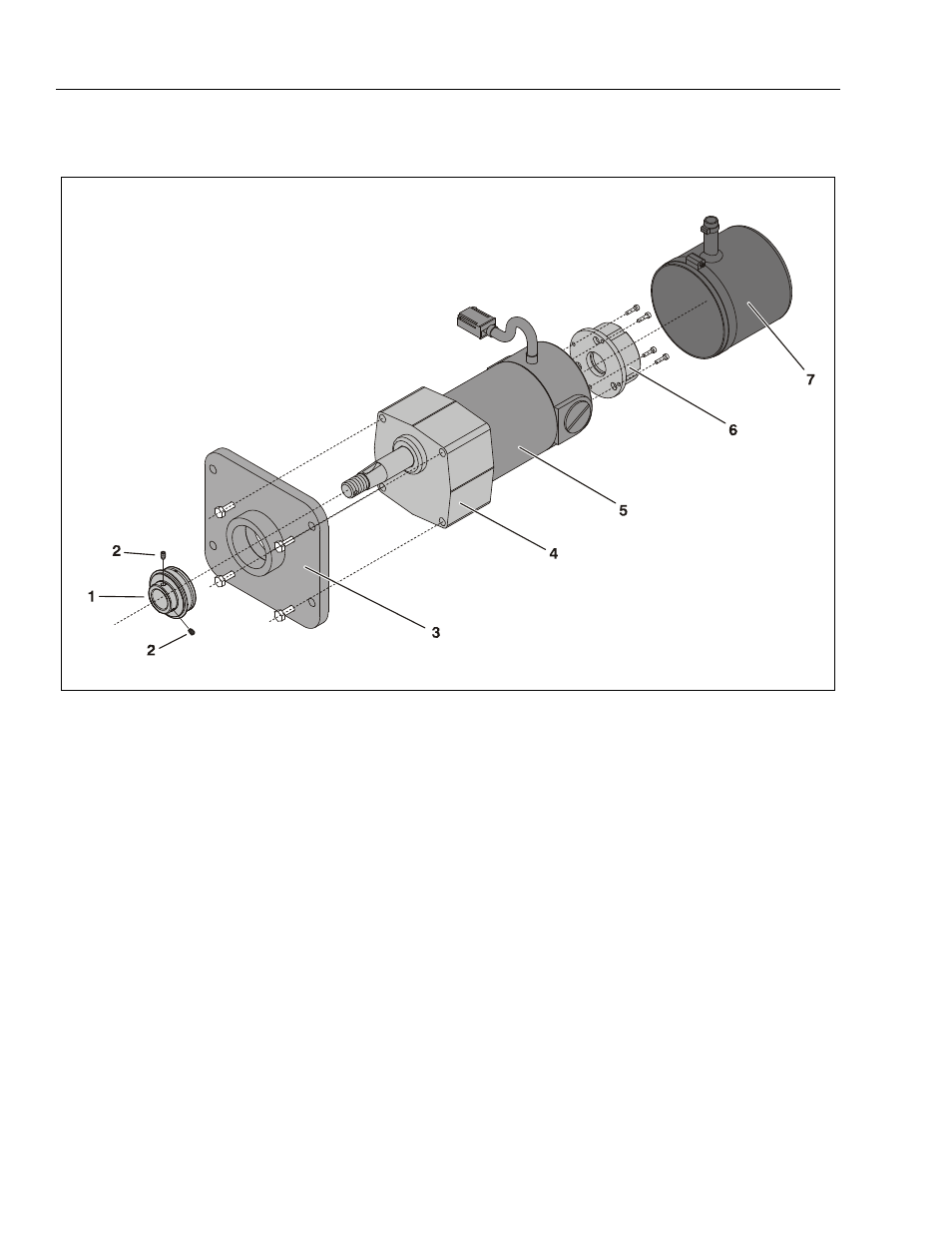

Drive Motor Assembly - Components

Drive Motor Assembly - Components

1. Drive Shaft Bearing (a)
2. Bearing Set Screws (b)
3. Motor Mount/Bearing Frame (c)
4. Drive Gear Box - 32:1 Ratio

5. Electric Drive Motor (d)
6. Drive Motor Brake
7. Motor/Brake Boot (e)

NOTE: (a) Once motor is mounted to motor mount/bearing frame, slide drive shaft bearing into frame till it is seated.

(b) Tighten bearing set screws once bearing is seated in motor mount/bearing carrier.
(c) Apply Loctite #242 to threads of motor mount screws at final assembly.
(d) Electric Motor harness contains both the drive motor and the brake leads. The motor leads are negative (–) lead is BLACK and
positive (+) lead is WHITE.
(e) Mount boot with electrical lead sleeve at top and condensation drain hole in boot on bottom.
