SECTION 3 - MACHINE OPERATION
3121186 – JLG Lift – 3-21
3.11 PLATFORM CONTROL CONSOLE OPERATION
1. On/Off Key Switch -
(See page 3-22)
2. Emergency Stop/Shut Down Switch -
(See page 3-23)
3. Function Enable Lever - (on front of joy-
stick) (See page 3-25)
4. Multifunction Joystick Control -
(See page 3-26)
5. Drive Speed Setting Selector Switch -
(See page 3-28)
6. Platform Control Display Panel -
(See page 3-23)
7. Horn Button - (See page 3-29)
8. Drive/Lift Mode Selector Switch -
(See page 3-25)
9. Console Mounting Bracket -
3 Position Height Adjustment -
(on bottom of console box)

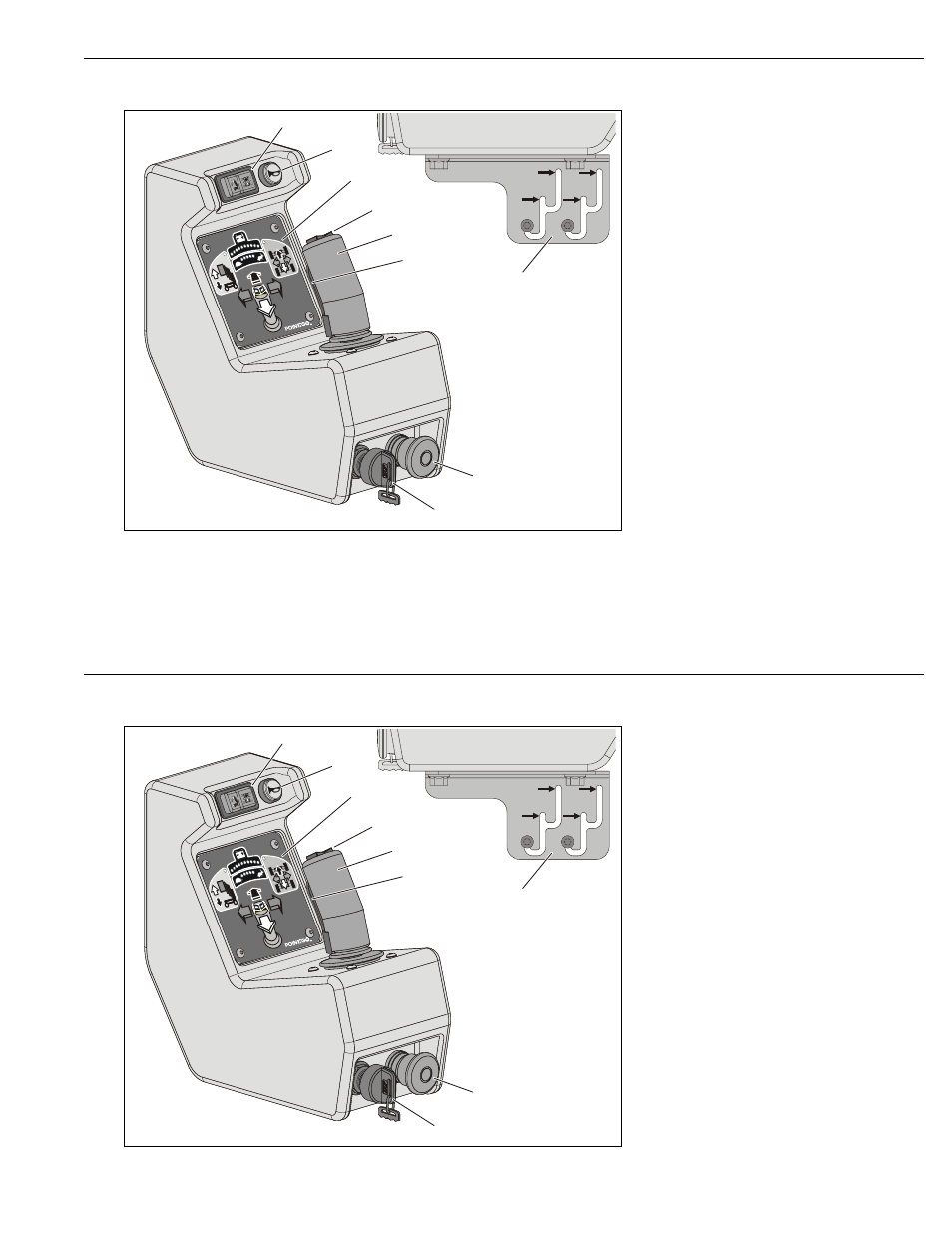

Figure 3-8. Platform Control Console.
