SECTION 3 - MACHINE OPERATION
3121186
– JLG Lift –
3-1
SECTION 3. MACHINE OPERATION
SSV10
Maximum Occupants:
1
Maximum Work Load (Capacity):
(See Table 3-4 on
page 3-18)
Maximum Travel Grade (Gradeability):
(Platform STOWED ONLY)
15%
Maximum Side Slope Travel:
(Platform STOWED ONLY)
5°
Tilt Alarm Cut Out Limit: (Any Direction)
(Platform ELEVATED)
1.5°
Machine Height (Platform Stowed)
57 in. (1.44m)
Maximum Vertical Platform Height:
10 ft. (3m)
Maximum Wheel Load (Per Wheel):
650 lb. (295 kg)
Maximum Drive Speeds
(Operator Variable):
0.6 - 4 mph
(0.9 - 6.4 kph)
Max. Platform Speeds (w/Max. Load):
Platform Up:
13 sec.
Platform Down:
9-13 sec.
Gross Machine Weight
(Standard Equipment/Platform Empty):
1000 lb. (454 kg)
Table 3-1. SSV10 - Machine Operating Specifications

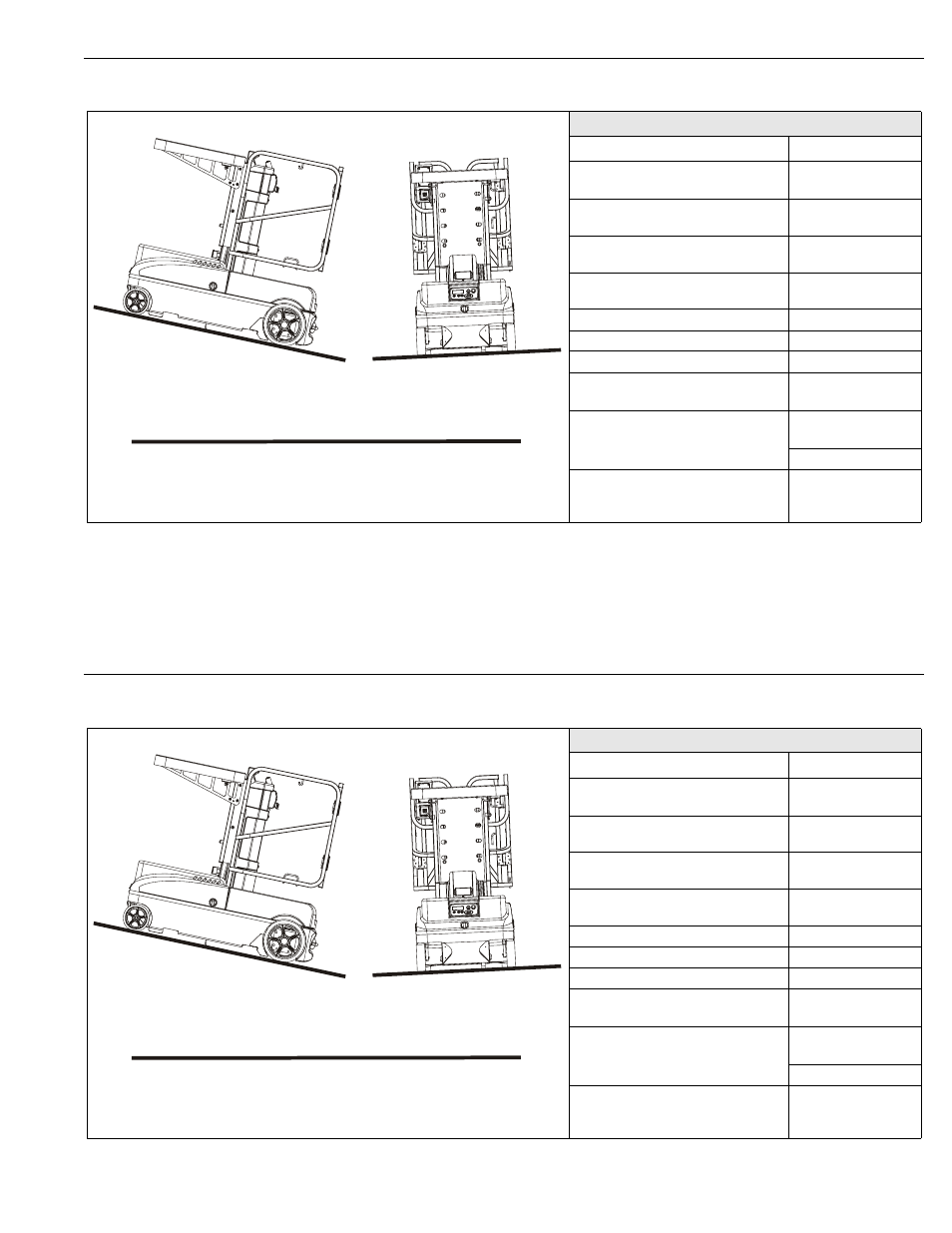

GRADEAB
ILITY
LEVEL
DO NOT DRIVE MACHINE ON GRADES EXCEEDING
THOSE SPECIFIED ON THE MANUFACTURER’S NAMEPLATE
SIDE SLOPE
