SECTION 3 - MACHINE OPERATION
3121186 – JLG Lift – 3-7
Battery Charger Location
SSV10 machines are equipped with an AC voltage input/DC volt-
age output battery charger. The charger automatically terminates
charging when the batteries reach full capacity.
NOTE: The machine’s platform drive function is disabled when
the battery charger is plugged into an AC receptacle.

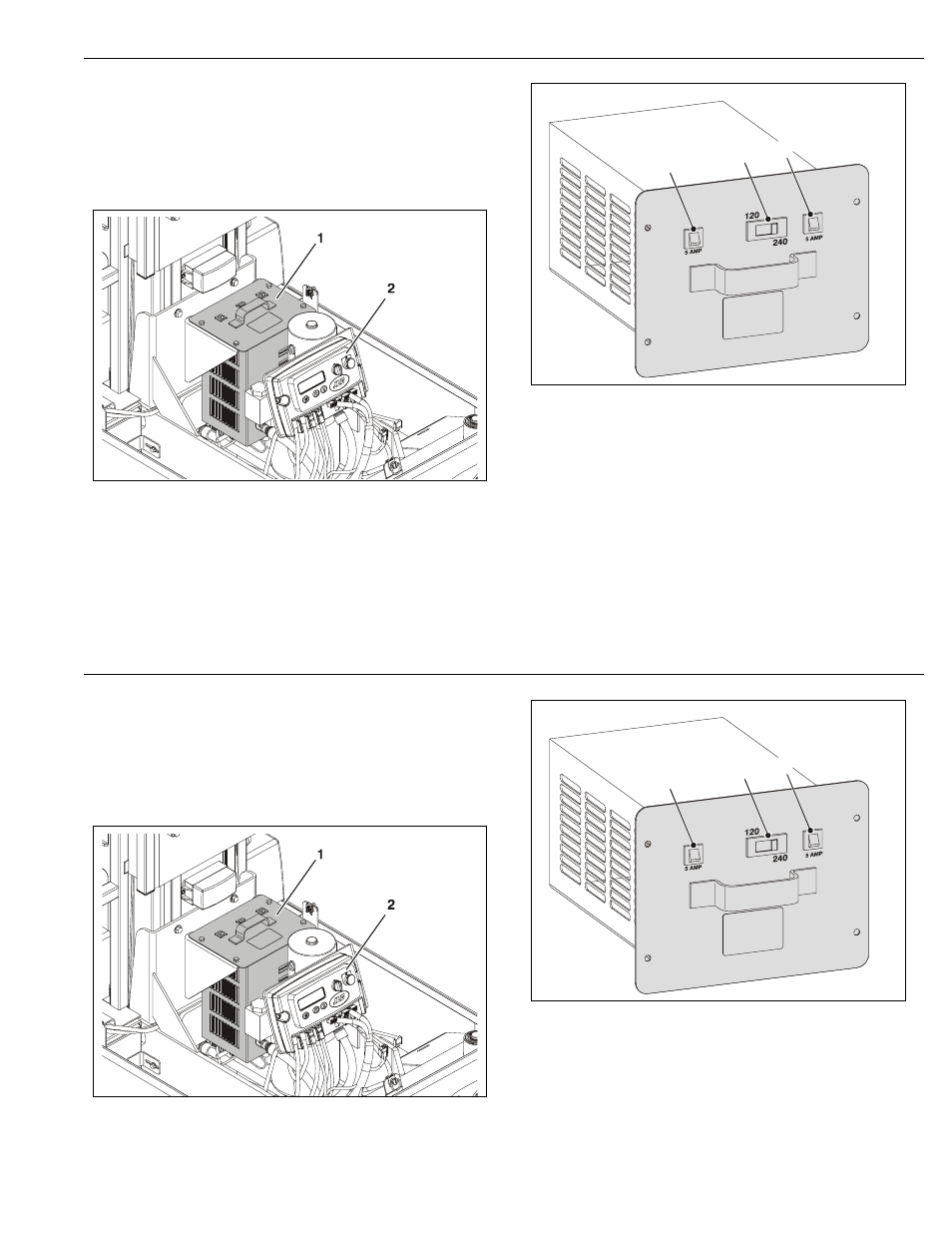

Figure 3-2. Battery Charger Location
(Hood Removed - For Hood Removal, See page 3-8).
1. Battery Charger 2. Ground Control Station
Battery Charger Front Panel
1. 120V/5 Amp Breaker
2. AC Input Voltage Selector 3. 240V/5 Amp Breaker
1
2
3
