Transmission
6-2 G6-42A, G9-43A, G10-43A
6.1 TRANSMISSION ASSEMBLY
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the transmission.

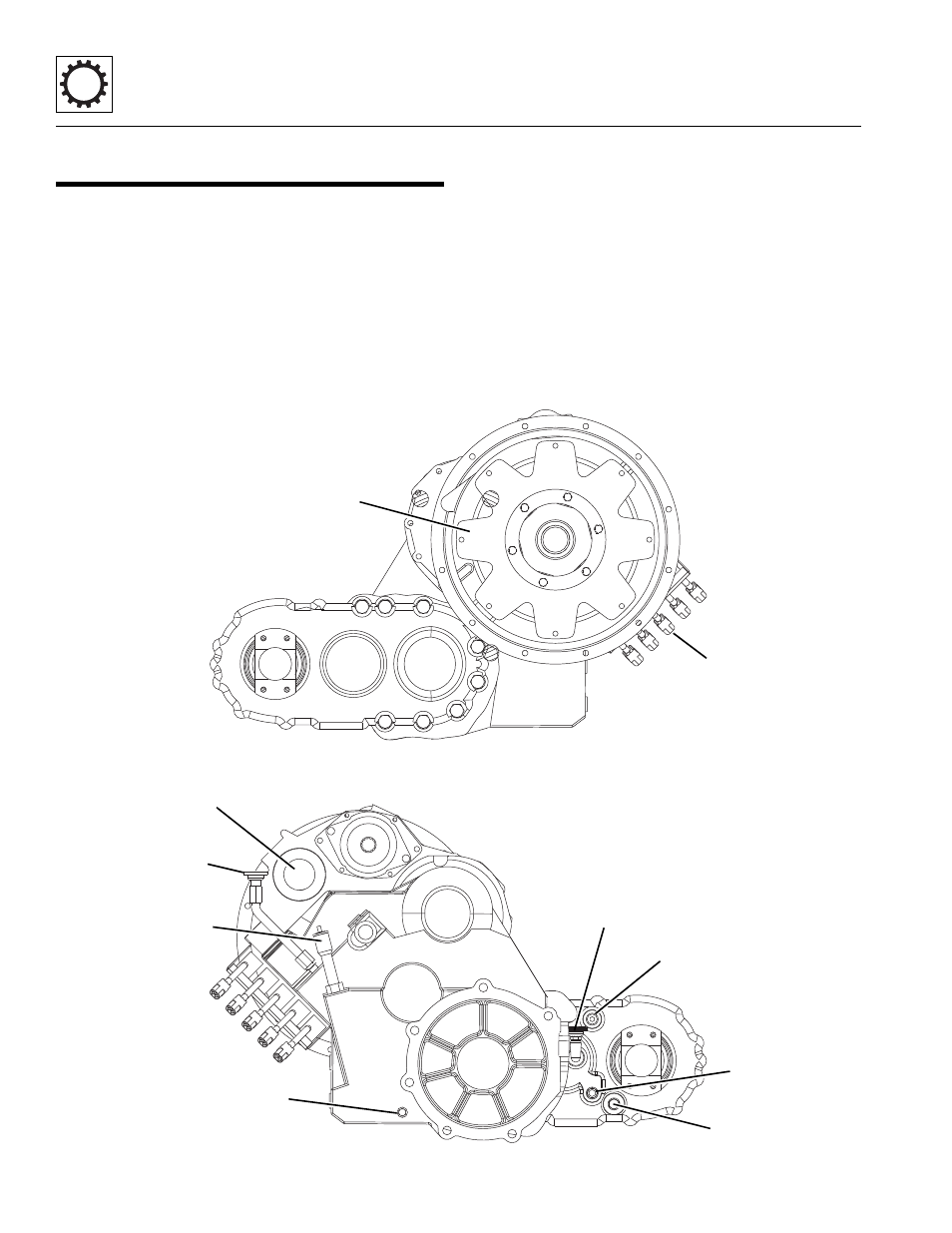

The following illustration identifies the components that
are referred to throughout this section.
6.1.1 General Overview
a. G6-42A - Before S/N 0160040678
G9-43A/G10-43A - Before S/N 0160040675 excluding 0160040468 & 0160040672
MY0270
SHIFT
SOLENOIDS
FLEX PLATE
ASSEMBLY
MAGNETIC
DRAIN PLUG
TRANSFER CASE
BREATHER
OIL FILL
PLUG
OIL DRAIN
PLUG
OIL LEVEL
SIGHT GAUGE
TRANSMISSION
FILL TUBE AND
DIPSTICK
TRANSMISSION
BREATHER
TRANSMISSION
FILTER
