Electrical System
9-6
G10-55A, G12-55A
9.2
SPECIFICATIONS
Electrical system specifications are listed in Section 2,
“General Information and Specifications.”
9.3
SAFETY INFORMATION
9.4
FUSES AND RELAYS

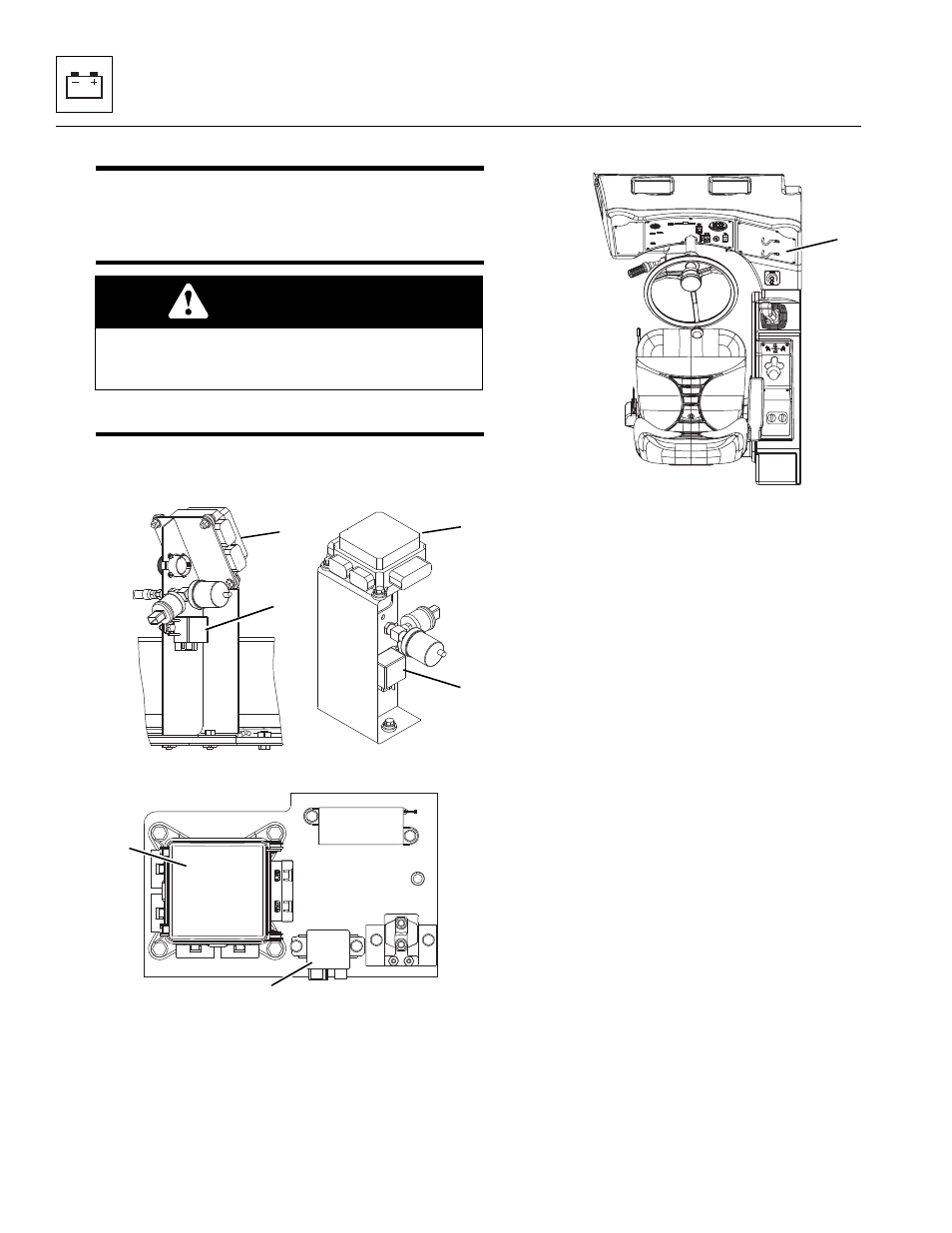

9.4.1
Engine Compartment
The starter relay (1) and power distribution unit (2) is
located on the power distribution unit bracket in the
engine compartment.
9.4.2
Cab
The optional power distribution unit is located in the cab.
For access, remove the screws securing the load chart
panel (3) to the dash.
WARNING
DO NOT service the machine without following all
safety precautions as outlined in Section 1, “Safety
Practices,” of this manual.
MY1800
1
2
2
1
JOHN DEERE
PERKINS
MY4550
1
2
CUMMINS
MY0410
TILT SPEED
CONTROL
3
