SECTION 6 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE

3128790

– JLG Lift –

6-15

Replacing Rubber Tracks

1. Elevate the machine on firm, level and uniform surface

utilizing the outriggers.

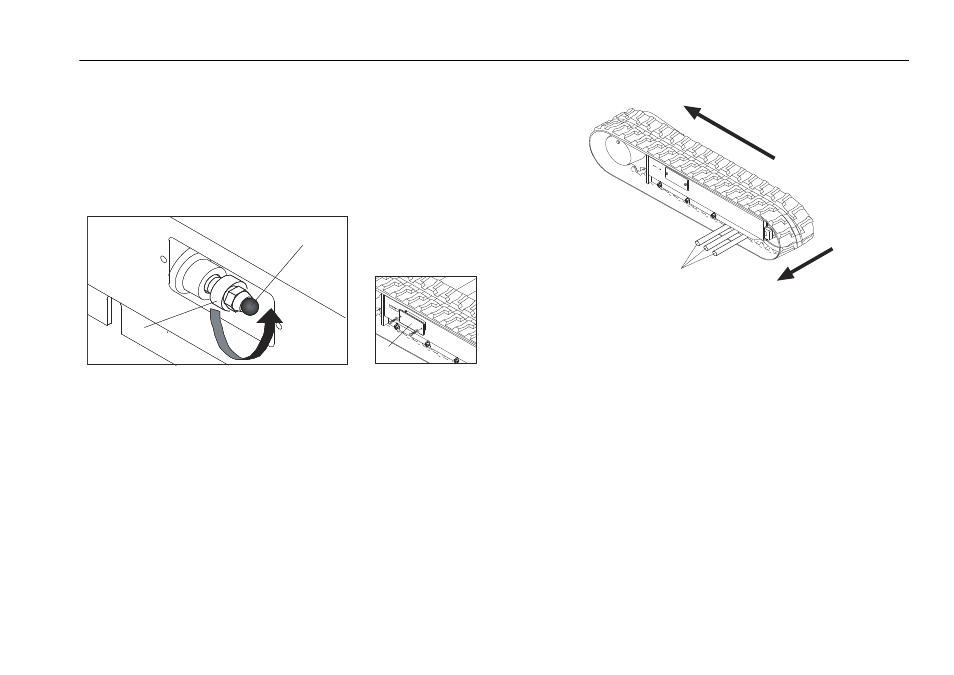

2. Remove the screws and remove cover 3 as shown in fig-

ure.

3. To loosen the track, slowly unscrew valve 1 in a counter-

clockwise direction. Do NOT exceed one (1) rotation.

4. Allow grease to drain. If grease does not drain, slowly

rotate the track.

5. Insert three steel pipes 4 between the rollers of the track.

Turn the driving wheel backwards 5 to engage the track
tensioning wheel. Apply an outward force 6 to lift the
track from the track tensioning wheel.

Installation of Rubber Track

1. Ensure all hydraulic cylinder grease have been removed

2. Align the track links with the wheel teeth. Position the

other end of the track on the track tensioning wheel

3. Slowly rotate the drive wheel in reverse while, using one

steel pipe, pushing the track plate inside the frame.

4. Verify the track links have engaged the wheel teeth in the

track tensioning wheel

5. Adjust track tension (see Loosening/Tightening track

section).
