Cab and Covers
4-2
L2906H, 2906H, 3507H, 619A, 723A, 29.6LP, 29.6, 35.7
4.1
OPERATOR CAB AND COVERS
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the machine cab and

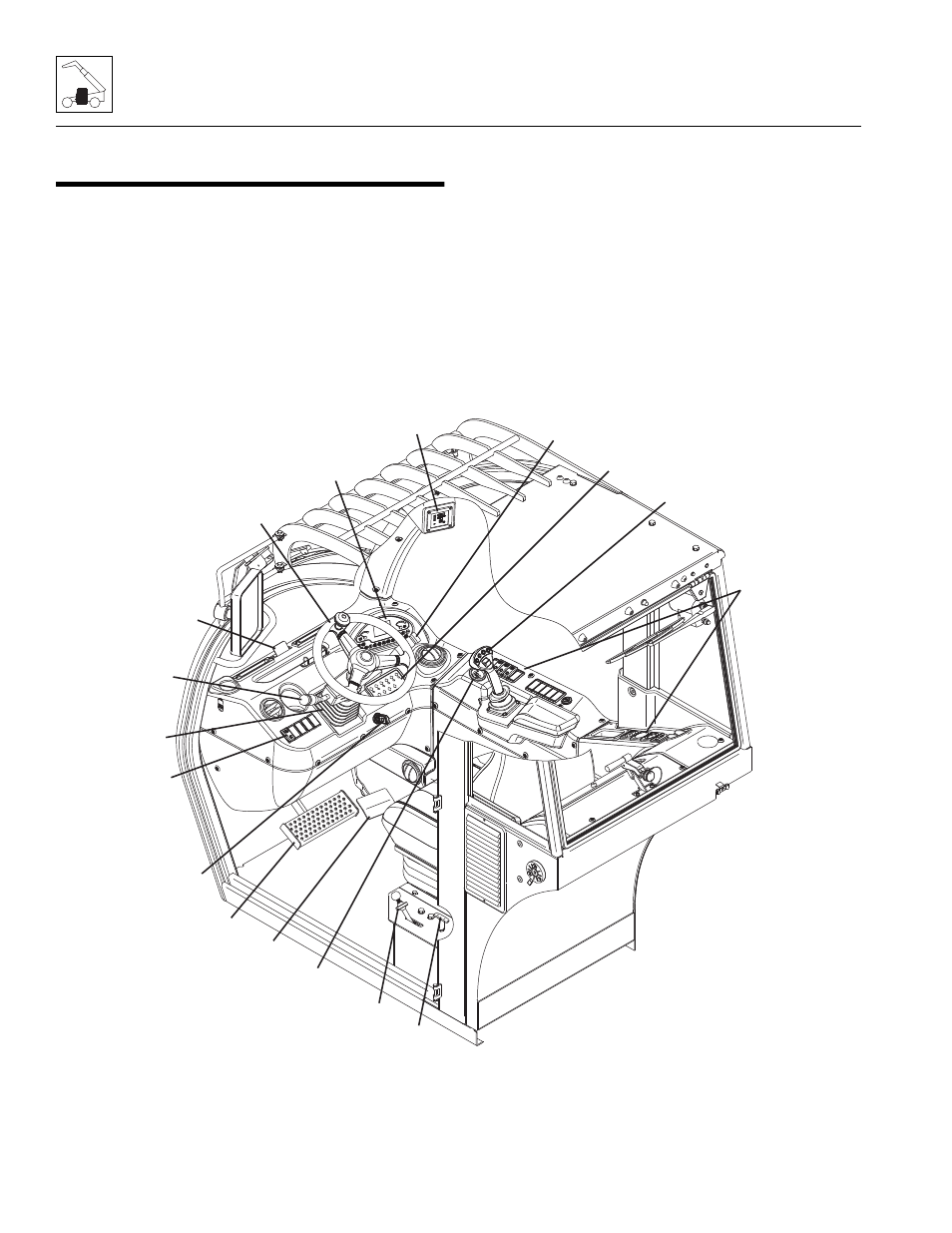

covers. The following illustration identifies the
components that are referred to throughout this section.
MZ5300
FRONT CONSOLE
SWITCHES
SERVICE BRAKE PEDAL
JOYSTICK
TRANSMISSION
CONTROL LEVER
INSTRUMENT
PANEL
PARK BRAKE LEVER
ACCELERATOR PEDAL
IGNITION SWITCH
ADJUSTABLE
STEERING COLUMN
HYDRAULIC HITCH SAFETY
HOOK RELEASE
(IF EQUIPPED)
STEERING WHEEL
KEYPAD
ENGINE OIL
TEMPERATURE GAUGE
(723A, IF EQUIPPED)
FRAME LEVEL
INDICATOR
LSI INDICATOR
(L2906H, 2906H, 3507,
29.6LP, 29.6 & 35.7)
ACCESSORY CONTROL LEVER
(IF EQUIPPED)
SIDE CONSOLE
SWITCHES
