Concentrator plus/Vacufuge® plus — Operating manual
24
Connecting vacuum pumps up to 350 W
Requirement
•
Power consumption of the vacuum pump: max. 350 W or electrical connection value max.
400 VA.
•
Special plug for control and power supply of the vacuum pump (see Accessories on p. 43)
•
1 connecting hose (length: max. 50 cm, inner diameter: 8 mm, chemical resistant and suitable
for vacuum applications).
Abb. 2:
Special plug for control and power supply of a vacuum pump with a power consumption of up to 350 W.

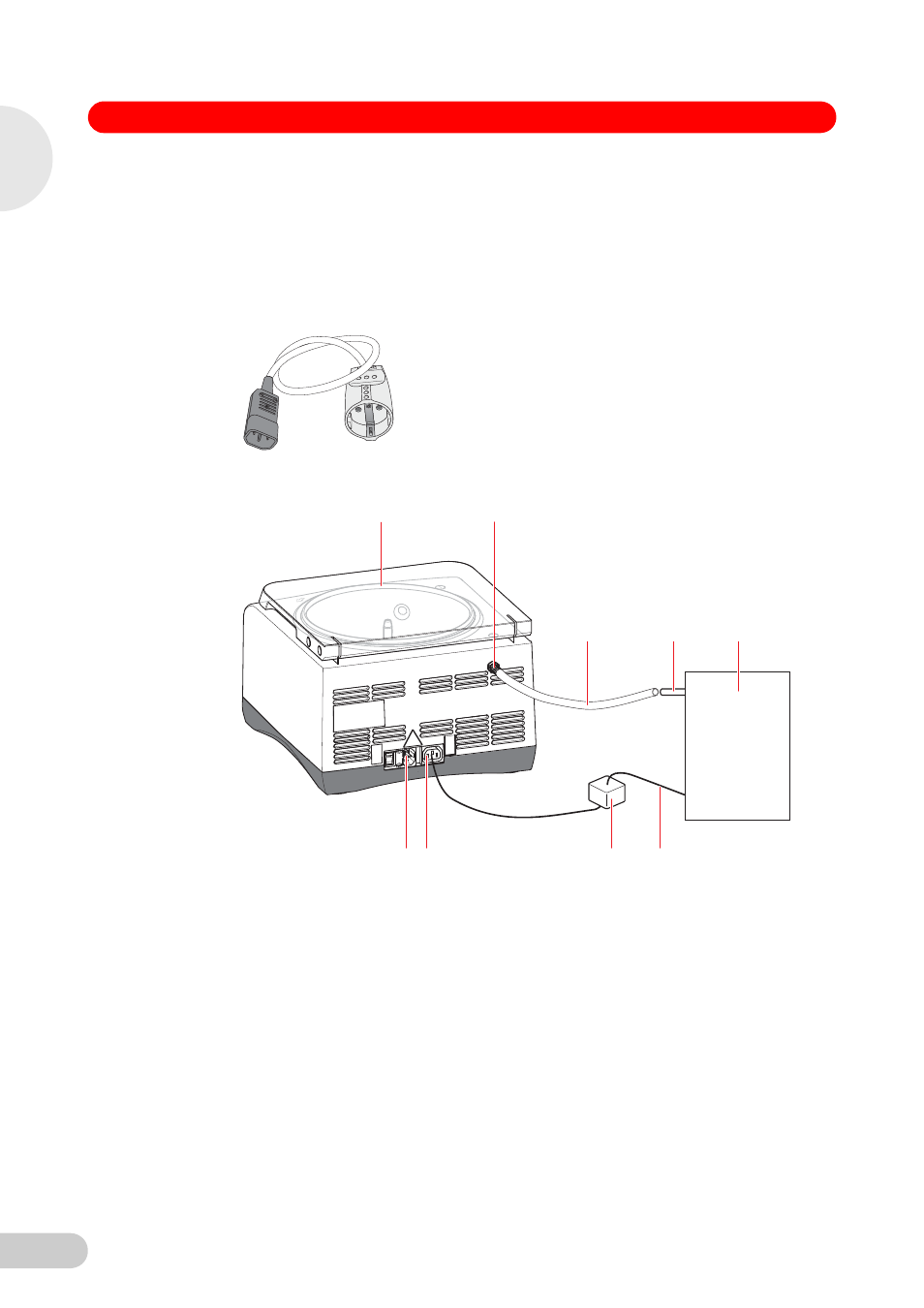

Fig. 2:
Special plug for control and power supply of a vacuum pump with a power
consumption of up to 350 W.
Abb. 3:
Connection of the power consumption for a vacuum pump up to 350 W to the Concentrator plus basic device.
Fig. 3:
Connection of the power consumption for a vacuum pump up to 350 W to the
Concentrator plus basic device.
1. Disconnect the basic device 1 and vacuum pump 5 from the mains power supply.
2. Insert the mains cable of the vacuum pump 6 into the special plug 7.
3. Insert the special plug into the provided socket 8 at the rear of the basic device (connected
mains voltage!).
4. Connect the inlet of the vacuum pump 4 to the pump connection 2 at the rear of the basic
device via a connecting hose 3.
5. Connect the basic device to the mains power supply 9.
3
1
2
4
5
6
7
8
9
